Zen Habitats 48"x24"x16" Assembly Instructions
Parts list:

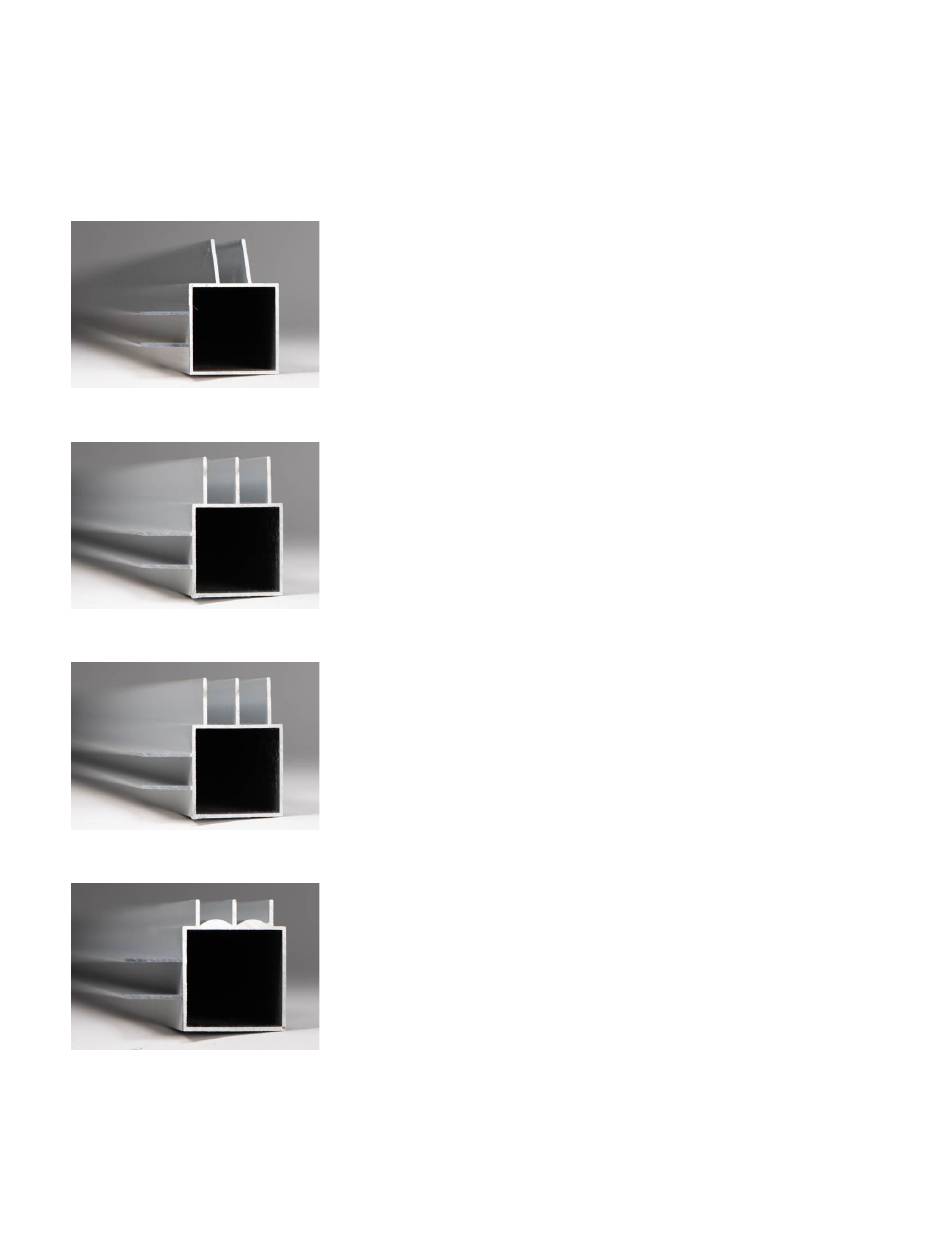

Part A (2) – 46" Aluminum Frame (2 channels at 90-degree angle)
Part B – A (4) – 22" Aluminum Frame (2 channels at 90-degree angle)
Part B – B (2) – 14" Aluminum Frame (2 channels at 90-degree angle)
Part C (2) – 14" Aluminum Side Door Frame (1 channel and 1 double 3/4" door rails)
Part D (1) – 46" Aluminum Top Door Frame (1 channel and 1 double 3/4" top door rails)
Part E (1) – 46" Aluminum Bottom Door Frame (1 channel and 1 double 1/4" bottom door rails.)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Zen Habitats 48"x24"x16" PVC Panel Reptile Enclosure
Summary of Contents for Zen Habitats 48"x24"x16" PVC Panel Reptile Enclosure
- Page 1 Zen Habitats 48”x24”x16” Assembly Instructions Parts list: Part A (2) – 46” Aluminum Frame (2 channels at 90-degree angle) Part B – A (4) – 22” Aluminum Frame (2 channels at 90-degree angle) Part B – B (2) – 14” Aluminum Frame (2 channels at 90-degree angle) Part C (2) –...
- Page 2 Part F (8) – Plastic Corner Connectors (with 3 prongs) Parts List Continued: Part G-A (1) – Wire Grommet Part G-B (1) – Solid Plug Part H (1) – 4’x2’ Galvanized Steel Screen Top with Support Bars Part I (1) – 6”x14” Bamboo Lined PVC Back Panel (with hole) Part J (1) –...
- Page 3 Assembly Video instructions also available at https://www.zenhabitats.com/pages/4x2x2-enclosure-assembly Step 1 – Assemble Bottom • Attach the pressure corners to each end of two 22” aluminum frames (Part B). Make sure that the fingers from the corners align with the channels of the frame. •...
- Page 4 Step 2 – Assemble Back and Sides • Attach the side door frame (Part C) to the pressure corners that align with the bottom door track. SPECIAL NOTE: Make sure the flat end of the double channel is facing down and aligned with the bottom door track. •...
- Page 5 Step 3 – Assemble Top • Attach the pressure corners to each end of two 22” aluminum frames (Part B). Make sure that the fingers from the corners align with the channels of the frame. (see the first photo) • Attach a 46”...
- Page 6 • Attach the other side frame, with the two pressure corners already connected, to the assembled frame. You should now have a rectangle shaped floor with four fingers facing up. • Flip the screen over and insert the four pressure connectors into the frame of the enclosure. Step 4 –...
- Page 7 • Now install the front door and repeat the above process. • Allow the glue to dry before use. Step 9 – Wire Door Lock (optional) • With the doors fully closed, slide the hook side of the wire door lock (Part S) between the doors. •...
