Overview Leto OVU00243 Quick Start Manual

Leto

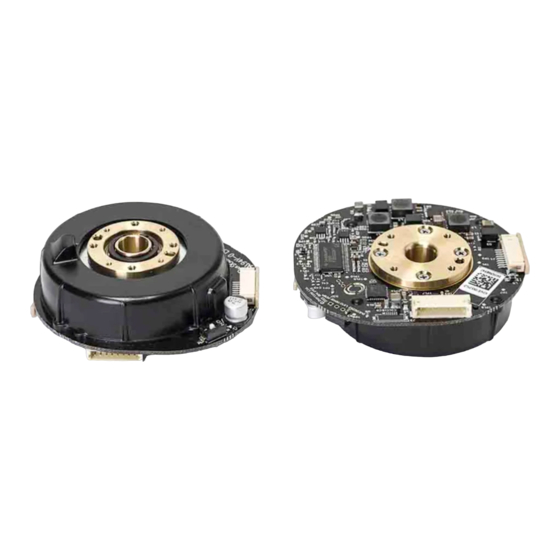

Servotorq™ Integrated Servo Motor
Part No. OVU00243 & OVU00244
Thank you for purchasing Overview's Leto Integrated Servo Motor.
To quickly get up and running with your Leto motor, please refer to the
Technical Manual, the I²C Protocol Guide and Application Notes located at:
Please observe the following precautions when handling and

Reference Information:

When initially powered up, the Leto motor will perform an initialisation routine as
detailed in the Technical Manual. During initialisation, the unit will rotate and
temporarily draw the max rated current.
Overview House Kingswey Business Park Forsyth Road Woking GU21 5SA United Kingdom
© Overview Ltd 2020
http://www.overview.co.uk/technical-support/
operating the Leto motor:
•
The Leto motor uses semiconductors which can be damaged by
electrostatic discharge (ESD). The motor must be handled and
stored in an ESD safe environment.
•
The Leto motor supply voltage is 24V DC, using up to 600mA.
Do not hot-plug the power supply.
•
I²C interface voltage is 3.3V and requires pull-ups to this voltage.
It is not tolerant of higher voltages, e.g. 5V.
www.overview.co.uk
Overview Limited
OVZ20019 Rev 1
