Summary of Contents for Center 326

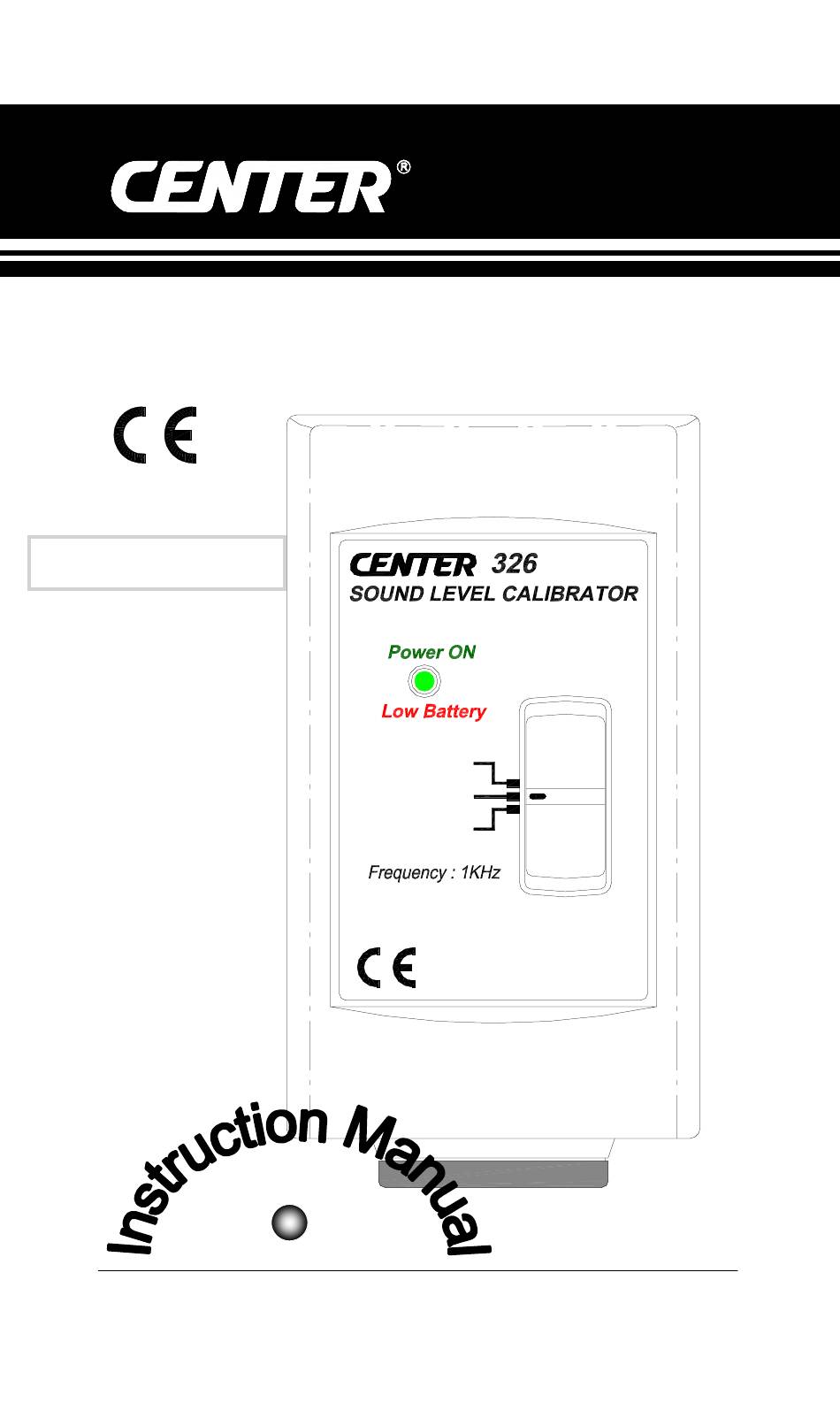

- Page 1 Sound Level Calibrator https://www.faleco.se 94dB 114dB IEC 60942 Class 2 ANSI S1.40 - 1984...
- Page 2 326-00 OCT. 2003...
- Page 3 CONTENTS Title Page 1. Safety Information………………………….. 1 Environment Conditions…………………………………. 1 Maintenance & Clearing…………………………………. 1 Safety symbols…………………………………………… 1 2. Description ……………….….……………… 2 3. Features……………………..…..…………….2 4. Specifications………..……..……………….. 2 Output sound pressure levels…………………………... 2 Output frequency…………………………………………. 2 Reference conditions…………………………………….. 2 Influence of ambient conditions………………………… 2 Total Harmonic Distortion(THD)…………………………...
- Page 4 Sound Level Calibration 1. Safety Information Read the following safety information carefully before attempting to operate or service the meter. Use the meter only as specified in this manual; otherwise, the protection provided by the meter may be impaired. Environment Conditions Altitude up to 2000 meters Relative humidity 90% max.
- Page 5 Sound Level Calibration 3. Features Conforms to ANSI S1.4-1984 and IEC 60942-2003 Class 2. Calibration levels of 94dB and 114dB. Fit 1 inch and 1/2 inch diameter microphone. 4. Specifications Output sound pressure levels: 94dB and 114dB re 20 uPa under reference conditions.
- Page 6 Sound Level Calibration Calibrator will not be operated when green LED turns to red LED, which means that battery voltage falls bellow acceptable range. Dimensions: 113(L)x63(W)x44(H)mm,4.4(L)x2.4(W)x1.7(H)inch Weight: approx. 170g(including battery) Ambient conditions: 0 – 40℃(32 – 140℉), 10 – 90%RH, 650 –1080hpa Storage temperature &...
- Page 7 Sound Level Calibration 5. Nomenclature And Functions 94dB 9V BATTERY NEDA 1604 114dB 6F22 , 006P IEC 60942 Class 2 ANSI S1.40 - 1984 Power and low battery indicate LED. Power and output level select switch. Transducer assembly 1-inch cavity for microphone insertion.
- Page 8 CENTER TECHNOLOGY CORP. http : / / www.centertek.com 326-00...
