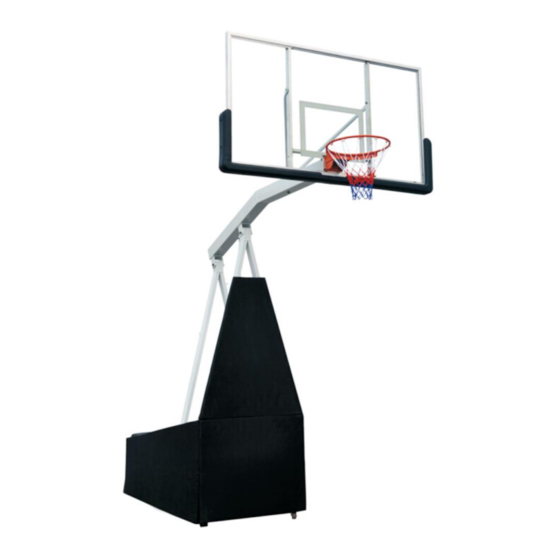

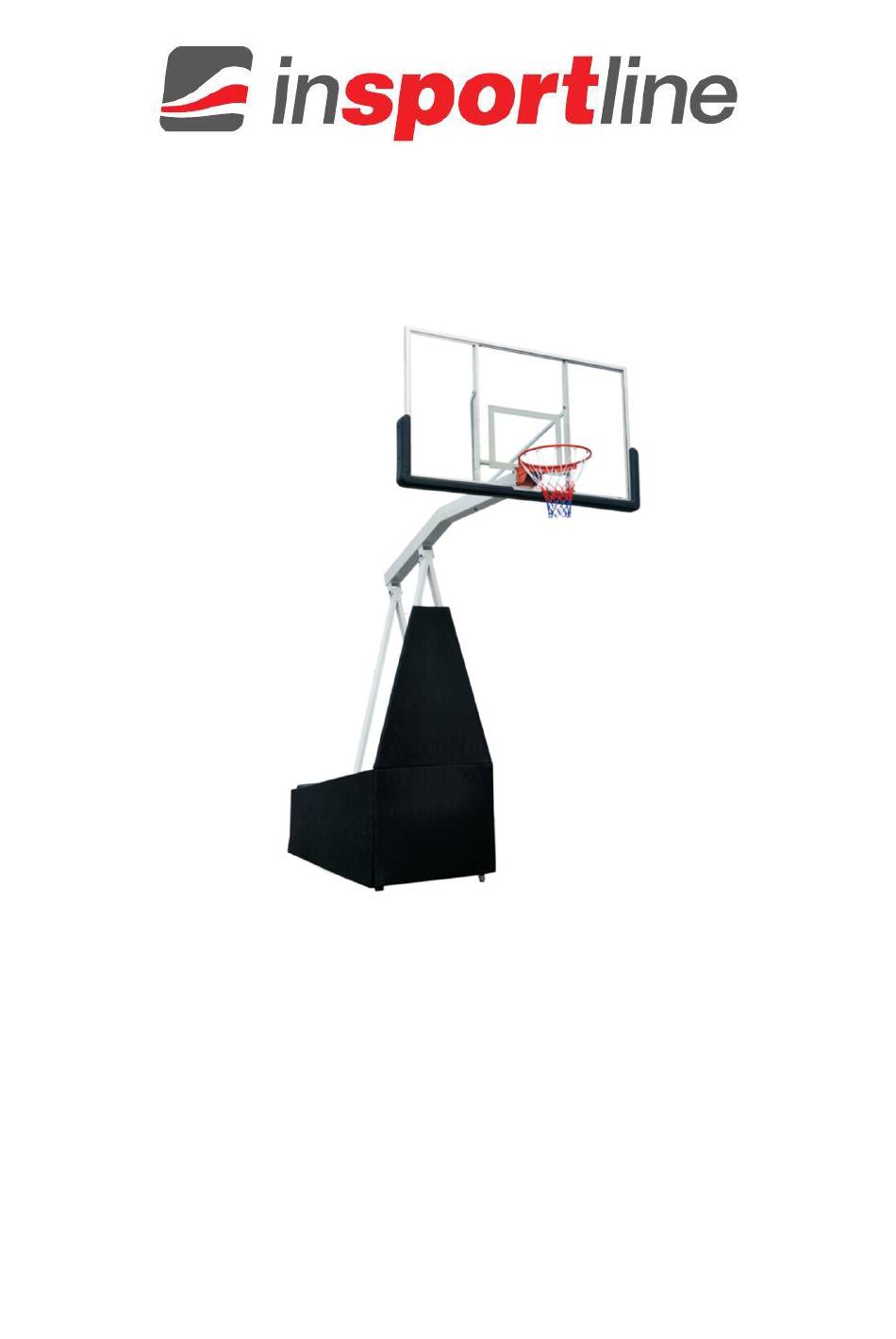

- Page 1 USER MANUAL – EN IN 22369 Basketball basket inSPORTline Portland...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 PARTS LIST ............................4 ASSEMBLY ............................. 7 ENVIRONMENT PROTECTION ......................13 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........13... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Please read the instruction carefully. Remove all parts and hardware from the carton and place them on soft and clean surface. Check that nothing is missing. Please recycle all packaging materials. • Follow the instructions carefully. Failure to follow these instructions may result in serious injury or damage. -
Page 4: Parts List
PARTS LIST Specifications / Name Picture Qty. A 1- Bolt M10x65MM 1: 8 A 1- 2: 2 Bolt M8x45MM Bolt M16x55MM Bolt M16x115MM Bolt M12x110MM Bolt M12x140MM Bolt M12x70MM Bolt M10x40MM Bolt M16x160MM Bolt M10x50MM Bolt M10x80MM Base bracket Lower base beam Upper base beam... - Page 5 Spring pulling rod Spring locating screw Spring Front bracket Rear bracket Main pole Up lift rod Lower lift rod Backboard support pole Backboard...
- Page 6 Fixing block Front pad Side pad Rear pad Upper pad Cover pad Weight rack...
-
Page 7: Assembly
ASSEMBLY WARNING! Assembly can only be performed by an adult. 4 adults are recommended for installation. Step 1 Align the two frames B. Step 2 Attach frames C1 to frame B with 8x bolts A1. Do not tighten the bolts yet, the construction must have movement. Step 3 Attach frame C2 to frame B with 2x bolts A2. - Page 8 Step 5 Attach the front frame G1 to the frame B with 2x bolts A3. Make sure that the fixing block on the frame points backwards, see. picture.
- Page 9 Step 6 Attach the rear frame G2 to the frame B with 2x bolts A3. Make sure the fixing block on the bottom of the frame face forward. Step 7 Attach springs F see. picture. Hook the six springs F into the rear frame G2 and the spring frame D. Then stretch the frame D as much as possible and secure with nuts.
- Page 10 Step 8 Pull the frame G2 as far back as possible and secure it to the frame C2 with a strong rope or twine. Be careful, sudden release can cause serious injury or death. Attach the main pillar H to the frame brackets G2 and G1 with 2x bolts A4. Step 9 Use bolt A11 to attach the height adjustment rod I1 to the front frame bracket G1, and then insert the rod I2 into the rod I1.
- Page 11 Step 11 Attach bolt A7 to the front of the frame H. With this bolt you can adjust the vertical position of the board. Step 12 Remove the two bolts and springs from the rim L and then connect the rim L to the board K with 4x bolts A8 and plate M.
- Page 12 Step 14 Attach the weight holder T to the frame B. The basket must have a weight with a total weight of 350 Step 15 Attach covers O, P, Q, R, S see. picture. Step 16 Loosen the rope that connects the G2 and C2 frames. Once the holes in the lifting bars I1 and I2 align, connect them with bolt A1.
-
Page 13: Environment Protection
After mounting, you can adjust the springs F using the frame D and bolts E. Prior to use, make sure that you have tightened all bolts and nuts. ENVIRONMENT PROTECTION After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the local laws and environmentally friendly in the nearest scrapyard. - Page 14 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk...
