Insportline IN 10664 User Manual

Portable basketball l system
Hide thumbs

Advertisement

Quick Links

Download this manual

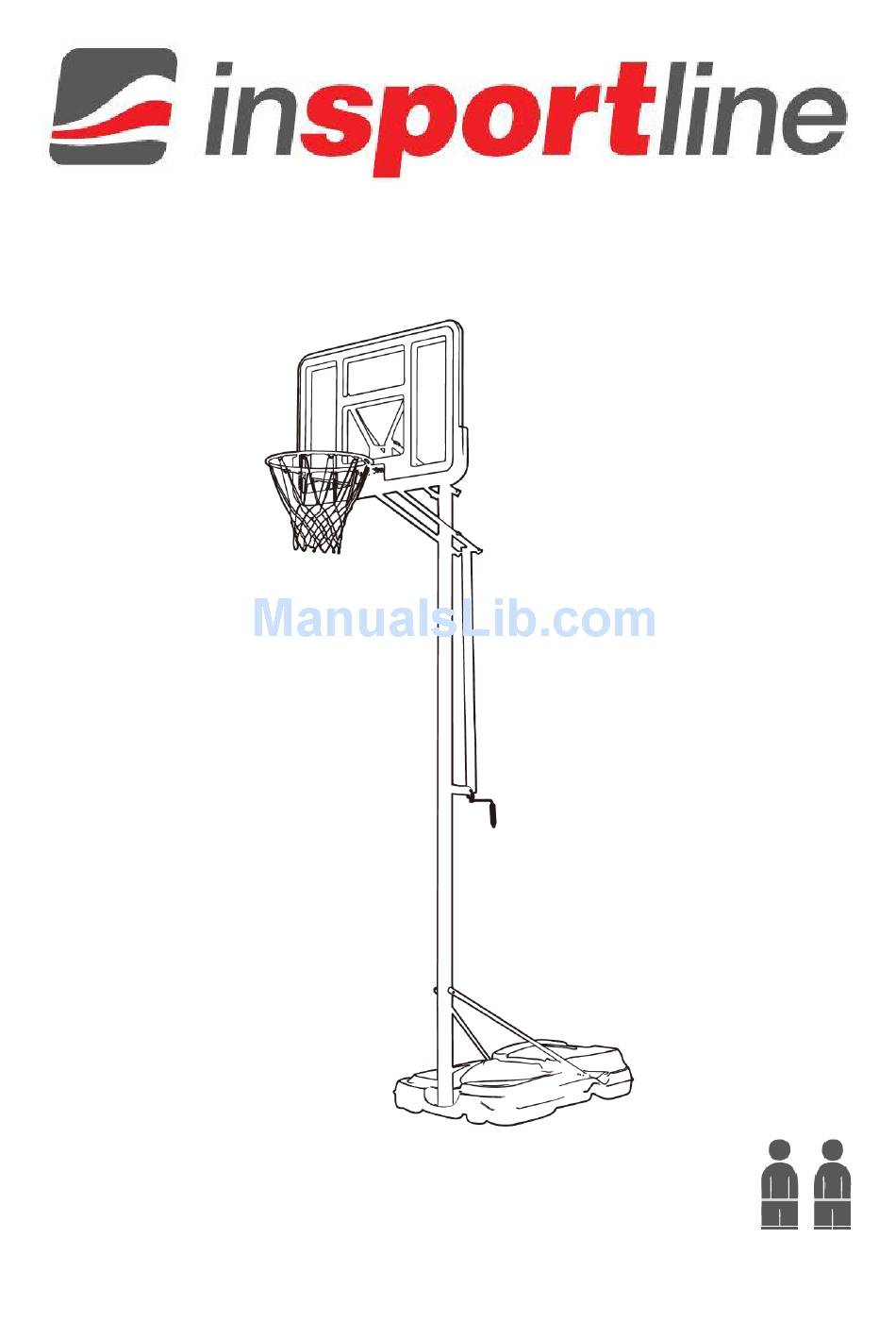

USER MANUAL – EN
IN 10664 Portable Basketball L System inSPORTline Orlando
TWO ADULTS
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the IN 10664 and is the answer not in the manual?

Questions and answers

Related Manuals for Insportline IN 10664

Summary of Contents for Insportline IN 10664

  • Page 1 USER MANUAL – EN IN 10664 Portable Basketball L System inSPORTline Orlando TWO ADULTS...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ............................ 3 PARTS LIST ................................4 HARDWARE................................5 REQUIRED TOOLS ............................7 PRECAUTIONS ..............................7 ASSEMBLY ................................8 TRANSPORT ............................... 14 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ............15...

  • Page 3: Safety Instructions

    PREPARATION PLEASE READ THIS PAGE CAREFULLY Remove all parts and hardware from the carton and place them on a carton and place them on a clean soft surface. Check carefully to make sure nothing is missing. Dispose of all packaging materials properly. Please recycle.

  • Page 4: Parts List

    PARTS LIST A Backboard B Rim/Net C Base D Bottom Pole E Middle Pole F Top Pole G Support arm H Wheels I Wheels Axle J V-Bracket...

  • Page 5: Hardware

    K U-Bracket M Top Pole Cap O Lower Arms (Long) P Upper Arms (Short) L Height Adjuster Cap N Spring Q Height Adjuster R Plastic Mat (short) S Height Adjuster Handle T Plastic Mat (long) U Bracket Tube HARDWARE V Lock Nut W Washer X Spring Cap V-1 M5...
  • Page 6 V-4 M12 W-3 M10 W-4 M12 1 M10x90mm 2 M8x16mm 4 M8x100mm 6 M12x180mm 3 M8x20mm 5 M8x40mm 7 M8x65mm 8 Cross-head screw 9 M8x90mm...

  • Page 7: Required Tools

    REQUIRED TOOLS Adjustable Spanner Wrenches (size) PRECAUTIONS DO NOT Keep your face and mouth away from the rim and net Do not hang from the rim. during play. If your teeth or face come into contact Do not wear jewellery during play, it may become with the rim and net, serious injury can occur.

  • Page 8: Assembly

    ASSEMBLY STEP 1 Fill some of water or sand before assembling, it better to be sand. 1. Attach the bottom pole (D) and wheels (H) into the groves of the base (C). Using the axle (I) through them to secure. 2.
  • Page 9 STEP 2 1. Attached the middle pole (E) to bottom pole (D) straightly. 2. Secure the U-Bracket (K) on the middle pole (E) at the joint by two bolts (9) through four washers (W- 2) and two nuts (V-2).
  • Page 10 STEP 3 Please make sure the bracket is in correct position before tightening it with backboard! 1. Attach the rim (B) and V-Bracket (J) on the backboard (A) by using two spring sets (X/N) and four bolts (4), (5), through six washers (W-2) and four nuts (V-2). 2.
  • Page 11 STEP 4 NET AND RIM ASSEMBLY: Find loops at top edge of net (B-2). Hook one loop over and around center of rim hook (B-1). Pull loop down to secure loop within rim hook. Repeat for remaining net loops. 1. Attach the upper arms (P) on the V-Bracket, using a bolt (6) through two washers (W-4), two plastic mats (R), one bracket tube (U) and one nut (V-4).
  • Page 12 STEP 5 1. Attach the upper arms and lower arms (P/O) on the top pole by using two bolts (6) through four washers (W-4), four plastic mats (R) and two nuts (V-4). 2. Attach the height adjuster (Q) on the lower arms (O) by using a bolt (6) through two washers (W-4), two plastic mats (T) and a nut (V-4).
  • Page 13 STEP 6 Adjust the height adjuster to a suitable height in order to connect the height adjuster and U-Bracket properly. 1. Attach the height adjuster (Q) onto the U-Bracket (K) by using a bolt (7), through two washers (W-2) and a nut (V-2). 2.

  • Page 14: Transport

    STEP 7 WARNING: • Two capable adults required for this step. • NEVER leave system in upright position without proper weight in base or the system will tip over. • Manufacturer recommends using sand. If using water, see SAFETY INSTRUCTIONS: WARNING. 1.

  • Page 15: Terms And Conditions Of Warranty, Warranty Claims

    TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil Code, Act No. 513/1991 Coll., Commercial Code, and Act No.
  • Page 16 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.insportline.cz INSPORTLINE s.r.o. Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.insportline.sk...
