TECHNICAL DATA SHEET

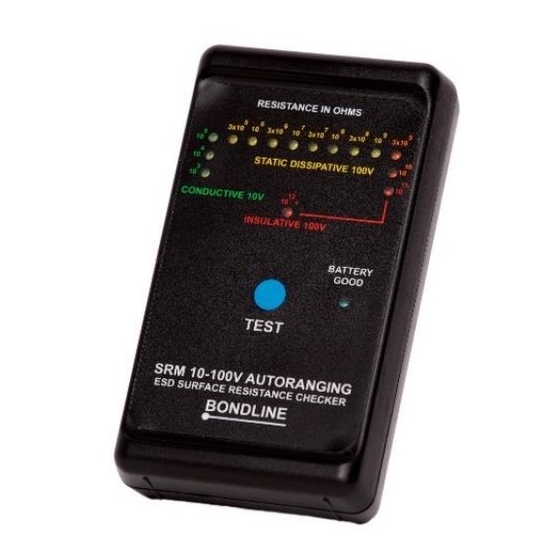

Half Decade Surface Resistivity Meter
Description: Ideal 10v-100v point to point instrument for
Testing and auditing all elements within the EPA is essential
to comply with industry standards.
Incorporating the latest requirements of the IEC 61340-5
technical report whilst maintaining the requirements of the EN100 015/1 European standard.
The SRM100 and the SRM100K, have been designed specifically for the purpose of testing surface used in
the EPA. The unit can measure in Ohms Per Square or connecting the two leads from to the two 3.5mm
connection points to 2 x 2.5Kg weights to measure point to point resistance.
The SRM100K, kit includes 2 x 2.5kg weights, connecting leads and a unique logarithmic reading system,
divided up into easy to read coloured LED's. An Automatic Auto ranging 10v and 100v test voltages are
incorporated in the tester cleverly detected as you move from Conductive to Dissipative and Insulative
surfaces.
FEATURES
Methods of
Measurement
LED Indicators
Accuracy
Dimensions
Weight
Power
Connections
Test Range
Test Voltage
Dissipative Range
Probes
Standards
Protection
Product Code
SRM100K
SRM100
TECHNICAL DATA SHEET
www.bondline.co.uk
Tel: +44(0)1793 511000 Email: sales@bondline.co.uk
Surface Resistivity: (OhmsΩ per square)
Point to Point Resistance: (OhmsΩ per square)
3
5
10
to 10
= Green (conductive)
5
9
3 x 10
to 10
= Yellow (Dissipative)
9
10 =
3 x 10
to 10
= Orange (Dissipative)
12+ =
10
Red (Insulative).
+/- 0.5 Decade in Conductive Range
+/- 0.25 Decades in Dissipative Range
Method of operation :- Push button
70mm x 130mm x 35mm
103g
Battery operated PP3 9 volt
2 x 3.5mm jack plug for earth connection
3
12+
10
to 10
(1K to 1T) Displayed in ½ decade
Nominal 10 volts to 100 volts
5
9
3 x 10
to 3 x 10
1/2 Decade between each decade on a logarithmic scale.
5
Example: 1 x10
x 3.21 = 3 x 10
Standard Tin Copper Mesh, 52mm length
BS EN 61340-5 IEC 613340-5-1/2 and EN100015/1 (European)
Supplied with carry case
Full Test Kit: tester, weights, foam and test leads
Surface Tester, with 9V battery
www.bondline.co.uk
Tel: +44(0)1793 511000 Email: sales@bondline.co.uk
5
(1/2 Decade Measurement) x 3.21 = 1 x 10
SRM100
SRM100 – Custom Logos
available on request or
SRM100NL is supplied
unbranded
6
Calibration
required annually.
SRM100
