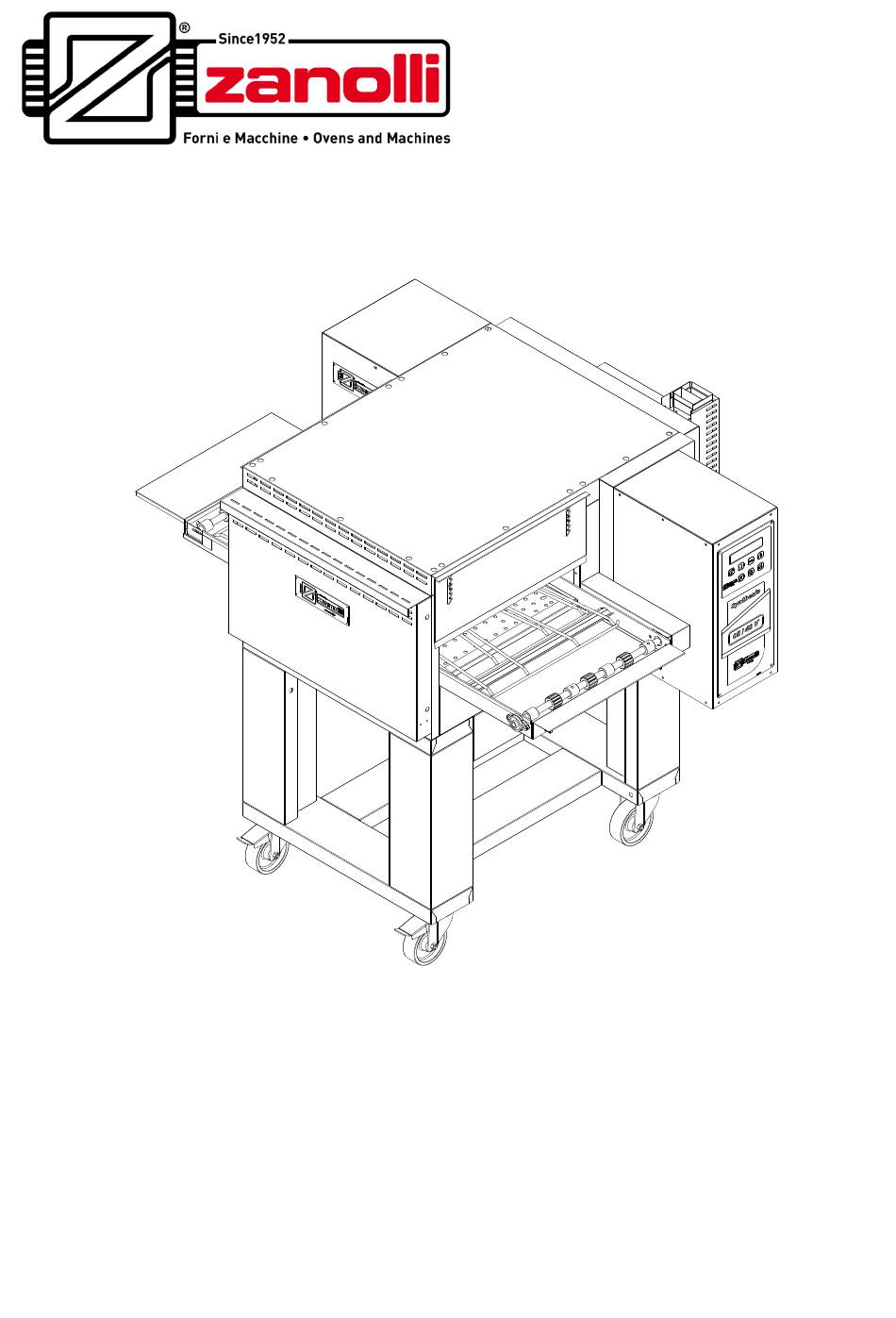

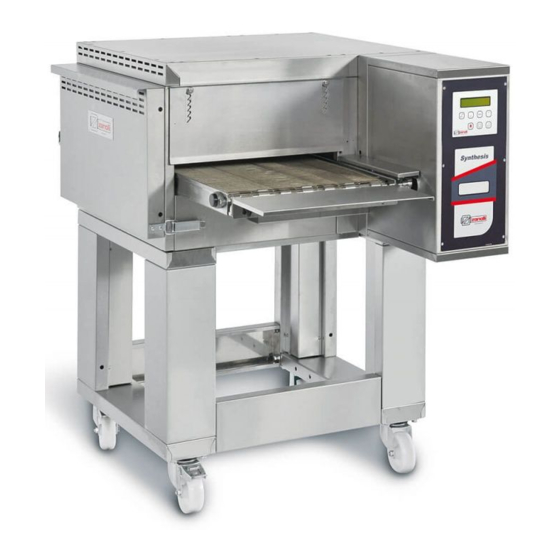

- Page 1 DR. ZANOLLI s.r.l. Via Casa Quindici, 22 37066 Caselle di Sommacampagna (Verona) Italy Tel +39 045 8581500 (r.a.) Fax +39 045 8581455 Web: www.zanolli.it · e-mail: zanolli@zanolli.it SYNTHESIS 06/40V GAS Tunnel convection oven Installation, use and maintenance manual...
- Page 2 Dr. Zanolli s.r.l. Via Casa Quindici, 22 37066 Caselle di Sommacampagna VR Tel. +39-0458581500 Fax +39-0458581455 VAT N.IT00213620230 Synthesis 06/40V gas English manual cod. SY0640.G.D.UK.12 rev. 0.1 del 09/07/2013...
-
Page 3: Table Of Contents
“OVER 2” .................. 24 5.6.2 “OVER” ..................25 5.6.3 “BELT” ..................25 5.6.4 “FAN” ..................25 5.6.5 “PRESS” ................... 25 5.6.6 “FLAME” ................... 26 5.6.7 5.6.8 "BATTERY" ................26 6.USE ..........................27 PREPARATION FOR USE AND BEFORE TURNING ..... 27 Synthesis 06/40V GAS... - Page 4 Adjustment of minimum power ..........34 8.4.3 Application of new label ............34 WIRING DIAGRAM ................34 EXPLODED VIEWS AND LIST OF SPARE PARTS ......36 9.DECOMISSIONING AND DEMOLITION ............ 43 10. DECLARATION OF CONFORMITY ............44 Synthesis 06/40V GAS...
-
Page 5: Introduction
INTRODUCTION 1. INTRODUCTION The gas conveyor ovens mod. Synthesis 06/40V gas have been designed mainly for the automatic cooking of pizza and similar products. They are conveyor ovens. Favourable peculiarity of these particular ovens is that it is possible to make excellent baking, without controlling the same. -
Page 6: How To Use This Manual
Chapters 5 e 6 give the final user the necessary instructions for switching on, operation and the turn off of the oven in safety conditions. contains some useful advices for the use of the oven. Synthesis 06/40V GAS... - Page 7 Service and maintenance must be performed by skilled personnel only. Charter 9 gives directions for dismantling the oven. Charter 10 facsimile declaration of conformity. Synthesis 06/40V GAS...
-
Page 8: Specifications
3.3 FORESEEN RANGE OF USE The gas conveyor oven mod. Synthesis 06/40V is designed to cook pizza, or similar products. Synthesis 06/40V gas is intended for professional use in the catering industry (restaurant, pizza shop, etc..) by trained personnel only. -
Page 9: Technical Specifications
SPECIFICATIONS 3.4 TECHNICAL SPECIFICATIONS On the following tables you can find all technical specifications of the gas conveyor oven. Unit of Synthesis 06/40V GAS meas. Weight Overall dimensions 1030x1300x440 Conveyor width 1070 Conveyor length Chamber length 10-8.5 (30-25 pizze/h ø 30 cm) - Page 10 SPECIFICATIONS Unit of Synthesis 06/40V GAS meas. Consumption Nominal thermal capacity 0,952 Consumption G20 1,108 Consumption G25 Consumption G30 0,71 Kg/h Consumption G31 0,699 Kg/h Reduced thermal capacity Consumption G20 0,476 Consumption G25 0,554 Kg/h Consumption G30 0,352 0,350 Kg/h...
-
Page 11: Installation
The appliance must be installed at least 20cm from the walls of the room or from other equipment so that the ventilation outlets located on the sides of the oven are not obstructed. Synthesis 06/40V GAS... -
Page 12: Location Specifications For The Installation Of Gas Ovens
(Fig 1). To avoid damage, place protective material between the forks and the unit. In all situations, to avoid unpredictable movement, be aware of the equipment’s centre of mass. Synthesis 06/40V GAS... -
Page 13: Positionig The Unit On Its Base
(see Table 3-1). Plugs and sockets for industrial use of the type CEE17 are suitable or those which satisfy European norm EN 60309. Synthesis 06/40V GAS... -
Page 14: Connecting The Gas
This oven produces waste gasses classified as type “A1” (see Tab. 3.1): equipment not intended for connection to a chimney or flue or a device for the evacuation of the combustion residue into the open air from the room in which the Synthesis 06/40V GAS... - Page 15 Be aware of the total nominal heat input of the ovens housed in each room in a situation in which more than one unit is being installed. The manufacturer cannot answer for damage caused by ignoring these abovementioned norms as well as the information in this manual. Synthesis 06/40V GAS...
- Page 16 G= ENTRY POINT FOR POWER SUPPLY H= ENTRY POINT FOR GAS S= COMBUSTION FUMES EXHAUST Fig. 5-1 Connection for electrical and gas supply, exhaust for a single cooking unit and a maximum of three cooking units stacked one on top of another. Synthesis 06/40V GAS...
-
Page 17: Checking Before Starting Work
If present, check that the ventilation hood is working. Synthesis 06/40V GAS... -
Page 18: Operation
OPERATION 5.OPERATION 5.1 CONTROL PANEL Oven on-off key Parameter value decrease key Programme access key Parameter value increase key Conveyor start/stop key Automatic switching on-off key Reset key Synthesis 06/40V GAS... -
Page 19: Functional States Of The System
When the oven is off, the rear illumination on the display is also off. This turns on when programming is started. In the ON position the main contactor is activated, the fan turns on and the oven heats up. The display is illuminated from behind and indicates: Synthesis 06/40V GAS... -
Page 20: Settings
When the oven is on, the conveyor can be adjusted manually to reach maximum speed by pressing the key for 4 seconds. (Fig.2). Press the same key again to return to the previous setting. See the “Programming” paragraph to set the cooking time. Synthesis 06/40V GAS... -
Page 21: Programming
If no key is pressed for more than 5 seconds, the displayed value is memorised and the oven automatically leaves the programming mode. During programming keys deactivated. The order of programming is as follows: 1) Cooking time 2) Temperature Synthesis 06/40V GAS... -
Page 22: Setting The Current Time
“setting the current time”) and confirm the data until: appears on the display.(Fig.5) Adjust and confirm using the same procedure as for setting the clock. By confirming, you leave the programming mode and return to the previous mode. Synthesis 06/40V GAS... -
Page 23: Programming Of Switching On
(Fig. 5). If the ignition is turned off, instead of the day and time the message appears "off". Synthesis 06/40V GAS... -
Page 24: Switching Off The Oven
“OVER 2” and the alarm sounds intermittently. The alarm can be switched off by pressing the key The oven continues working and only probe 1 is used to measure the temperature. The control temperature is automatically raised by 40°C. Synthesis 06/40V GAS... -
Page 25: Over
To reset the functioning of the oven, check that the pressure regulator is working properly. To do this, check that the pipes are connected without any constriction. If necessary, adjust the calibration with the screw located at the centre of the pressure regulator. The buzzer can be silenced by pressing the key Synthesis 06/40V GAS... -
Page 26: Flame
When the buffer battery installed on the main electronic board is exhausted, an alarm is activated on the display together with the flashing writing "Battery" and the acoustic signal plays in intermittent way. To replace the battery see paragraph 8.3. Synthesis 06/40V GAS... -
Page 27: Use
Anyway, it may happen that a failure occurs during the first starting trial, due to the presence of air in the gas pipes. Wait 5 minutes and press again on reset button (Fig. 5) to activate the burner. Synthesis 06/40V GAS... -
Page 28: How To Turn Off The Oven
10-20°C and doesn’t raise again until the raw product is put into the oven at a lower rate, or the baking time is increased. When there are no products to bake, but you want to keep the temperature, it is advisable to decrease the temperature of 30°C. Synthesis 06/40V GAS... -
Page 29: Cleaning
Do not use jets of water, as they could penetrate the switchboard and create a danger of electrocution and/or sudden start-up of the equipment. Remember that oven off is always connected to the board by the electronic board. Synthesis 06/40V GAS... -
Page 30: Cleaning The Baking Chambers
After cleaning the equipment reassemble all the components by following the instructions above in reverse order. It is recommended to clean the oven after it has been in operation for more than 200 hours.. Synthesis 06/40V GAS... -
Page 31: Maintenance
Since the safety thermostat is activated only in case of serious damages (for instance if the gas valve ON/OFF is blocked open), before starting the oven again check carefully the good working of the same and perform the required reparations. Synthesis 06/40V GAS... -
Page 32: Replace Battery
(see paragraph 5.4.1). Then disconnect the oven from the main power and connect it again. This operation permits to reset the base board and delete any other alarms in memory. Synthesis 06/40V GAS... -
Page 33: Adjustment To Different Gas Type
Take down the burner after having disconnected the gas pipe and the electric wiring. Unscrew the burner pipes and then the injectors, and replace them with the new ones. Repeat the above operations in reverse, checking carefully the tightening of nozzles and of gas feeding pipes. Synthesis 06/40V GAS... -
Page 34: Adjustment Of Minimum Power
(the adapting kit, with new label, instructions and nozzles, is supplied according to the gas type and pressure). 8.5 WIRING DIAGRAM La Fig. 10-1 shows the wiring diagram of the conveyor oven Synthesis 06/40V gas. Synthesis 06/40V GAS... - Page 35 MAINTENANCE Fig. 10-1 Wiring diagram for synthesis 06/40V gas 230 Vac. ~ 1+N 50-60Hz Synthesis 06/40V GAS...
-
Page 36: Exploded Views And List Of Spare Parts
The exploded drawings of reference for the components of carpentry are Fig. 10-2 and Fig 10-3. The reference figures for the electrical components and the group burners are Fig. 10-4, Fig 10-5, Fig 10-6. Synthesis 06/40V GAS... - Page 37 MAINTENANCE LIST OF SPARE COMPONENT PARTS COMPONENTS OF CARPENTRY CODE POS DESCRIPTION Synthesis 06/40V gas Panel burner housing CART0274 Carter burner CART0273 CARP1884 Combustion chamber Cofferdam CARP1872 Oven top FIAN0462 Rear Panel FIAN0466 Fan primary VENT0001 Ventilation motor casing FIAN0457...
- Page 38 MAINTENANCE FIG. 10-2 Exploded view Synthesis 06/40V gas components of carpentry Synthesis 06/40V GAS...
- Page 39 MAINTENANCE FIG. 10-3 Exploded view - Conveyor Synthesis 06/40V gas Synthesis 06/40V GAS...
- Page 40 MAINTENANCE LIST OF SPARE ELECTRICAL PARTS FOR SYNTHESIS 06/40V GAS ELET0155 Display Card ELET0003 Transformer MOTO0052 Conveyor motor (Transtecno) MOTO0004 Conveyor motor (Automec) ELET0134 Flame control ELET0212 Base board ELET0480 Contactor 20A ELET0156 Toroidal Transformer for Display Card ELET0213 Electronic board Conveyor...
- Page 41 Grid Security fan cooling VENT0024 Fan cooling PANN0379 Serigraph Panel ELET0153 Push button FLTR0004 Filter fan cooling MOTO0034 Fan motor (50 Hz) MOTO0077 Fan motor (60 Hz) ELET0130 (Honeywell) Thrust meter ELET0641 + SUPP0413 Thrust meter + Holder FIG. 10-5 Synthesis 06/40V GAS...
- Page 42 (50 Hz) ELET0478 Coil connector for solenoid valve (50Hz) GASI0060 Gas valve (50 Hz) ELET0612 Modulating coil connector for solenoid valve (60Hz) GASI0101 Gas valve (60 Hz) ELET0611 Coil connector for solenoid valve (60Hz) FIG. 10-6 Synthesis 06/40V GAS...
-
Page 43: Decomissioning And Demolition
In any case do not dispose of it in the environment. Separate collection. This product must not be disposed of with normal household waste. Local regulations may provide for separate collection of this kind of product. Synthesis 06/40V GAS... -
Page 44: Declaration Of Conformity
DECLARATION OF CONFORMITY 10. DECLARATION OF CONFORMITY Synthesis 06/40V GAS...
