Jaypro Sports PBS-10 Assembly Instructions

OPTIONAL ANCHOR
SEE *NOTE
5
2
1
3
DETAIL A-A
SEE DETAIL
'A-A'
8
7A, 7B, 7C OR 7D
PLEASE NOTE:
1) FOR SAFE OPERATION AND CONTINUED
HIGH PERFORMANCE FROM THIS
EQUIPMENT, INSPECTION AND
MAINTENANCE MUST BE PERFORMED
BEFORE EACH USE.
2) USE OF THIS EQUIPMENT OTHER THAN
INTENDED MAY BE HAZARDOUS.
3) ALTERATION OR MODIFICATION OF
EQUIPMENT MAY BE HAZARDOUS.
FOR REPAIR OR REPLACEMENT, PLEASE
CALL YOUR DEALER.
76 1/2"
CTR TO CTR
9"
78"
CTR TO CTR
9"
6
DRAWN BY:
JAYPRO JAYPRO
PRODUCT NAME:
SPORTS
SPORTS

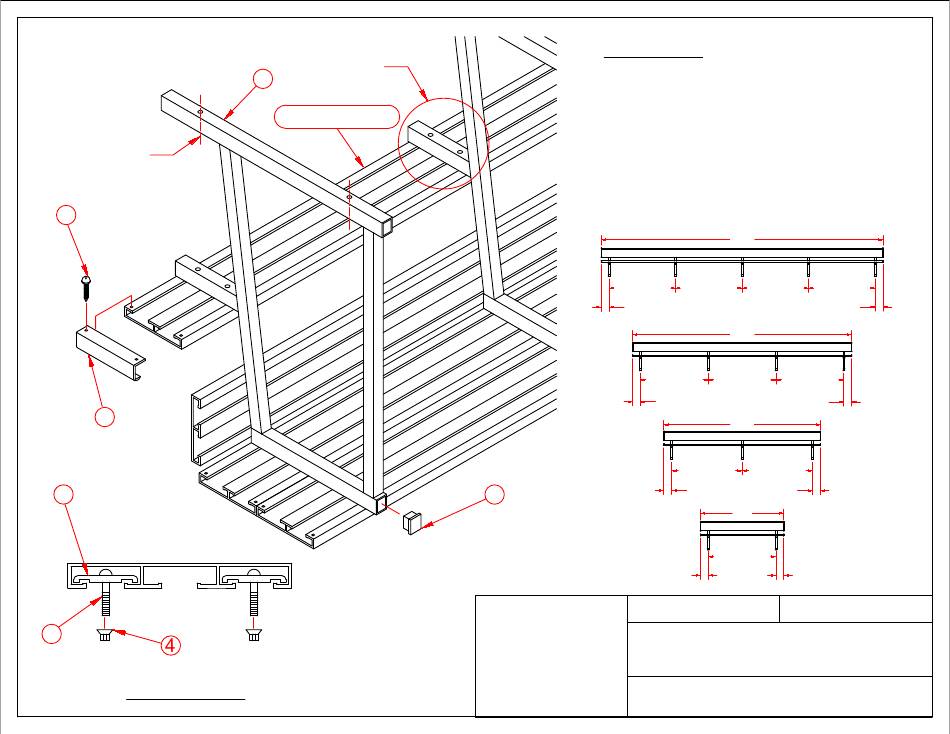

PLAYER BENCH WITH SHELF
976 HARTFORD TURNPIKE
WATERFORD, CT 06385 USA
MODEL. NO:
PHONE (800) 243-0533
FAX (800) 988-3363
PBS-10/PBS-20/PBS-80/PBS-90
WWW.JAYPRO.COM
27'-0"
76 1/2" 76 1/2" 76 1/2"
CTR TO CTR CTR TO CTR CTR TO CTR
PBS-90 9"
21'-0"
78" 78"
CTR TO CTR CTR TO CTR
PBS-10
9"
15'-0"
81" 81"
CTR TO CTR CTR TO CTR
9" 9"
PBS-20
8'-0"
78"
CTR TO CTR
9" 9"
PBS-80
DATE: 6/5/2019
J.A. / A.T./M.T.
