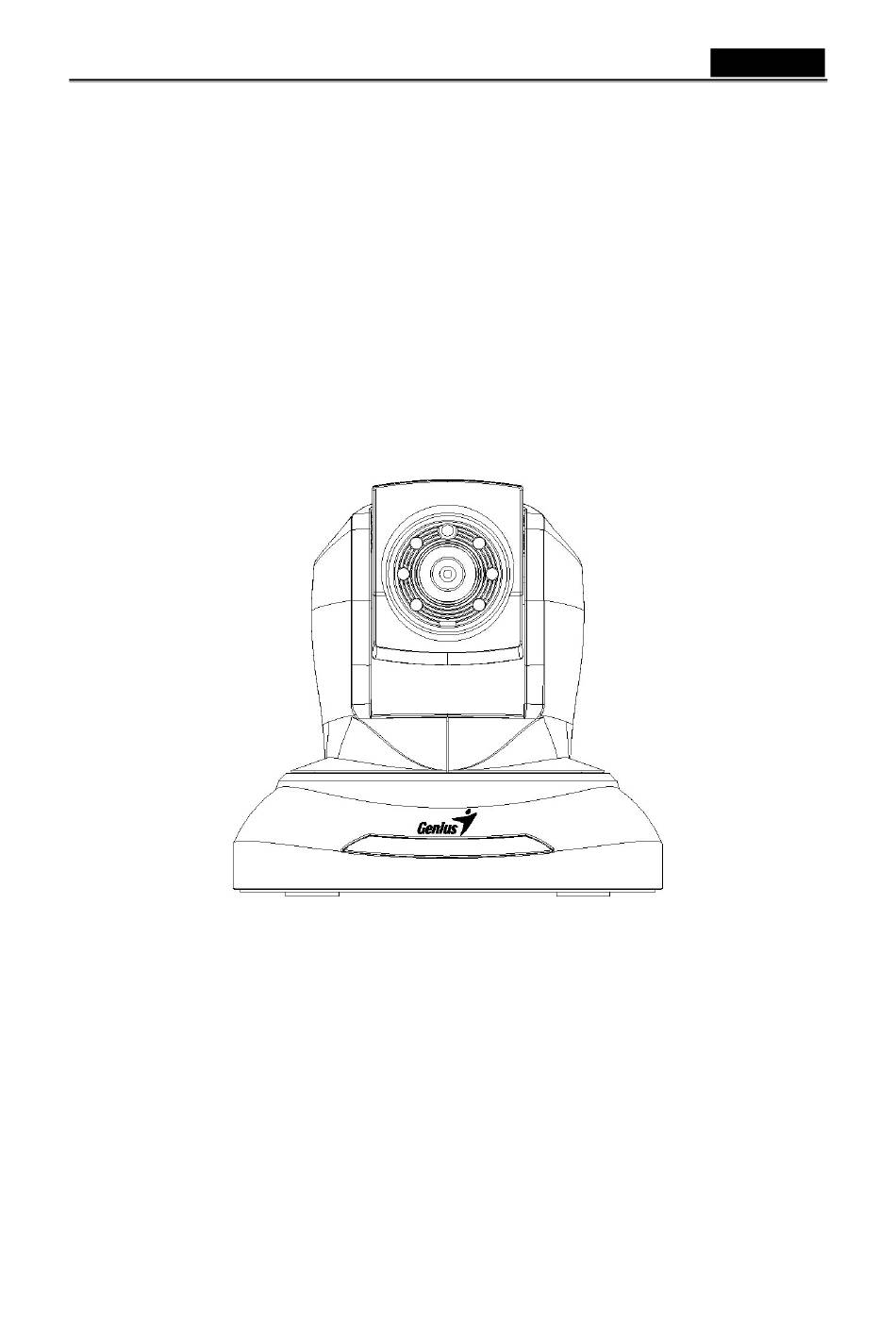

  • Page 1 English IPCam 350TR Pan/Tilt Infared LED User’s Manual Version 1.0...

  • Page 2: Table Of Contents

    English Table of Contents Before You Use This Product....................3 Package Contents....................... 4 Connection .......................... 4 Hardware Installation ......................6 Software installation......................8 PTCam IP Finder ......................8 16-CH Recording Software..................10 Install the Camera behind a NAT Router................11 Initial Access to the Network Camera................13 Web Configuration ......................

  • Page 3: Before You Use This Product

    English Symbol for Separate Collection in European Countries This symbol indicates that this product is to be collected separately. The following apply only to users in European countries: This product is designated for separate collection at an appropriate collection point. Do not dispose of as household waste. For more information, contact the retailer or the local authorities in charge of waste management.

  • Page 4: Package Contents

    English Package Contents If any of the above items are missing, contact your dealer immediately. 1. IPCam 350TR IP Camera 2. Software CD 3. Power adapter 4. Quick installation guide 5. Bracket NOTE Using a power supply with a different voltage than the one included with the Network Camera will cause damage and void the warranty for this product.
  • Page 5 English LAN Socket DC power Jack Light sensor Infrared LEDs Microphone LED Indicator Factory default reset button...

  • Page 6: Hardware Installation

    English Hardware Installation 1. Attach the Network Camera with the included stand 2. Place the Camera on the table or fix it onto ceiling or wall Use screws to fix the Network Camera into the ceiling or a wall. You can also place the Network Camera on the table directly.
  • Page 7 LED will turn on and green LED will flash every second. It means that the system is booting up successfully. When factory reset is completed, the IPCam 350TR will be set to default value. The IP address will also return to the default setting as 192.168.0.99 when DHCP is off.

  • Page 8: Software Installation

    If the program is not on auto-run, go to the root directory of the software CD and click on “autorun.exe”. The PC’s IP address must correspond with the IPCam 350TR’s IP address in the same segment for the two devices to communicate. Therefore, if your PC’s IP address does not correspond with the IPCam 350TR’s IP address, you must modify your PC’s IP address.
  • Page 9 IP Finder is used to search the IP address of Network Cameras or Video servers on a LAN. 1. To set PC’s IP address in the same segment with the IPCam 350TR’s IP address. 2. Connect IPCam 350TR to a PC, then press Search to search. Video Servers or Network Cameras will be located by the IP Finder.

  • Page 10: 16-Ch Recording Software

    6. Make sure all the settings are correct and then click “Re-Start”, the Network Camera will restart the system to validate the new setting after a few seconds. 16-CH Recording Software The 16-CH recording Software of IPCam 350TR is from PowerView Soft. Refer to PowerView Soft IP Surveillance Software User’s Manual in CD.

  • Page 11: Install The Camera Behind A Nat Router

    English Install the Camera behind a NAT Router The Network Camera can be used with a router. This section explains how to view the camera from either the Internet or from inside your LAN. If the Network Camera was installed on the LAN with a router, then it can get a dynamic IP address from the DHCP server.
  • Page 12 English NOTE Because a dynamic WAN IP can change from time to time depending on your ISP, you may want to obtain a Static IP address from your ISP. A Static IP address is a fixed IP address that will not change over time and will be more convenient for you to use to access your camera from a remote location.

  • Page 13: Initial Access To The Network Camera

    English Initial Access to the Network Camera 1. For the initial access to the Network Camera in Windows, the web browser may prompt for permission to install a new plug-in for the Network Camera. Permission request depends on the Internet security settings of the user’s PC or notebook. If the highest security level is set, the computer may prohibit any installation and execution attempt.
  • Page 14 English...
  • Page 15 English...
  • Page 16 English 2. The default Administrator’s password is blank and the Network Camera initially will not ask for any password. The Administrator should immediately implement a new password as a matter of prudent security practice. Once the Administrator’s password is saved, the Network Camera will ask for the user’s name and password before each access.
  • Page 17 English NOTE The user name for the Administrator is permanently assigned as “root”. Once the password is changed, the browser will display an authentication window to ask for the new password. Once the password is set, there is no provision to recover the Administrator’s password. The only option is to restore to the original factory default settings.

  • Page 18: Web Configuration

    English Web Configuration Main Screen with Camera View The main page has three parts: 1. Configuration functions The camera can be configured using these user interfaces. Click on Configuration in the bottom of left column to link to the configuration page. 2.
  • Page 19 English Camera view Press the icon of the camera and enter the settings. 1. Audio Click on this button to adjust the audio volume and latency. 2. Image Click on this button to adjust the image brightness and contrast. 3. Digital zoom The checkbox selection lets you open a digital zoom, and to control the window to enlarge a specified area in the camera view.
  • Page 20 English Pan/Tilt control buttons 1. The direction buttons Left, Right, Up, Down, Cross Angles, and Home. Camera returns to center when you click Home button. 2. Go to Once the Administrator has set the present positions; you can click down arrow to choose one position.

  • Page 21: Definitions In Configuration

    English Definitions in Configuration Note that only the Administrator can access the system configuration. Each category in the left column will be explained on the following pages. System 1. Host name The text displays the title on the top of the main page. 2.
  • Page 22 English 5. Daylight saving For summertime, it will be one hour ahead. 6. Keep current date and time Click on this to keep the current date and time of the Network Camera. An internal real-time clock maintains the date and time even when the power of the system is turned off. 7.

  • Page 23: Security

    English Security The Network Camera is shipped without any password by default. That means everyone can access the Network Camera including the configuration as long as the IP address is known. It is necessary to assign a password if the Network Camera for everyone who wants to access the camera.

  • Page 24: Network

    English Network Any changes made on this page will restart the system in order to validate the changes. Make sure every field is entered correctly before clicking on Save. Network type The default type is LAN. Select PPPoE if using ADSL. 1.
  • Page 25 English (1) Get IP address automatically (2) Use fixed IP address IP address: This is necessary for network identification. Subnet mask: This is used to determine if the destination is in the same subnet. The default value is “255.255.255.0”. Default router: This is a gateway used to forward frames to destinations in a different subnet.

  • Page 26: Ddns

    English DDNS Dynamic domain name service 1. Enable DDNS This option turns on the DDNS function. 2. Provider The provider list contains hosts that provide DDNS services. Connect to the service provider’s website to make sure the service charges. 3. Host Name If the User wants to use DDNS service, this field must be filled.

  • Page 27: Stream

    English Stream 1. Select internet connection mode This option turns on the Internet Mode function. 2. Stream type The Network Camera supports two kind of video compression mode: MPEG4 or MJPEG. Choose one of these compression modes based on requirement or application. 3.

  • Page 28: Video

    English Video 1. Power freq. Select 50 Hz or 60Hz power line frequency. NOTE The fluorescent light will flash according to the power line frequency that depends on local utility. Change the frequency setting to eliminate uncomfortable flash image when the light source is only fluorescent light.
  • Page 29 English 4. White balance (1) Auto: Adjust the white balance automatically. (2) Hold: Fix the white balance. 5. Exposure Adjust the value for best exposure time. (1) Auto: Adjust the exposure automatically. (2) Hold: Fix the exposure. 6. Infrared LED Control IR led for Day and Night (Option).

  • Page 30: Audio

    English Audio 1. Mute Audio mute. 2. Mic Volume Adjust microphone volume. 3. Audio type: Select audio codec (1) G.726, bit rate: 16/24/32/40 Kbps (2) AMR, bit rate: 4750/5150/5900/6700/7400/7950/10200/12000 Click on Save button to save current settings...

  • Page 31: Camera Control

    English Camera control On the Camera Control page, there are two main function control areas: Camera control area Preset function area Camera control area 1. Pan and tilt function buttons The “Left” button controls the camera to the left; the “Right”, “Up”, and “Down” buttons control the camera accordingly.
  • Page 32 English 2. Preset position This keeps a list for preset positions. Clicking on the “Delete” button will remove the current selected position from the preset list. 3. Set as home Click on the button will set the current aimed position as home of the Network Camera. Each time the Network Camera reboots or finishes calibration, it will automatically aim to the defined home position.

  • Page 33: Email And Ftp

    English Email and FTP Email When the SMTP server supports SMTP authentication, you need to give a valid user name and password to send an email via the server. 1. Sender email address It is the email address of the sender. 2.
  • Page 34 English 4. Primary & Secondary Server address The domain name or IP address of the external email server. (1) User name: This grants user name on the external email server. (2) Password: This grants password on the external email server. (3) Recipient email address: The email address of the recipients for snapshots or recording files.

  • Page 35: Motion Detection

    English Motion Detection A small detection window will You can enlarge the pop-up pop-up as soon as you check window and move it to the area Window 1~Window 4. where you want to detect. 1. Enable motion detection You can enable or disable motion detection function. 2.

  • Page 36: Application

    English Application 1. Method (1) Enable notification: Enable/Disable notification application. (2) Enable snapshot: Enable/Disable snapshot application. (3) Enable video clip: Enable/Disable video clip application. 2. Weekly schedule “Sun”/”Mon”/”Tue”/”Wed”/”Thu”/”Fri”/“Sat” Select the days of the week to perform the application. 3. Time Select “Always”...
  • Page 37 English 5. Trigger (1) Motion detection” Sends out the notification/snapshot/video while in motion detection. (2) Delay second(s) before detecting next motion: Set the time delay before restarting to check on the triggering condition when the current condition is triggered. 6. Sends files by (1) Email: Selects sending files by email.

  • Page 38: Samba

    English Samba 1. Enable Samba Enable/Disable file uploaded to the Samba network disk. 2. Samba/NAS server The IP address of the Samba network disk. 3. Domain The domain name of the Samba network disk. 4. User name This granted user name on the Samba network disk. 5.

  • Page 39: Ip Notification

    English IP notification 1. Enable notification Enable/Disable IP address change notification application 2. Sender email address The email address of the sender. 3. Server address The domain name or IP address of the external email server. 4. Email subject It’s a unique number for each Network Camera for identification. 5.

  • Page 40: System Log

    English System log The Network camera can log system messages on a remote server. The protocol is compliant to RFC 3164. If you have an external Linux server with syslogd service, use “-r” option to turn on the facility for receiving the log from remote machine. Or you can use some software on Windows that is compliant to RFC 3164.

  • Page 41: Status

    English Status You can find a lot of information about the system such as MAC address, IP address, firmware version, and so on. You can also get the number of the current viewer of the Network Camera here.

  • Page 42: Maintenance

    English Maintenance 1. Reboot system The “Reboot” button will reboot the Network Camera. It’s useful if the Network Camera has a problem. 2. Factory default Click on Factory default button on the configuration page to restore the factory default settings. Any changes made so far will be lost and the system will be reset to the initial factory settings.

  • Page 43: Appendix

    English Appendix Trouble shooting Q1: Status led does not light up. A1: First, make sure that「Configuration>System>Turn off the LED indicator」is disabled. If it is, check the item, and the led should light up. Second, if the red led does not light, check that the power adapter in the package is plugged in correctly.
  • Page 44 English Q9: I cannot play the recorded video file. A9: Install the audio codec in the CD, and use the Windows Media Player 10 or later to play the *.asf file recorded by the network camera. Q10: Infrared led does not light up? A10: Check「Configuration>Video>Infrared LED Control」is Auto or Manual (Turn on).

  • Page 45: Technical Specifications

    English Q15: The ftp output is only 320 x 240. Can it be changed? A15: No, it's to minimize the video clip size. Technical specifications System Video RAM: 64MB SDRAM 1/6” CMOS VGA Sensor ROM: 8MB Flash ROM Video Resolution: 640x480, 320x240, 160x120 Frame Rate: Up to 30fps Networking Lens...
