SPECIFICATIONS
- 1/4" Full Colour CMOS Imaging Clip
- PC7070 Imaging Sensor
- Full Glass Lens
- 110° Wide Viewing Angle (Horizontal)
- 170° Wide Viewing Angle (Diagonal)
- PAL/NTSC (Switchable)
- Parking Guidelines (Selectable), Type, Height & Width (Adjustable)
- One Button Control of Image Orientation, Video Mode Select, Guideline Type,
Guideline Height & Guideline Width
- Mirror, Normal, Upside-Down Mirror, Upside-Down Normal Image Orientation (Switchable)
- 0.3 Lux Minimum Illumination
- IP67 Water/Dust Protection
- 12V DC Power Input
- Number Plate or In-Bumper Mounting
- RCA Connection
- Dimensions: 16.5mm x 23mm (D)
IP67
WEATHER
P R O O F
12
V
SYSTEM
PARKING
SWITCHABLE
GUIDELINES
INCLUDED:

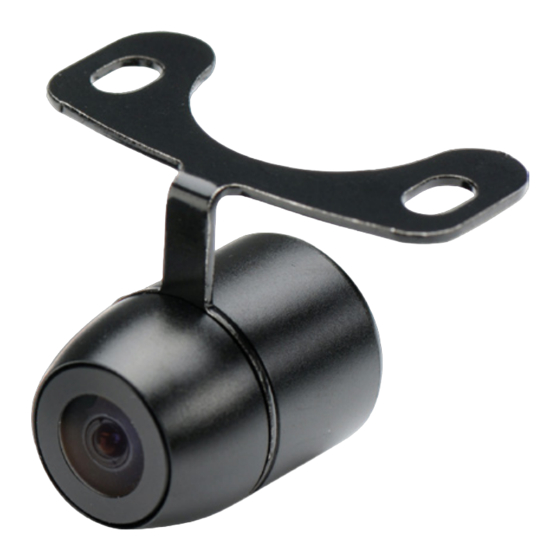

- Dual Mounting Heads (Butterfly and Bumper Fit)
- Installation Manual
- Installation Hardware
- Metal Hole Saw for Bumper Fit Installation
- 6m Video Cable (RCA M)
2
YEAR
Advertisement
Table of Contents
Related Manuals for Audioxtra Axis 2 Series
Summary of Contents for Audioxtra Axis 2 Series

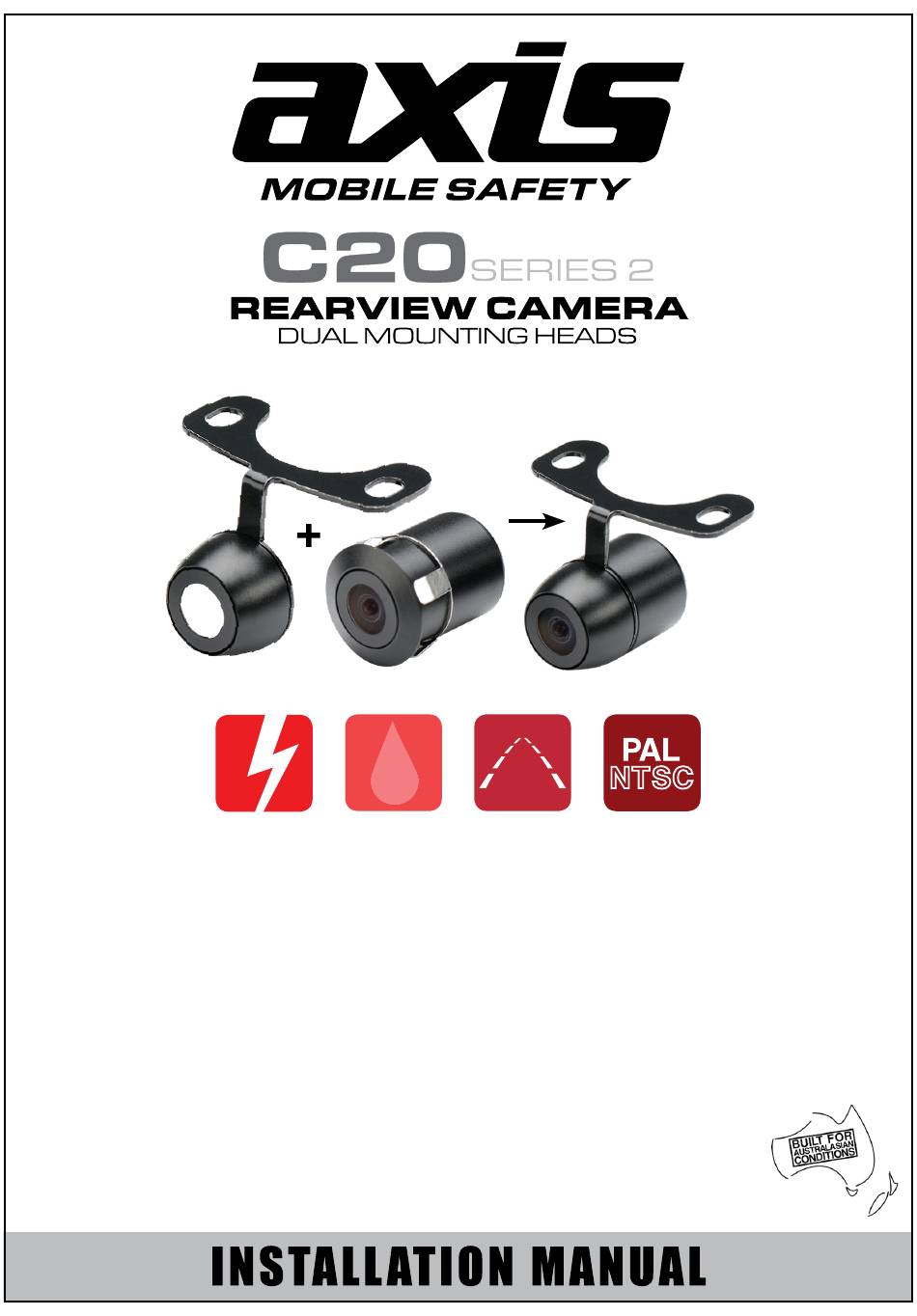

- Page 1 IP67 WEATHER P R O O F SYSTEM CAMERA PARKING SWITCHABLE GUIDELINES SPECIFICATIONS INCLUDED: - 1/4” Full Colour CMOS Imaging Clip - Dual Mounting Heads (Butterfly and Bumper Fit) - PC7070 Imaging Sensor - Installation Manual - Full Glass Lens - Installation Hardware - 110°...
- Page 2 CAR REARVIEW CAMERA GENERAL: After installation, the rear view system will automatically activate when reverse gear is selected. This can provide a clear image for the driver and protect children, pedestrians etc from injury. Also your vehicle will avoid costly repairs from dents and other damage when parking.
- Page 3 CAR REARVIEW CAMERA CAMERA ASSEMBLY OPTIONS: The C20 System is supplied with Dual Mounting Heads: Wing/Butterfly or Bumper Fit. Dual Mounting Heads Butterfly Bumper CABLE CONNECTIONS: See wiring diagram below: Monitor Trigger Wire (Please insulate if not used) One-Button Control Camera Monitor +12V...
