1/3" COMPACT CCD
REVERSING CAMERA
SPECIFICATIONS
CAMERA
- Image Device:
- Viewing Angle:
- Signal System:
- TV Lines:
- Image Orientation:
- Night Vision:
- Illumination:
- Ingress Protection:
- Operating Temp:
- Power Supply:
- Power Consumption:
- Dimensions:
- Connector:
- Accessories:
CC05
1/3" Sony CCD
120°
PAL
480
Mirror
10 LED
0.1 Lux with IR on
IP67
-20 ~60°
12V DC
200mA
54W x 41H x 54D mm (Excluding Bracket)
Terminated to 4Pin Male
2 Years

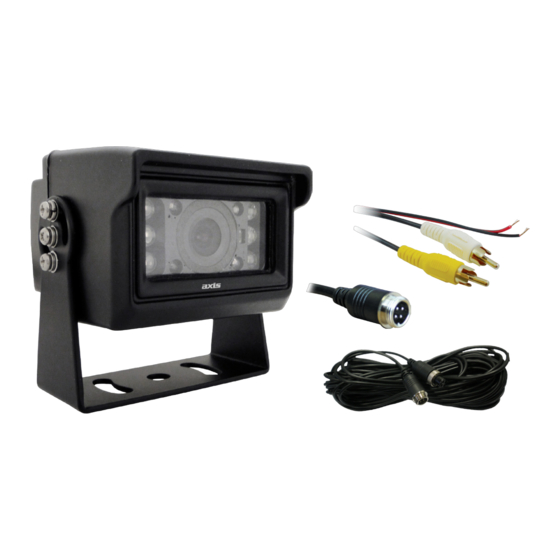

Metal Mounting Bracket
Includes
- Installation Hardware
- 15M Extension Cable (4PinF~4PinM)
- Adapter Flylead (4PinF~RCA M)
2
YEAR
WARRANTY
