83799600
P1009YZ
A
JK-DVF-AC

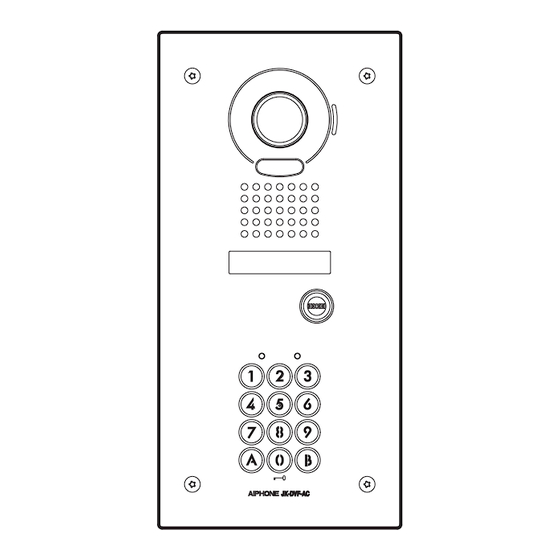

Vandal-resistant Color Video Door Station
with Access Control Keypad
Platine vidéo couleur résistante au vandalisme
avec clavier à codes rétro-éclairé
Antivandalisme deurpost met kleurencamera en
ingebouwd codeklavier
JK-DVF-AC
INSTALLATION & OPERATION MANUAL
MANUEL D'INSTALLATION ET D'UTILISATION
INSTALLATIE & GEBRUIKSHANDLEIDING
Advertisement
Table of Contents
Related Manuals for Aiphone JK-DVF-AC
Summary of Contents for Aiphone JK-DVF-AC
- Page 1 83799600 P1009YZ JK-DVF-AC Vandal-resistant Color Video Door Station with Access Control Keypad Platine vidéo couleur résistante au vandalisme avec clavier à codes rétro-éclairé Antivandalisme deurpost met kleurencamera en ingebouwd codeklavier JK-DVF-AC INSTALLATION & OPERATION MANUAL MANUEL D’INSTALLATION ET D’UTILISATION INSTALLATIE & GEBRUIKSHANDLEIDING...
-
Page 2: Record Of Settings And Registration Details For Access Control
RECORD OF SETTINGS AND REGISTRATION DETAILS FOR ACCESS CONTROL (Please make sure to write down your settings below.) AIDE MEMOIRE DES PROGRAMMATIONS ENREGISTREES POUR LE CLAVIER (Faire en sorte de bien noter vos réglages ci-dessous.) LIJST MET GEPROGRAMMEERDE INSTELLINGEN EN CODES VOOR CODEKLAVIER (Zorg ervoor uw instellingen hieronder op te schrijven.) Master code Code maître... -
Page 3: Table Of Contents
English Thank you for selecting Aiphone for your communication and security needs. Please read this manual carefully before installation, and keep it in a safe place for future reference. * Refer to the “INSTALLATION & OPERATION MANUAL” for the JK-1MED or JK-1MD for complete information regarding this system. PRECAUTIONS General Prohibitions Prohibition to Dismantle the Unit WARNING (Negligence could result in death or serious injury to people) 1. The unit must be installed and wired by a qualified... -
Page 4: Package Contents
PACKAGE CONTENTS Door station with Flush mount back box MOUNTING Mounting locations "Do not install this unit in any of the following locations where lighting or the ambient environment could impact the display on the video monitor due to the characteristics of the door station's camera." Locations subject to direct sunlight Mounting positions and image view area of Video door station... -
Page 5: Part Names
Mounting 1. Detach the door station from the flush mount back box by removing the screws with the special screwdriver that is supplied with the unit. 2. Attach the flush mount back box to the wall. 3. Route wiring through the flush mount back box and connect wires to the door station. * See page 5 and 6 for details on wiring and connections. 4. Attach the door station to the flush mount back box. * Be sure to use the original screws to reattach the door station to the flush mount back box. Flush mount back box Door station Transparent nameplate Special Loosen screwdriver Tighten Special screws (4 pcs) Notes on handling wires After stripping back the cable jacket from the conductors, waterproof the area that has been cut by wrapping insulation tape around the end of the jacket. Additionally, position... -
Page 6: Wiring And Connections
WIRING AND CONNECTIONS Outline of connections and wiring distance Wiring distance Power supply Diameter 0.65 mm (22 AWG) 1.0 mm (18 AWG) 12 - 18V AC or DC 0.65 - 1.0 mm or less (22 - 18 AWG) 18 - 24V AC or DC 0.65 - 1.0 mm (22 - 18 AWG) 0.65 - 1.0 mm (22 - 18 AWG) The connection distance will depend on... - Page 7 2 NP 2 NP Request to exit/entry button (push button, etc.) Power supply n Relay 1: Automatic gate (N/O contact), Relay 2: Electric door strike (N/O contact) JK-DVF-AC PB1 PB2 2 NP Power supply Rating Between 12 and 24V AC...
-
Page 8: Functions/Setting Up For Access Control
FUNCTIONS/SETTING UP FOR ACCESS CONTROL This section explains the settings of each function, including the master code for management, the user code for unlocking, the buzzer and the LEDs. About the setting mode: Enter master code twice to switch to the setting mode, and enter the following setting code to perform the settings for the desired function. After settings have been made, enter the following setting codes to continue the setting operation. Press to exit the setting mode. - Page 9 Orange (L) Input the master code twice. (Default: Setting the code length Setting the master code (Default: 4 digits) (Default：1234) Input the setting code. Input the setting code. Illumination Blinking Illumination Blinking Bleep Inputting of code length (ex.: 5 digits) Inputting of new master code 4, 5, or 6 digits (ex.: 4321)
- Page 10 Input the master code twice. (Default : Setting the key illumination time Setting the relay output time (Default: 10 Sec.) (Default: 3 Sec.) When setting relay 1 When setting relay 1 Input the setting code. Input the setting code. Input the setting code. Illumination Blinking Illumination Blinking Bleep...
- Page 11 Input the master code twice. (Default : Lockout (Anti-tailgate) (Default: OFF) (Default: OFF) Input the setting code. Input the setting code. Illumination Blinking Illumination Blinking Bleep Illumination Blinking Illumination Blinking Illumination Blinking Beep Bleep Inputting the number of operations (ex.：10 times) 10 -99 Illumination Blinking Bleep...
-
Page 12: Operation Of Access Control
OPERATION OF ACCESS CONTROL * Also refer to the “INSTALLATION & OPERATION MANUAL” for the master station (JK-1MED or JK- 1MD) connected to this unit regarding the operation of the video door station. A. Unlocking of user code When the registered user code has been input using the keypad (between 4 and 6 digits), the LED indicator (group 1: orange, group 2: green) lights up, the buzzer sounds, and the electric door strike is unlocked. -
Page 13: Specifications
• Scanning lines: 525 lines • Minimum subject illumination: 5 Lux at 50 cm (1' 6") distance WARRANTY Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a period of two years after delivery to the ultimate user and will repair free of charge or replace at no charge, should it become defective upon which examination shall disclose to be defective and under warranty. Aiphone reserves unto itself the sole right to make...
