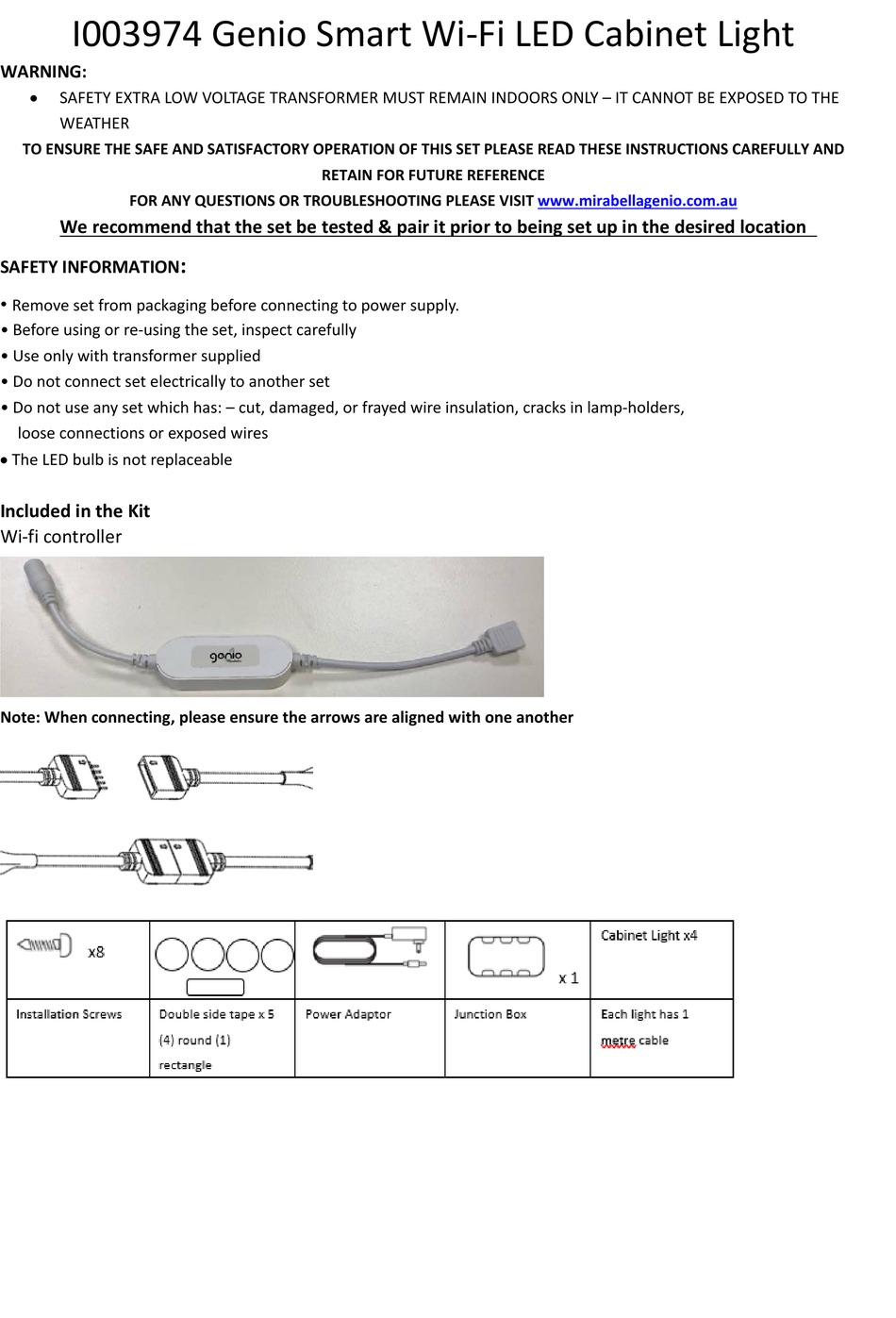

I003974 Genio Smart Wi‐Fi LED Cabinet Light
WARNING:
SAFETY EXTRA LOW VOLTAGE TRANSFORMER MUST REMAIN INDOORS ONLY – IT CANNOT BE EXPOSED TO THE
WEATHER
TO ENSURE THE SAFE AND SATISFACTORY OPERATION OF THIS SET PLEASE READ THESE INSTRUCTIONS CAREFULLY AND
FOR ANY QUESTIONS OR TROUBLESHOOTING PLEASE VISIT www.mirabellagenio.com.au
We recommend that the set be tested & pair it prior to being set up in the desired location
SAFETY INFORMATION
•
Remove set from packaging before connecting to power supply.
• Before using or re‐using the set, inspect carefully
• Use only with transformer supplied
• Do not connect set electrically to another set
• Do not use any set which has: – cut, damaged, or frayed wire insulation, cracks in lamp‐holders,
loose connections or exposed wires
The LED bulb is not replaceable
Included in the Kit
Wi‐fi controller
Note: When connecting, please ensure the arrows are aligned with one another
RETAIN FOR FUTURE REFERENCE
:
Advertisement
Table of Contents
Related Manuals for MIRABELLA I003974 Genio
Summary of Contents for MIRABELLA I003974 Genio
- Page 1 I003974 Genio Smart Wi‐Fi LED Cabinet Light WARNING: SAFETY EXTRA LOW VOLTAGE TRANSFORMER MUST REMAIN INDOORS ONLY – IT CANNOT BE EXPOSED TO THE WEATHER TO ENSURE THE SAFE AND SATISFACTORY OPERATION OF THIS SET PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE FOR ANY QUESTIONS OR TROUBLESHOOTING PLEASE VISIT www.mirabellagenio.com.au We recommend that the set be tested & pair it prior to being set up in the desired location : SAFETY INFORMATION • Remove set from packaging before connecting to power supply. • Before using or re‐using the set, inspect carefully • Use only with transformer supplied • Do not connect set electrically to another set • Do not use any set which has: – cut, damaged, or frayed wire insulation, cracks in lamp‐holders, loose connections or exposed wires The LED bulb is not replaceable Included in the Kit Wi‐fi controller Note: When connecting, please ensure the arrows are aligned with one another ...
- Page 2 Install the APP and register Account For the best experience, download the "Mirabella Genio" APP to your smartphone from App Store or Google Play, or you can also scan the QR code below, the APP icon will be displayed after it’s installed successfully Before you begin installation, you need to determine the light placement. Ensure that the placement will allow for the adaptor to be able to be plugged into a power point outlet. If drilling thru cabinets, we recommend using a 12mm hole saw Installation of the Cabinet Lights (if using screws). 1. Connect the cabinet lights power cables to the junction box. 2. Locate a central position for the junction box. 3. Use the rectangle double sided tape to fix the junction box into place. ...
- Page 3 6. Connect the power adaptor to the Wi‐Fi controller Pairing using Mirabella Genio App 1. Switch on power at wall, wait a few seconds, cabinet light will start to blink rapidly 2. If it did not automatically start to blink fast when first powered on, press and hold the paring button on the controller, until the light starts to blink fast (2 blinks per sec) 3. Ensure your mobile phone is connected to 2.4Ghz Wi‐Fi network 4. Please note that (5GHz Wi‐Fi is not supported and must be disabled on the router setting during pairing) 5. Once the unit has been paired, 5GHz can then be enabled. 6. Launch Mirabella Genio app, tap on plus symbol “+” (located top right hand corner), 7. Go to Smart Lighting ‐> Genio lighting devices 8. Follow the App instruction to finish the pairing process During the 0‐100% buffering, the light will stop blinking during this process. HOWEVER if the connection buffers to 100% and times out, In this instance, it means that the unit has not successfully paired. To trouble shoot this please refer to the 4 points detailed below. ‐ Check light is blinking rapidly, (2 blinks per second) ‐ Ensure the 5Ghz Wi‐Fi signal is disabled on your router ...
