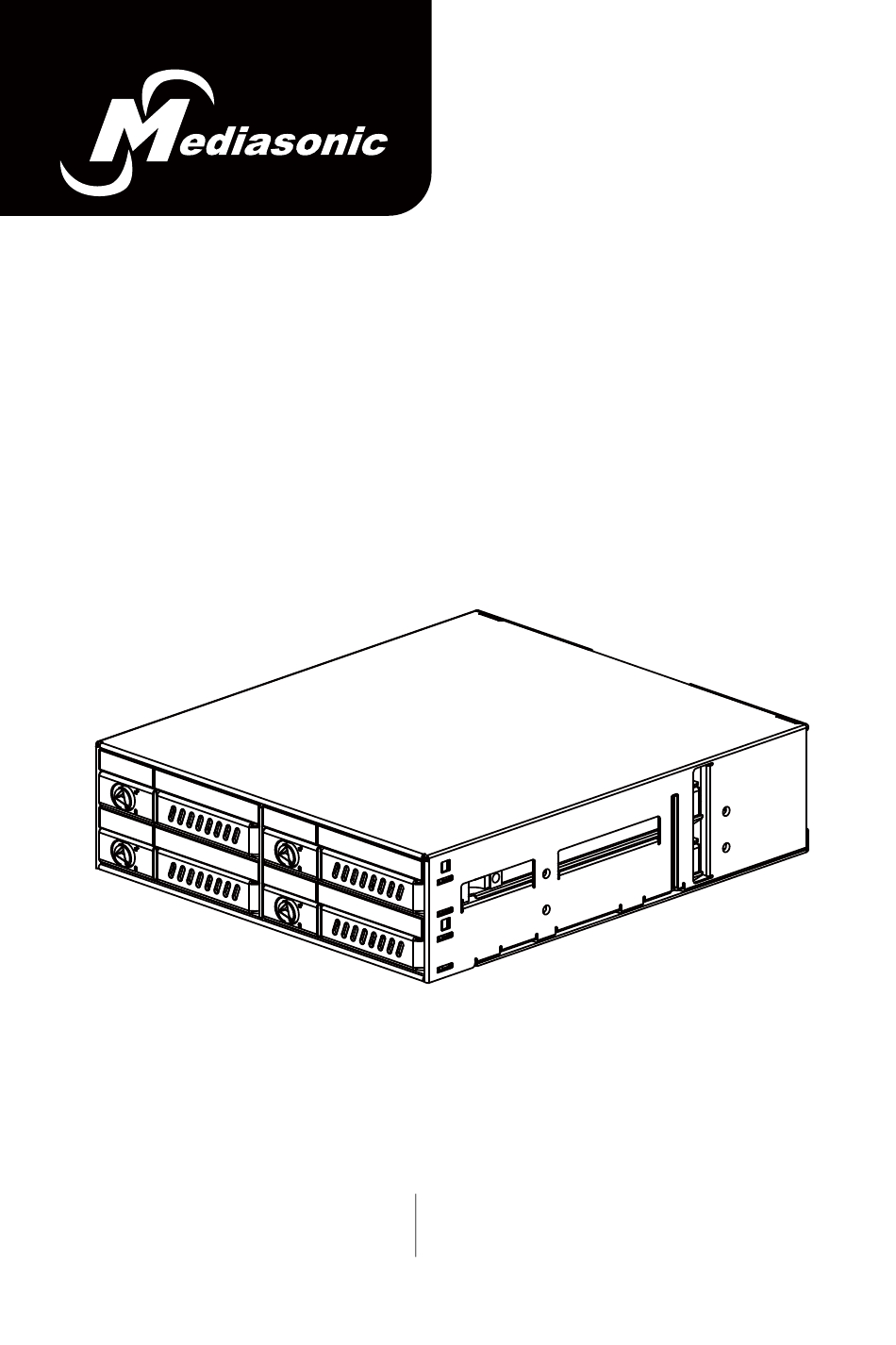

- Page 1 QUAD 2.5” SATA HDD Mobile Rack For 5.25” Bay of PC HT21-104 USER’ S MANUAL Official website Online forum www.mediasonicusa.com http://forum.mediasonic.ca/...
- Page 2 Thank you for purchasing Our product. please read the user manual carefully before using this product. 1. When installing new HDD or SSD drives, the drives need to be initialized and formatted. 2. Do not disassemble, repair and modify this product. 3.

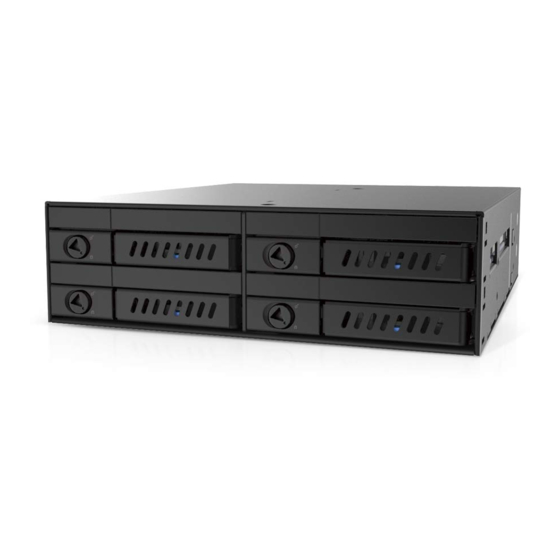

- Page 3 HT21-104 Internal 4 * 2.5" SATA HDD Mobile Rack for 5.25” Drive bay. suitable for 2.5” SATA/SSD HDD, SATA high-speed transmission interface can supports transmission of up to 6Gbps. The unique design is compatible to all 7~15mm thickness of 2.5”...
- Page 4 Product Specification 7~15mm 2.5” SATA/SSD HDD Device fit Metal Material Interface SATA Data Transmission UP to 6Gbps Drive Fit 5.25” driver bay of PC LED indicator Power / Access Power support 4 pin power Product Installation 1. Please take out the product and related accessories. 2.
- Page 5 HDD Installation 1. Use the included key to rotated the security lock to the unlocked state. 2. Slide safety lock to the open state to open the front panel. 3. Slide out hard drive tray.
- Page 6 4. Install 2.5" hard disk on the tray and secure it with screws. 5. Slide the installed HDD tray in to the rack and close the front panel. Slide safety lock to close state 6.Use the key to lock the panel and turn to the locked state.
