MediaSonic HUR5-SU3 User Manual

Single & JBOD
RAID (1/0) functions
3.5'' SATA HARD DRIVE

User Manual

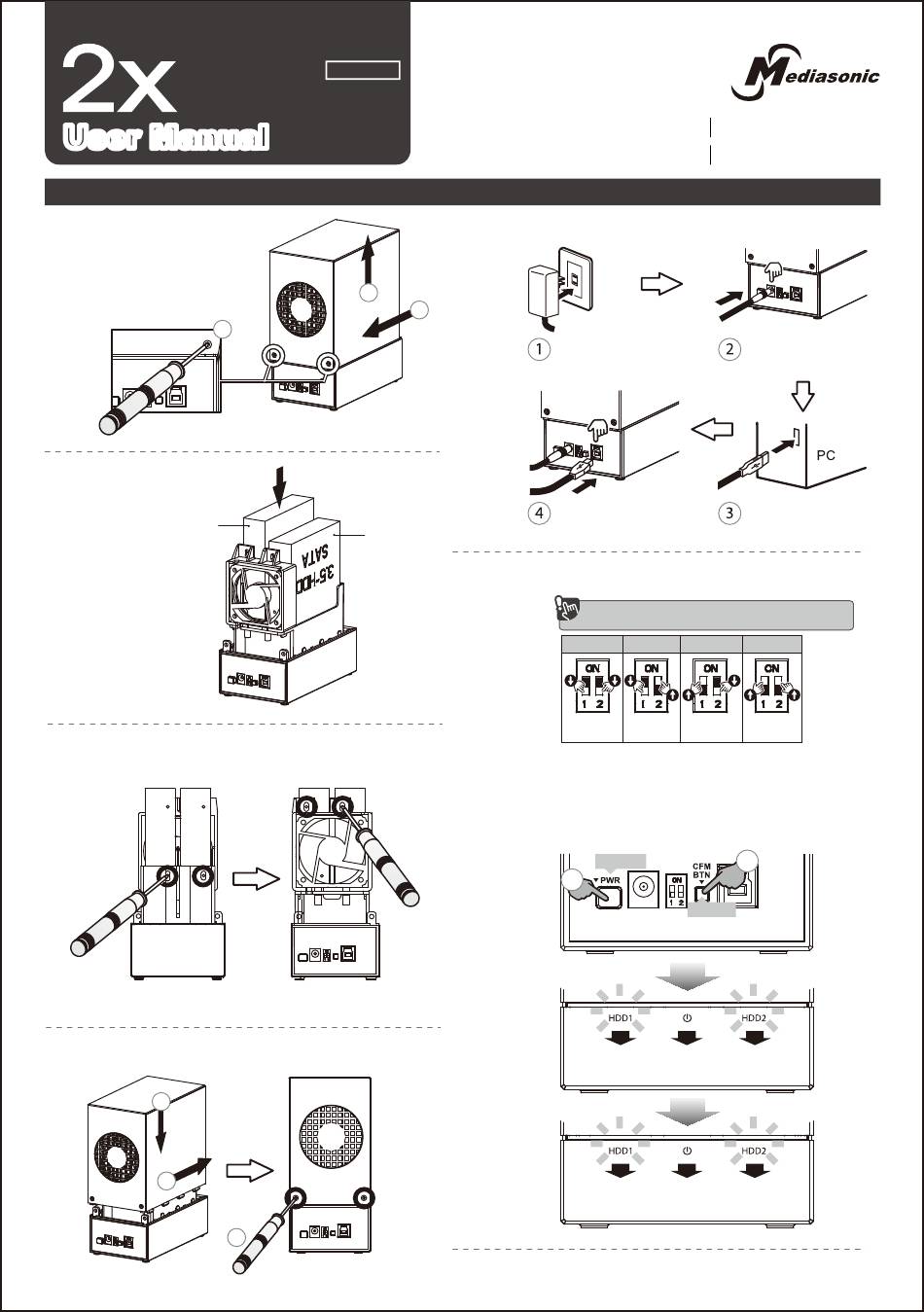

Quick installation Guide

Step 1. Detach the screws,
slide the cover horizontally
and then pull it up.
1
Step 2. Install hard drives gently.
HDD 2
Step 3. Make sure the hard drives are properly
installed and then scure them with a screw driver
(Front)
Step 4. Close the cover and secure it with the screws removed
in step 1.
1
2
HUR5-SU3
Version:3.0
3
HDD 1
(Back)
3
Please visit our website for manual
Step 5. Connect the cables in order.
2
Plug in the
adapter
Then, connect the other
side of the USB cable
to the device
Step 6. Raid Mode configuration
6-1. Be sure the power is off when RAID mode switches
Changing RAID mode may cause data lost, backup
your data before making changes.
Single
1 OFF
2 OFF
6-2. Hold (CFM) button and turn on the power (PWR)
to get HDD blue indicator first.
Keep holding (CFM) button until the HDD
purple indicator begins to flash on the front panel,
which means the setting completed.
Then, let go of the CFM button.
2
(HDD indicator : HDD purple indicator begins to flsah)
Step 7. Now you just need to partiton and format the drives.
www.mediasonicusa.com
Online forum http://forum.mediasonic.ca/
Connect the
DC power cable
to the device
Connect the
USB cable to the PC
JBOD RAID 1 RAID 0
1 OFF 1 ON 1 ON
2 ON 2 OFF 2 ON
1
PWR BTN
CFM BTN
*CFM BTN: Confirmation Button
(HDD indicator:Blue)
