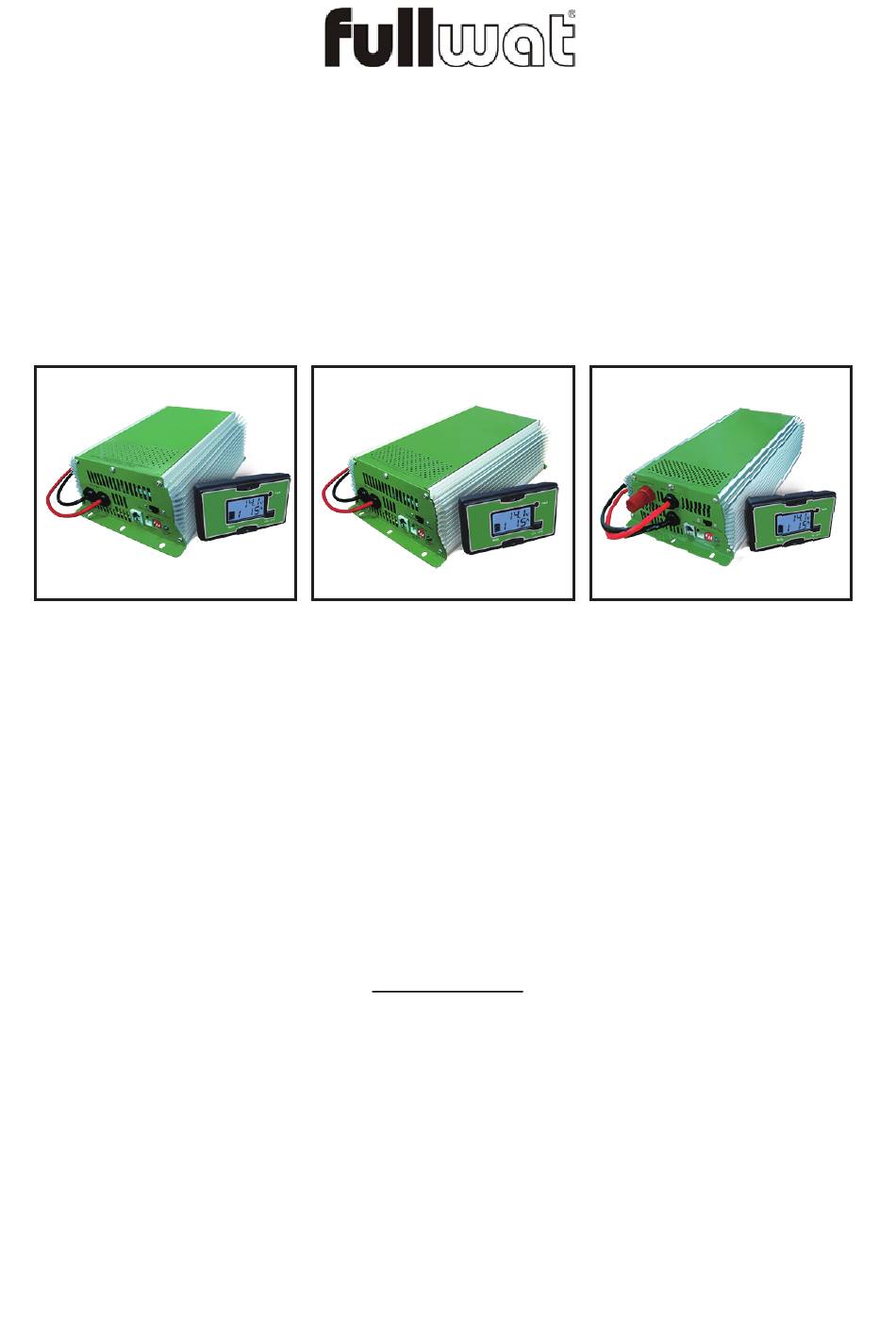

  • Page 1: Table Of Contents

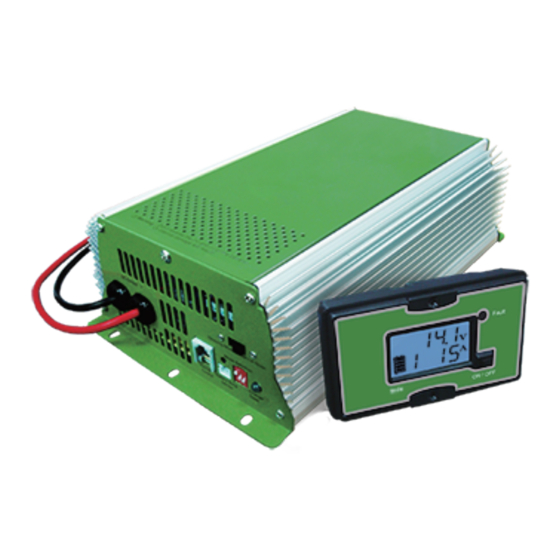

    Design Features • PFC function (except FUM-1215CBPH and FUM-2407CBPH). • Sleeping mode function. • Wide input voltage (universal) range operation (except FUM-1215CBPH and FUM-2407CBPH). • LCD remote control. • Battery temperature sensor function. • Tri-LED color indicator for different charge stage.

  • Page 2: Important Safety Instructions

    1. Important safety instructions WARNING Before installing and using the charger, read all instructions and cautionary marking on the charger, the batteries and all appropriate sections of this guide. General safety precautions Do not expose the charger to rain, snow, spray, or bilge water. To reduce risk of fire hazards, do not cover or obstruct the ventilation openings.

  • Page 3: Charger Overview

    3. Charger overview Warning : Damage caused by wrong positive (+) and negative (-) connection is not covered by the warranty. FUM-1215CBPH; FUM-2407CBPH // FUM-1230CBPH; FUM-2415CBPH Warning : Don't reverse the (+) and (-) of the battery! Or internal damage will result!
  • Page 4 Note 1: Sleeping mode: Fan would stop and the charger working sound would be smaller, so the output current would be 5A (12V spec.) or 2.5A (24V spec.) only. Note 2: Normal mode: The charger would work as it maximum capacity according to its specifications.

  • Page 5: Installation Diagrams

    Warning : Don't reverse the (+) and (-) of the battery! Or internal damage will result! t t e black (negative) red (positive) FUM-1215CBPH; FUM-2407CBPH // FUM-1230CBPH; FUM-2415CBPH Main battery (the red Cable) t t e Warning : Don't reverse the (+) and (-) of the battery!

  • Page 6: Warranty

    WARNING Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charge. Include a warning against recharging non-rechargeable batteries. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. Explosive gas precautions The charger has been approved as Ignition Protected.

  • Page 7: Charging Voltage Graph

    6. Charging voltage graph Mode 1 Suitable for recharging lead (100) storage battery Mode 2 Suitable for recharging gel standby (120) storage battery orange orange green LED color 1 2 3 Mode 3 Suitable for recharging lead (003) storage battery, which is in good condition (no sulfated situation) and completely disconnected from the devices it runs,...

  • Page 8: Charger Lcd Remote Control

    7. Charger LCD remote control fault indicator Fault Fault Mode Mode ON / OFF ON / OFF 2. Mode 1 ~ 5, no battery connected. 1. OFF battery volt Fault Fault Mode Mode ON / OFF ON / OFF battery capacity ON/OFF switch charging mode charging current...

  • Page 9: Technical Specifications

    8. Technical specifications Model FUM-1215CBPH FUM-2407CBPH INPUT Voltage range 180~240VAC Frequency range 45 ~ 65 Hz Efficiency ≥ 85% Power factor 0.5 at full load (±5%) Input socket IEC plug OUTPUT Mode selection Bulk stage 14.1V 14.7V 12.2V 13.5V 28.2V 29.4V...
  • Page 10 Model FUM-1230CBP FUM-2415CBP INPUT Voltage range 100~240VAC Frequency range 45 ~ 65 Hz Efficiency ≥ 85% Power factor 1.0 at full load (±5%) Input socket IEC plug OUTPUT Mode selection Bulk stage 14.1V 14.7V 12.2V 13.5V 28.2V 29.4V 25.4V 14.7V 30A 29.4V 15A Absortion stage 14.7V...
  • Page 11 Model FUM-1260CBP FUM-2430CBP INPUT Voltage range 100~240VAC Frequency range 45 ~ 65 Hz Efficiency ≥ 85% Power factor 1.0 at full load (±5%) Input socket IEC plug OUTPUT Mode selection Bulk stage 14.1V 14.7V 12.2V 13.5V 28.2V 29.4V 25.4V 14.7V 60A 29.4V 30A Absortion stage 14.7V...

  • Page 12: Charging And Discharging Formulae

    Typical charging efficiency fo lead-acid batteries. Example: A group size battery rated at 100 amp-hours is 40% discarged, that is it has a DOD = 40. Carging time with a FUM-1215CBPH is calculated as follows: 100Ah x 40% Charging time = = 3.3 hours...
