Summary of Contents for YTL 23316

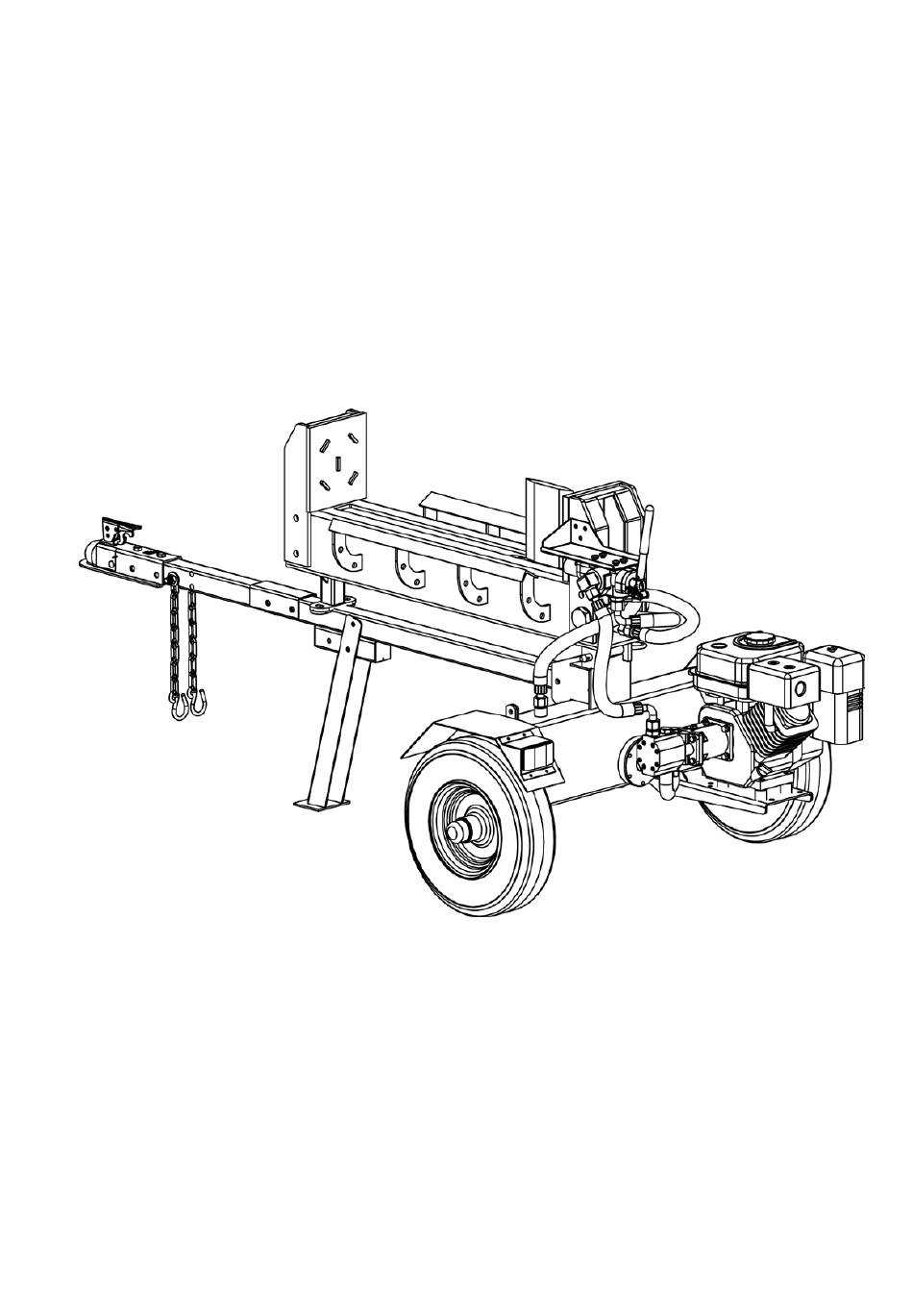

- Page 1 20 TON DUAL ACTION LOG SPLITTER Instruction and Assembly SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE REV07272021 DS20...
-
Page 2: Table Of Contents
Table of Contents General Warnings and Rules ................3 Hazard Signal Word Definitions ................4 Controls and Features Identification ..............5, 6 Component Parts ....................7 Assembly Instructions ................8, 9, 10, 11 Operation Instructions ............... 12, 13, 14, 15 Maintenance ....................... - Page 3 GENERAL WARNINGS READ and UNDERSTAND this manual completely before using 20 Ton Log Splitter. Operator must read and understand all safety and warning information, operating instructions, maintenance and storage instructions before operating this equipment. Failure to properly operate and maintain the log splitter could result in serious injury to the operator or bystanders. Operation Warnings •...
-
Page 4: Hazard Signal Word Definitions
Hazard Signal Word Definitions This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates an imminently hazardous DANGER situation which, if not avoided, will result in death or serious injury. -
Page 5: Controls And Features Identification
Controls and Features Identification Read this owner’s manual before operating the equipment. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. 1) 2” Coupler – Attaches the log splitter to the tow vehicle. 2) Beam/Cylinder - Hydraulic cylinder has a 4”... - Page 6 WARNING Read and follow all instructions for assembly and operation. Failure to properly assemble this equipment could result in serious injury to the user or bystanders, or cause equipment damage . Engine Shipped Without Oil. Before starting engine, fill with SAE 10W-30 motor oil. See engine manual for engine oil capacity.
-
Page 7: Component Parts
Component Parts - 7 -... -
Page 8: Assembly Instructions
Assembly Instructions STEP 1: Wheel Assembly 1. Attach both wheels (#48) to the oil tank (#51) secure using flat washer Ø20 (#47), thin hex slotted nut (#46) and cotter pin 4x36 (#45). Place plastic bushing on the axle cap (#44) then install the axle cap on the end using rubber hammer. - Page 9 STEP3: Attach Engine and Fenders 1. Place the four sets of polyurethane blocks (#63) and large flat washers Ø10 (#12) on the mounting plate. Position the engine (#60) over the blocks and washers then secure it to the mount plate put the hex bolt M8x65 (#62) through the bottom of the plate (bolt should go through blocks, washers and engine base).
- Page 10 STEP 4: Add Engine Oil 1. Make sure the log splitter is on a level surface. 2. Remove oil fill cap/dipstick to add oil. 3. Refer to the separate owner’s engine manual for the amount needed of SAE10W-30 engine oil; replace oil fill cap/dipstick.
- Page 11 STEP 6: Add Hydraulic Oil 1. The log splitter needs to be on a flat, level surface before adding the hydraulic oil. 2. Remove the oil cap from the hydraulic oil tank. 3. Add approximately 2.64 gallons (10L) of hydraulic oil AW32, AW46 & universal hydraulic oil are all acceptable types of fluid.
-
Page 12: Operation Instructions
Operation Instructions WARNING Before operating or using the log splitter, review the instructions below and all safety information. Failure to follow these instructions may result in property damage or injury to the operator or bystanders. WARNING ALWAYS use the log splitter for its intended use. ONLY use the log splitter to split wood logs, length wise with the grain. - Page 13 5. Before towing the log splitter the tires need to be fully inflated. TIRE WARNING DO NOT over inflate tires. Serious injury can result if tires explode. DO NOT tow the log splitter if the tires are worn or will not hold air. DO NOT exceed the maximum 45 MPH towing speed.
- Page 14 NOTE: Serious accidents can happen when other people are allowed inside the work area. Keep everyone else outside the work area while operating the control lever. 8. Always wear safety gear, ear and eye protection, gloves and work boots when operating the log splitter.
- Page 15 CRUSH WARNING Wedge can cut through skin and break bones. Keep both hands away from wedge and beam slide. Serious accidents can happen when other people are allowed inside the work zone. Keep everyone else out of the work zone while operating control lever. DO NOT wear loose clothing.
-
Page 16: Maintenance
Maintenance WARNING Improper maintenance of the log splitter may void your warranty. ALWAYS turn off the engine, disconnect the spark plug, and relieve system pressure before cleaning, adjusting, or repairing the splitter. Relieve system pressure by moving Split Control Lever back and forth several times. MAINTENANCE •... -
Page 17: Storage
IMPORTANT: If a part needs replacement, only use parts that meet the manufacturer’s specifications. Replacement parts that do not meet specifications may result in a safety hazard or poor operations. Storage WARNING Improper storage of the log splitter may void your warranty. STORAGE •... -
Page 18: Troubleshooting
Troubleshooting WARNING Before troubleshooting or attempting to service, read the and follow all safety instructions to avoid serious injury to the operator or bystanders from moving parts that can crush or cut, burns, fire or explosion, or escaping high pressure hydraulic fluid. Problem Cylinder rod will not move Solution: A, D, E, H, J... -
Page 19: Specification
Specifications Ram Force ........Forwards 20 US Ton, Backwards 15 US Ton Cycle Time ....................14 Sec Wedge Size ................7.48” Harden Steel Hydraulic Cylinder (Bore & Stroke) ............. 4” x 22” Gear Pump ....................2-Stage Hydraulic Oil ........AW32, AW46, ISO32 or Universal Hydraulic Oil Hydraulic Oil Required .............. -
Page 20: Parts Drawing & Parts List
Parts Drawing & Parts List - 20 -... - Page 21 Parts Drawing & Parts List Part # Drawing No. Description Z103 2” Coupler 9101-12080-DX8.8 Hex Bolt M12x80 9301-12000-DX Flat Washer Ø12 9206-12000-DX Nylon Lock Nut M12 9206-10000-DX Nylon Lock Nut M10 9302-12000-DX Large Flat Washer Ø12 LSA22-13000-DX Hook Chain 9301-10000-DX Flat Washer Ø10 DS25-05000 Front Tow Bar...
- Page 22 Part # Drawing No. Description DS18-00006 Valve Plate DS18-00005 Control Valve DS25-00008 Connector NPT3/4"-7/8"-14UNF 9901-11*2.5 O Ring 11x2.5 LSP25-00014-DX Connector NPT1/2"-7/8" LSP25-00019-DX Connector 3/4-7/8 DS25-00005 Hydraulic Hose DS20-01000 Cylinder DS18-00008-DX Connector NPT1/2"-7/8" LSA22-00021 Rubber Washer DS20-03000 Hinge Pin 9101-12075-DX8.8 Hex Bolt M12x75 LSP25-00009-DX Axle Cap 9404-4×36-DX...
- Page 23 Part # Drawing No. Description 9206-08000-DX Nylon Hex Nut M8 9101-08065-DX8.8 Hex Bolt M8x65 LSP25-00025 Polyurethane Block LSP25-00021 Rubber Washer LSP25-00022 Filter 9101-08030-DX8.8 Hex Bolt M8x30 LSA22-18000 Right Fender LSP25-13000 Oil Bolt DS25-00006 Hydraulic Hose Flat Key YZ01-08025-DX8.8 Hex Bolt M8x25 9101-08025-DX8.8 LSP25-10005 Gear Pump Stand...
-
Page 24: Limited Warranty
Limited Warranty Warranty For 3 years from the date of purchase YTL International will replace or repair defects in material and workmanship for the original purchaser of the log splitter. For 2 years the engine warranty is covered per the engine manufactures warranty. For 1 year from date of purchase YTL International will repair or replace hydraulic system components.
