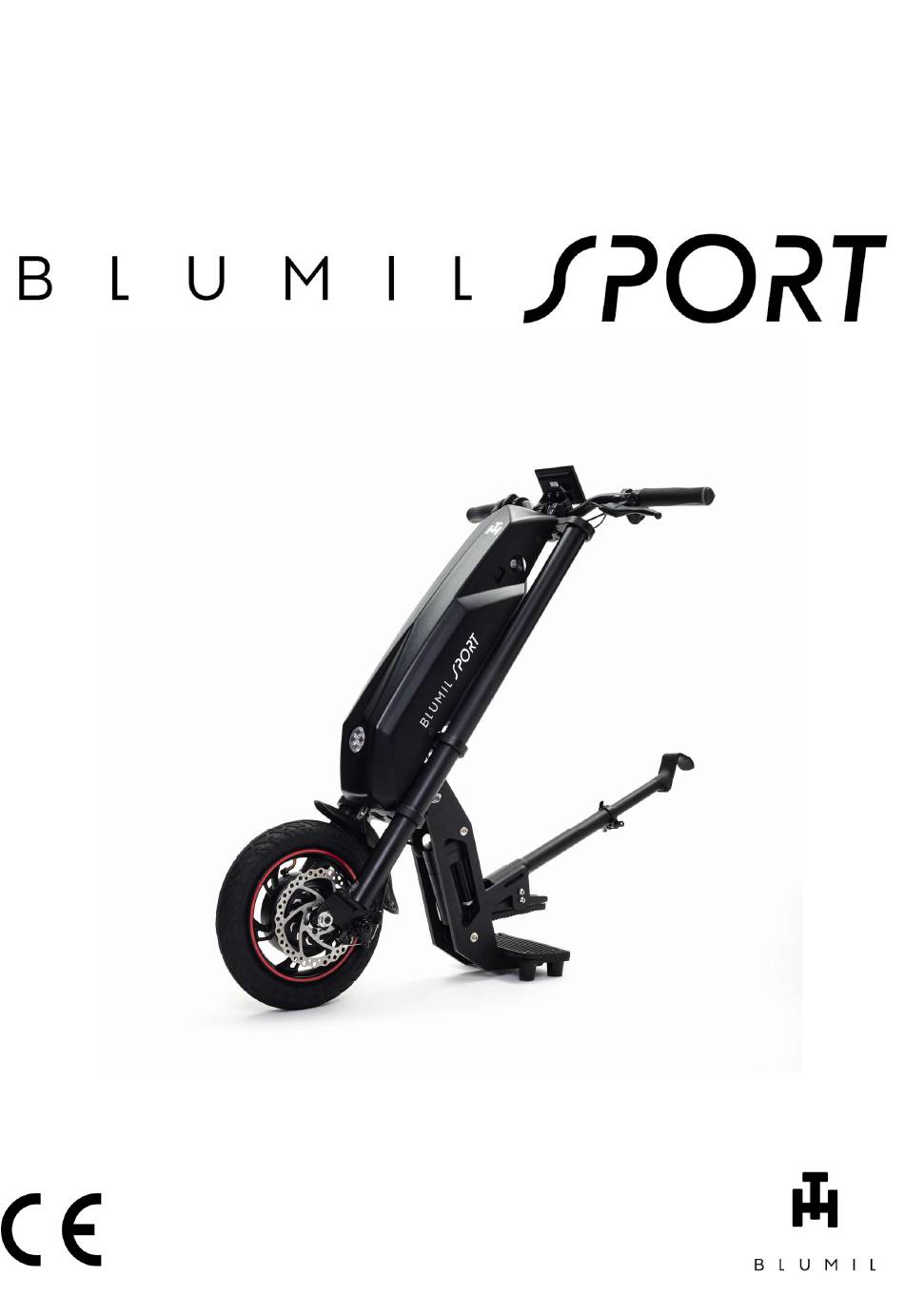

- Page 1 USER MANUAL...
-
Page 3: Table Of Contents
PARTS ......................8 DISPLAY AND BUTTONS ................12 INSTALLING/REMOVING THE BATTERY ............13 CHARGING ....................13 CONNECTING BLUMIL SPORT TO A WHEELCHAIR ........14 ADJUSTING THE STEERING COLUMN ANGLE ..........17 WHEELCHAIRS WITH HIGH FOOTPLATES ............. 18 THE RIDE ....................19 MAINTENANCE OF THE BATTERY PACK ............ -
Page 4: Introduction

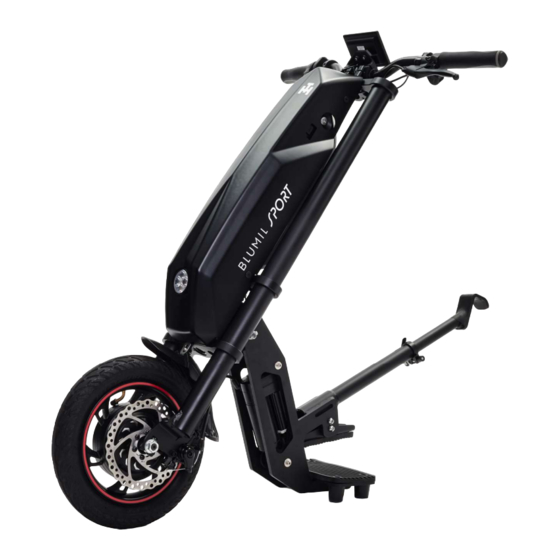

BLUMIL SPORT is a unique solution, that allows you to transform your manual rigid frame wheelchair into an electric handcycle. You can do this just by pressing a button. BLUMIL SPORT makes it possible for millions of people around the world to enjoy a new sense of freedom. -
Page 5: Safety Warnings
• The attachment should only be used to transport one person at a time. Any other use is not permitted. • It is recommended that BLUMIL SPORT is only used by people who are able to physically and mentally meet the requirements of traffic on public roads. - Page 6 • Do not ride with BLUMIL SPORT unless it has been properly adjusted to your individual needs. • Do not attempt to ride when the battery indicator displays no bars (is empty).
- Page 7 • While using and servicing the Blumil, some body parts may get caught in/squeezed in the elements of Blumil. You need to be very careful. After regulating the Blumil, always make sure that the bolts are screwed securely. • Please keep away from children under the age of 5 (choking hazard).
-
Page 8: Parts
PARTS... - Page 9 1. Brake lever 2. Horn 3. Display a. Battery charge indicator b. Speed c. Distance d. Driving mode 4. Battery 5. Connect / disconnect button 6. Throttle 7. Reverse gear 8. Display a. (+) b. Center button c. (-)
- Page 10 9. Tire 10. Brake disc 11. Lever lock 12. Steering wheel angle adjustment 13. Cover 14. Lock 15. USB socket 16. Center bracket...
- Page 11 17. Charging port 18. Main switch...
-
Page 12: Display And Buttons
DISPLAY AND BUTTONS Speed indicator: displays speed Distance Indicator: Displays the mileage Power indicator: Shows the battery capacity Driving mode: Pressing the (+) and (-) buttons changes the maximum speed: 1 - 6 km / h 2 - 20 km / h 3 - 35 km / h WARNING: Mode 3 is for expert drivers and is enabled at your own risk. -
Page 13: Installing/Removing The Battery
INSTALLING/REMOVING THE BATTERY 1. Turn off the battery 2. Unlock the battery with the key 3. Slide the battery up and pull it towards you. 4. During installation, gently insert the battery vertically and lock it with the key CHARGING 1. -
Page 14: Connecting Blumil Sport To A Wheelchair
To start connecting BLUMIL SPORT to the wheelchair determine the length of the center bracket. In order to connect BLUMIL SPORT, it is necessary to drive the wheelchair to the front of the bumper [1]. The center bracket hook [2] should be above the rear bar of the wheelchair. - Page 15 Footrest next to the bumper...
- Page 16 Footrest away from the bumper...
-
Page 17: Adjusting The Steering Column Angle
ADJUSTING THE STEERING COLUMN ANGLE To make the ride as comfortable as possible, the distance between the steering wheel and the user should be set accordingly. This can be done by adjusting the angle of the steering wheel. To move the steering column closer or further follow these steps: 1. -
Page 18: Wheelchairs With High Footplates
WHEELCHAIRS WITH HIGH FOOTPLATES As every wheelchair is a bit different and set up to the specific needs of the user, some additional adjustments might be necessary. If you are unable to approach with your wheelchair to the bumper, because of the clamp blocking the footplate it might be necessary to use the provided longer screws (M6x70). -
Page 19: The Ride
THE RIDE Here are some basic rules to read before using the BLUMIL SPORT. It should be used cautiously. Pay special attention to warnings and instructions in this manual. During the first ride on BLUMIL SPORT, start with a flat surface with good grip, free from obstacles. -
Page 20: Blumil Warranty
BLUMIL product. If no such reseller exists, you must contact BLUMIL via email at info@blumil.com. If the part or product in question is found to be defective and warrantable you will be responsible for shipping the part or product back to BLUMIL or the certified reseller from whom you purchased your BLUMIL product.
