Summary of Contents for Tyco Security Products Illustra Flex IFS03B1BNWIT
- Page 1 All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Camera Quick Start Guide...
- Page 2 Under copyright laws, the contents of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine-readable form, in whole or in part, without prior written consent of Tyco Security Products. © 2017 Tyco Security Products. All rights reserved. Tyco Security Products 6600 Congress Avenue Boca Raton, FL 33487 U.S.A.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents Illustra Flex 3MP Outdoor Bullet Camera Product features Product overview Installation System requirements Network Connection Default IP Address DHCP Managing cameras with the Illustra Connect tool Network Topology Appendix A: Technical Specifications... - Page 4 All manuals and user guides at all-guides.com Warning • This unit operates at AC 24V/ PoE. • Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. •...
-
Page 5: Illustra Flex 3Mp Outdoor Bullet Camera

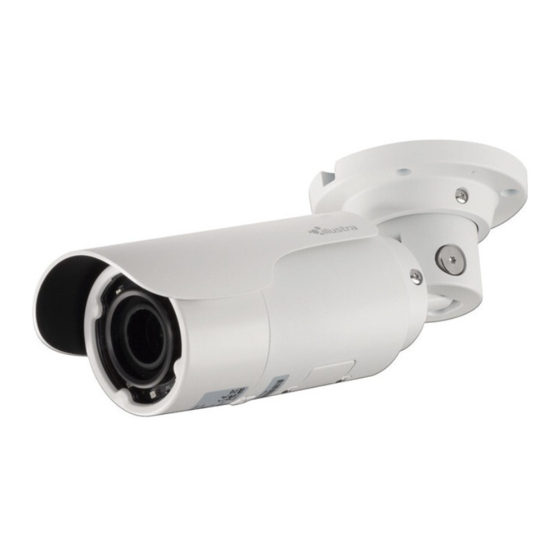

All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Illustra Flex 3MP Outdoor Bullet Camera Product features Lens cases require special care when handling and cleaning to avoid scratches. For information on bubble handling and cleaning, see 8200-1174-01 Bubble Clearing Procedure Application Note. Go to http://www.illustracameras.com/Products/illustra-flex-minidomes.aspx From the Products page, select Illustra Flex Mini-Domes, select Documents, select Application Notes, and select Bubble Handling and Cleaning Procedure. - Page 6 All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Note:The connector cable of the Outdoor Bullet Camera should be contained in a conduit suitable for outdoor use. Figure 3 Camera dimensions (mm) and pictorial index Table 4 Pictorial index descriptions Index Name...
- Page 7 All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Icon Description Alarm Out Audio In Audio Out Power Ground You can find the interior buttons and ports on the base of the Bullet camera. Remove the two screws to open the cover for access to these pins.
-
Page 8: Installation
All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Index number Name Default: returns to factory default by pressing the button for five seconds Reset: system restart When removing the screws for the default/reset cover, ensure you replace and tighten the CAUTION screws to avoid water leaking after adjustment. - Page 9 All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Procedure 1 Mounting the camera Step Action Affix the mounting template to the surface. After you drill the holes, knock in 4 plastic anchors and then lock in the 4 self-tapping screws to fasten the camera to the surface. Figure 8 Mounting the Bullet camera to a ceiling Mount the unit onto the ceiling and fasten it securely as seen in Figure 8 on page 5, or if mounting onto a wall refer to Figure 9 on page 5.
- Page 10 All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Procedure 2 Connecting the wires Step Action Attach the camera to the fixed surface. Pass all the signal cables through the mounting bracket. Connect the power cable to the power plugs with one of the following options: AC 24V: Connect 24V (~) cables to terminals ~AC 24V.
-
Page 11: System Requirements
All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide System requirements The table below lists the minimum requirement to implement and operate an Illustra Flex Bullet camera. Table 11 System Requirements System hardware Intel Pentium 2 2.4GHz or equivalent 1 GB or above Display NVIDIA GeForce 6 Series or ATI Mobility Radeon 9500... -
Page 12: Network Connection
All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Network Connection Default IP Address Since this is a network-based unit, an IP address must be assigned at the very first bootup. The default IP address of the unit is 192.168.1.168 and sub mask is 255.255.255.0. However, if you have a DHCP server in your network, the unit obtains an IP address automatically from the DHCP server so that you do not need to change the IP address of the camera. -
Page 13: Dhcp
All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Procedure 5 Connecting from a computer Step Action Ensure the camera and your computer are in the same subnet. Check whether if the network is available between the unit and the computer by pinging the default IP address. -
Page 14: Managing Cameras With The Illustra Connect Tool
All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Enter the IPv4 Address in the IPv4 Address text box in the form xxx.xxx.xxx.xxx.The default setting is ‘192.168.1.168’ Enter the Network Mask in the Network Mask text box xxx.xxx.xxx.xxx. The default setting is ‘255.255.255.0’... - Page 15 All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Procedure 9 Connecting to the camera using the static IP address Step Action The camera attempts to obtain an IP Address from the DHCP Server. When no DHCP Server is available the camera is assigned a Static IP address of 192.168.1.168.
-
Page 16: Network Topology
All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Network Topology The Illustra Flex cameras deliver video images and audio in real-time using the Internet and Intranet. It is equipped with an Ethernet RJ-45 network interface. The following images illustrate the network topology of the cameras. -
Page 17: Appendix A: Technical Specifications
All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Appendix A: Technical Specifications The table below lists technical specifications of the Flex 3MP Outdoor Bullet camera. General Features Model Type Outdoor Bullet Camera Model No. IFS03B1BNWIT Camera Body Color White... - Page 18 All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide Auto Focus One-Touch IR Correction Optical corrected Day/Night True D/N with ICR Horizontal Angle of View 98ﾟ (Wide); 35ﾟ (Tele) Vertical Angle of View 71ﾟ (Wide); 26ﾟ (Tele) Format 1/2.7"...
- Page 19 All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide SD Card SDXC slot up to 128GB Alarm Inputs Auxiliary Outputs Video Output IP Connector RJ-45 IP66/IP67 pigtail LED Indicators Network, Green LED Reset Buttons Reboot and Return to Defaults Environmental Operating Temperature Range...
- Page 20 All manuals and user guides at all-guides.com Illustra Flex 3MP Outdoor Bullet Quick Start Guide IEEE.802.1x - TLS/PEAP HTTPS (HTTP over TLS) - RFC2818 WS-Security Authentication and Security Multi-level password protection IP address filtering HTTPS encryption User access log RTP - RFC3550 RTSP - RFC2326 Streaming Unicast Streaming...
