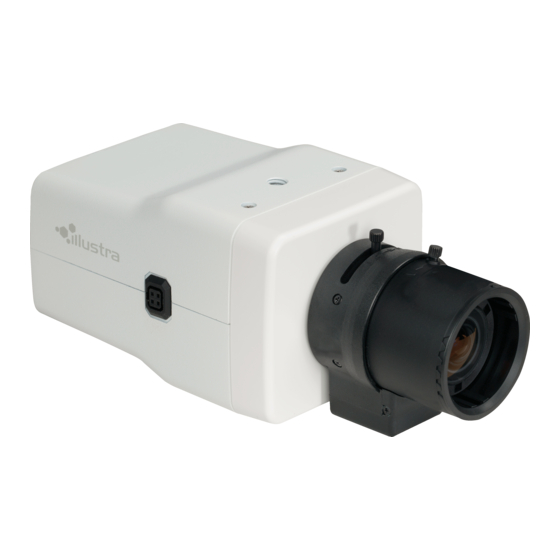

Illustra Flex Series 3MP and 8MP Box Cameras
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Illustra Flex Series and is the answer not in the manual?

Questions and answers

Related Manuals for Tyco Security Products Illustra Flex Series

Summary of Contents for Tyco Security Products Illustra Flex Series

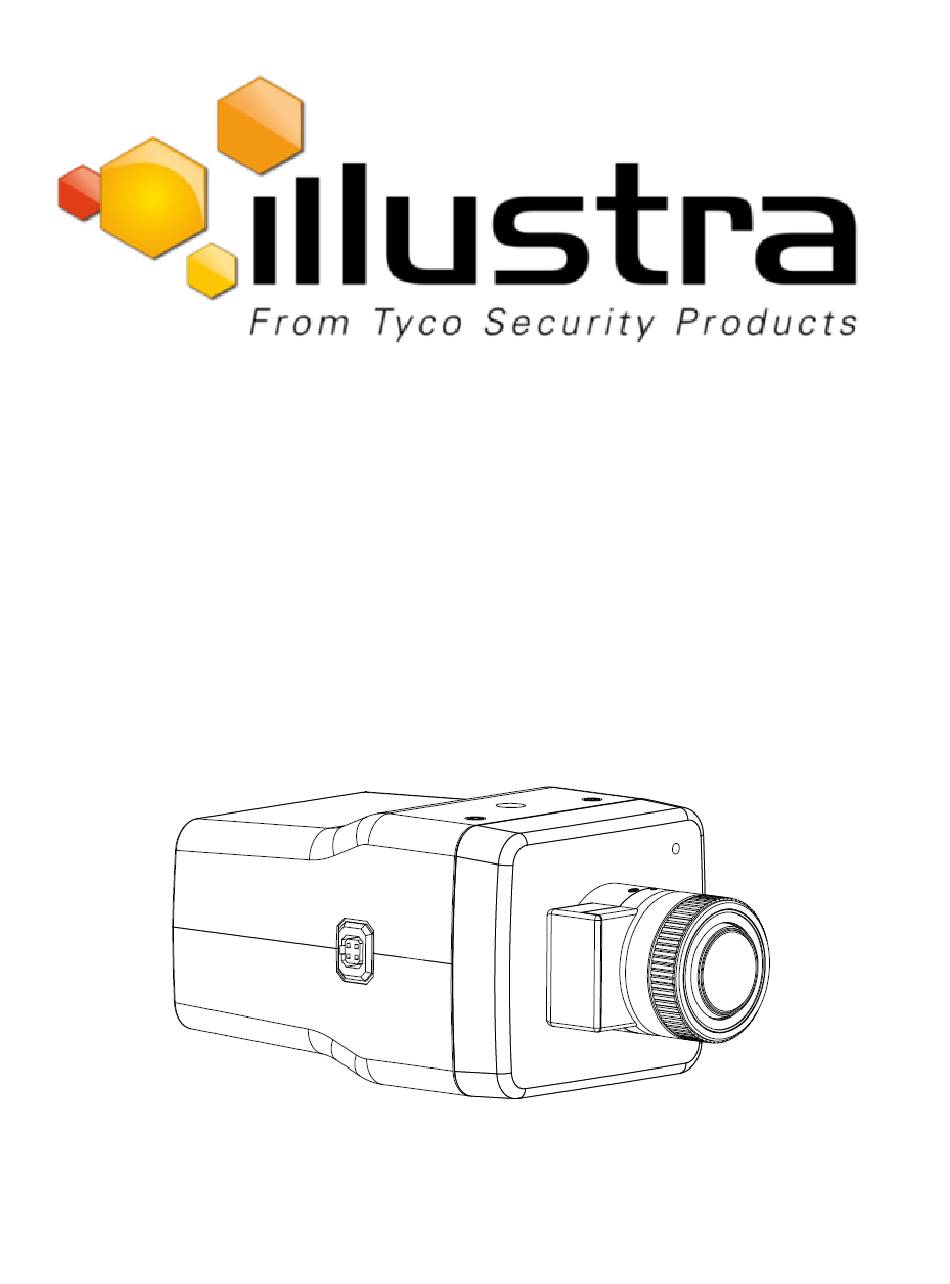

  • Page 1 Illustra Flex Series 3MP and 8MP Box Cameras Quick Start Guide...
  • Page 2 The dealer through whom you originally purchased this product is your point of contact if you need service or support. Our dealers are empowered to provide the very best in customer service and support. Dealers should contact American Tyco Security Products at (800) 507-6268 or (561) 912-6259 or on www.illustracameras.com Trademarks Windows®...

  • Page 3: Table Of Contents

    Table of Contents Illustra Flex Series 3MP and 8MP Indoor Box Camera Product Features Product overview Installation System Requirements Network Connection Default IP Address DHCP Managing cameras with the Illustra Connect tool Network Topology Appendix A: Technical Specifications Appendix B: Stream Resolutions...
  • Page 4 Warning • This unit operates at DC 12V/ AC 24V/ PoE. • Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. • To reduce the risk of fire or electric shock, do not expose the product to rain or moisture. •...

  • Page 5: Illustra Flex Series 3Mp And 8Mp Indoor Box Camera

    Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Illustra Flex Series 3MP and 8MP Indoor Box Camera Product Features Dome camera bubbles require special care when handling and cleaning to avoid scratches. For information on bubble handling and cleaning, see 8200-1174-01 Bubble Clearing Procedure Application Note.
  • Page 6 Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Camera connectors Figure 3 on page 2 and "Connector descriptions" describe the connectors of the camera and their designations. Figure 3 Camera connectors 8200-1456-04 G0...
  • Page 7 Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Table 4 Connector descriptions Index Name Description RJ-45 Ethernet To insert the RJ-45 cable for network connection as well as Power Connector/PoE over Ethernet (PoE) AC/DC To use AC/DC power. Video Out Connection Analog out.

  • Page 8: Installation

    Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Icon Description Audio input Audio output Installation In the box Check everything in the box matches the order form and the packing slip. In addition to his manual, the items below are included in the box. •...
  • Page 9 Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Insert the audio cable and alarm cable to the unit, and connect the network cable to the RJ- 45 terminal of a switch. Note:The power source needs to be NEC Class 2 or LPS. The PoE connection should be provided by a UL Listed product and the connections shall be made in accordance with Article 800 of the NEC or local regulations.

  • Page 10: System Requirements

    Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide System Requirements The table below lists the minimum requirements to implement and operate an Illustra Flex Box Camera. Table 7 System Requirements System Hardware Intel Pentium 4 2.4GHz or equivalent 1 GB or above Display NVIDIA GeForce 6 Series or ATI Mobility Radeon 9500...

  • Page 11: Network Connection

    Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Network Connection Default IP Address Since this is a network-based unit, an IP address must be assigned at the very first bootup. The default IP address of the unit is 192.168.1.168 and sub mask is 255.255.255.0. However, if you have a DHCP server in your network, the unit obtains an IP address automatically from the DHCP server so that you do not need to change the IP address of the camera.

  • Page 12: Dhcp

    Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Procedure 3 Connecting from a computer Step     Action Ensure the camera and your computer are in the same subnet. Check whether if the network is available between the unit and the computer by pinging the default IP address.

  • Page 13: Managing Cameras With The Illustra Connect Tool

    Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Enter the IPv4 Address in the IPv4 Address text box in the form xxx.xxx.xxx.xxx.The default setting is ‘192.168.1.168’ Enter the Network Mask in the Network Mask text box xxx.xxx.xxx.xxx. The default setting is ‘255.255.255.0’...
  • Page 14 Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Procedure 7 Connecting to the camera using the static IP address Step     Action The camera attempts to obtain an IP Address from the DHCP Server. When no DHCP Server is available the camera is assigned a Static IP address of 192.168.1.168. Open Microsoft Internet Explorer and enter the URL of the camera as 192.168.1.168.
  • Page 15 Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Lens Selection You can select the lens on the Illustra Flex Box cameras. The lens models supported appear on the Lens Selection tab of the Video menu. Note:Refer to the on-line data sheets at www.illustracameras.com for supported lens models details. Procedure 10 Perform a Lens Selection Step     Action Select Setup on the Web Interface Banner to display the setup menus.

  • Page 16: Network Topology

    Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Network Topology The Illustra Flex cameras deliver video images and audio in real-time using the Internet and Intranet. It is equipped with an Ethernet RJ-45 network interface. The following images illustrate the network topology of the cameras. Figure 9 Illustra Flex Box Camera Network Topology Type I Figure 10 Illustra Flex Box Camera Network Topology Type II 8200-1456-04 G0...

  • Page 17: Appendix A: Technical Specifications

    Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Appendix A: Technical Specifications The table below lists technical specifications of the Illustra Flex Indoor Box camera. General Features Model Type Illustra Flex Indoor Box Camera Model No. IFS03XNANWTT / IFS08XNANWTT Camera Body Color White Vandal Resistant Rating...
  • Page 18 Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Audio Sampling Bits 16-BIT Input Type SE/Line/MIC Input Impedance 20K/Attenuation = 0 dB Maximum Input Level 2Vp-p Input connector Terminal Block Output Type Impedance Hi impedance Maximum Output 2Vp-p I/O Interfaces Micro SD/SDXC slot up to 128GB, Class 10 or Micro SD Card higher.
  • Page 19 Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide IPv6 - RFC2460 TCP - RFC973 Transport Layer UDP - RFC768 HTTP/HTTPS - RFC2616 Data Transmission FTP - RFC959 SFTP DHCP - RFC2131 Zeroconf - RFC3927 Static IP Network Address Configuration address LLDP NTP - RFC1305...

  • Page 20: Appendix B: Stream Resolutions

    Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Appendix B: Stream Resolutions Flex Gen 2 3MP and Flex 8MP Streaming Combinations Table 11 on page 16 and Table 12 on page 17 provide information for the stream resolutions and supported FPS of the Flex Gen 2 3MP cameras herein.
  • Page 21 Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Table 12 Flex 3MP Stream Set B (all resolution, codes and frame rate combinations of Stream 1, 2 and 3 are valid) Frame Frame Stream Frame Stream Stream TWDR Codecs Rates Codecs Rates...
  • Page 22 Illustra Flex 3MP and 8MP Indoor Box Quick Start Guide Table 13 Flex 8MP Box Camera resolutions Flex 8MP Box camera resolutions Stream 1 Stream 2 Stream 3 (3840x2160) 4K 16:9 (1280x720) 720p (640x360) nHD 16:9 (3264x1840) 16:9 (1024x576) PAL+ 16:9 (480x360) 480 4:3 (2592x1944) 4:3 1-15...
