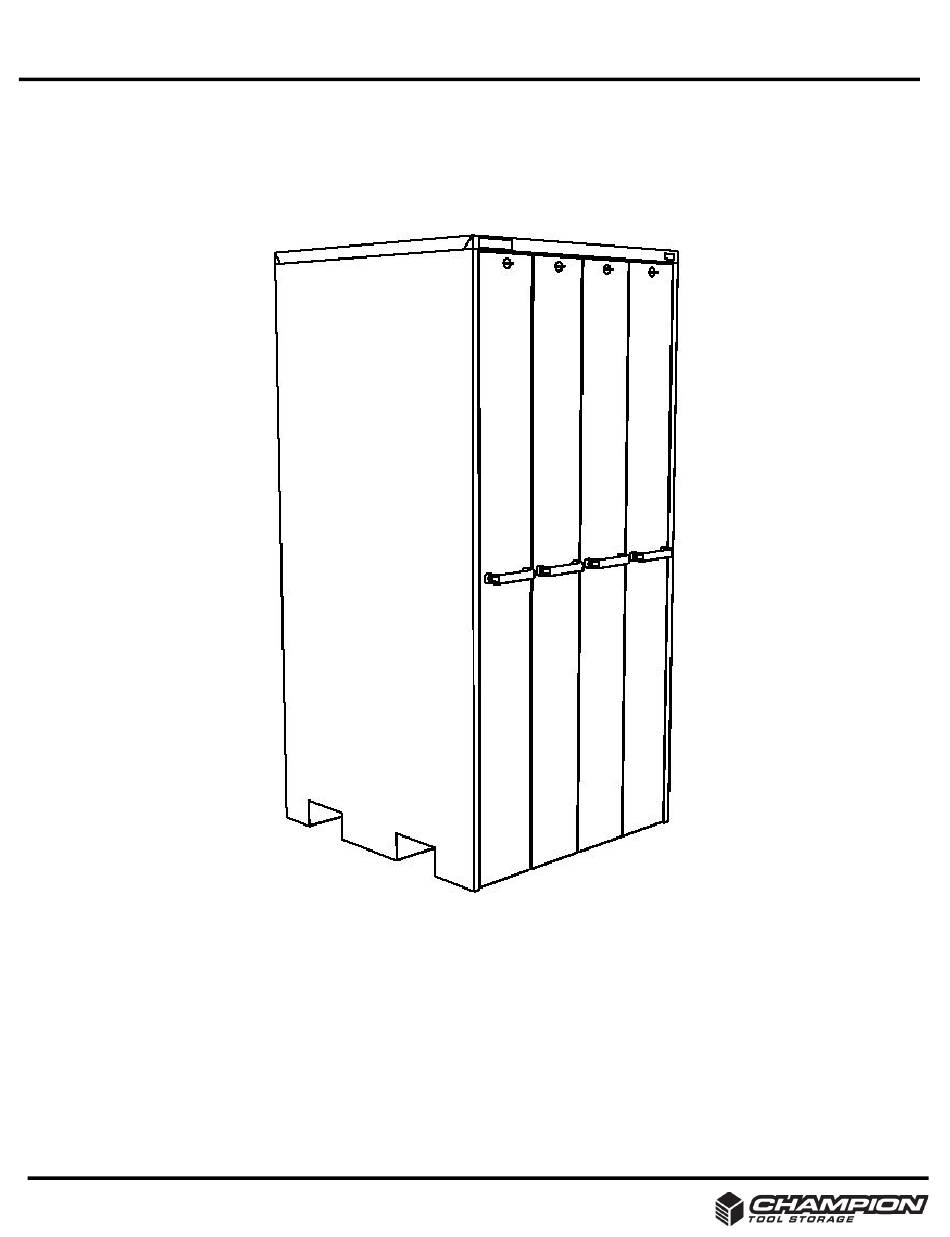

Proper Use AND INSTALLATION FOR CHAMPION VSC SERIES CABINETS
The following instructions will provide you with a guide for installation and usage
for the VSC Series cabinets. If at any time you need guidance or help, please do
not hesitate to call us. Thanks again for choosing Champion Tool Storage.
QUESTIONS
Champion Tool Storage
3070 Lower Mill Dr.
Hood River Oregon 97031
W: www.championbuilt.com
E-mail: info@championbuilt.com
Phone: 866-391-4200
8 AM - 5PM, PST, Monday-Friday
THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY
PART NO. 1000619
Advertisement
Table of Contents
Related Manuals for Champion VSC Series
Summary of Contents for Champion VSC Series
- Page 1 The following instructions will provide you with a guide for installation and usage for the VSC Series cabinets. If at any time you need guidance or help, please do not hesitate to call us. Thanks again for choosing Champion Tool Storage.
- Page 2 Installation Use forklift or pallet jack to move and set cabinet in place. Check to make sure the thumb turn latches(See Detail A) are in the locked position before moving unit. Cabinet must be locked while moving. Only move the cabinet using the fork pockets shown.
- Page 3 Installation Add or removing tool holder or standard shelves. See step 2. Adjusting for Broach Tooling. Your cabinet will deliver ready to be used. You will need to work with your sales associate to get the correct layout for the broaches you wish to store as there are many options. To insert a broach, remove the Holding Bracket(see Detail C) from the rail by lifting the bracket upwards.
- Page 4 Installation Adjusting the drawer face left to right. If you need to adjust the drawer face left or right, turn the screw in the drawers slide underneath the drawer unit, see Fig 1 using the supplied wrench. To adjust the drawer height, use the screw underneath the drawer, see Fig.
- Page 5 Proper Use Do not open more than one drawer at a time. 1000lb 1000lb Max load per drawer, evenly distributed Do not drop items into drawers, damage may occur. Do not use shelves as a step, or seat, injury or damage may occur. THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY PART NO.
- Page 6 Doing so may casuse personal injury.. Champion at buyer’s expense or provide transportation charges prepaid. Champion’s sole obligation under its warranty shall be, at its option, to repair, replace or refund the price of any product thereof which is proved to violate such warranty.In no event shall Champion be liable to the buyer for special,...
