- Page 1 Product Manual Digital Conference System...
-
Page 2: Table Of Contents
5.6.1 Language settings ................5.6.2 Volume setting ..................5.6.3 Voice mode ..................5.6.4 Address setting ................... 5.6.5 System parameters ................6. CS-301VM Conference central controller parameters ..................7. Common faults and maintenance ..............8. Safety instructions ..................9. After-sales service .................. -
Page 3: Introduction
Digital Conference System 1. Introduction 1.1 Summary The Conference central controller is the core part of the digital conference system, which manages and monitors the entire conference system, and powering the entire conference system. Conference central controller can work independently, in the need for more complex meeting management and control, you can connect the computer, with the upper computer software to complete. -
Page 4: Cs-301Vm Functional Characteristics
ID numbers. Twisted-pair cable connection to facilitate the installation and removal of the system. 1.4 CS-301VM Functional characteristics Centralized processing and control of statements, voting and other conference unit data. Support 32K audio sampling frequency, the frequency response of each channel can reach 20Hz~20KHz. -
Page 5: Product Packaging Composition
Digital Conference System 1.5 Product packaging composition CS-301VM x 1 Hanging ear x 2 Black screw x 6 Power cord x 1 Serial line x 1 Machine foot x 4 Product brochure x 1... -
Page 6: Panel Description

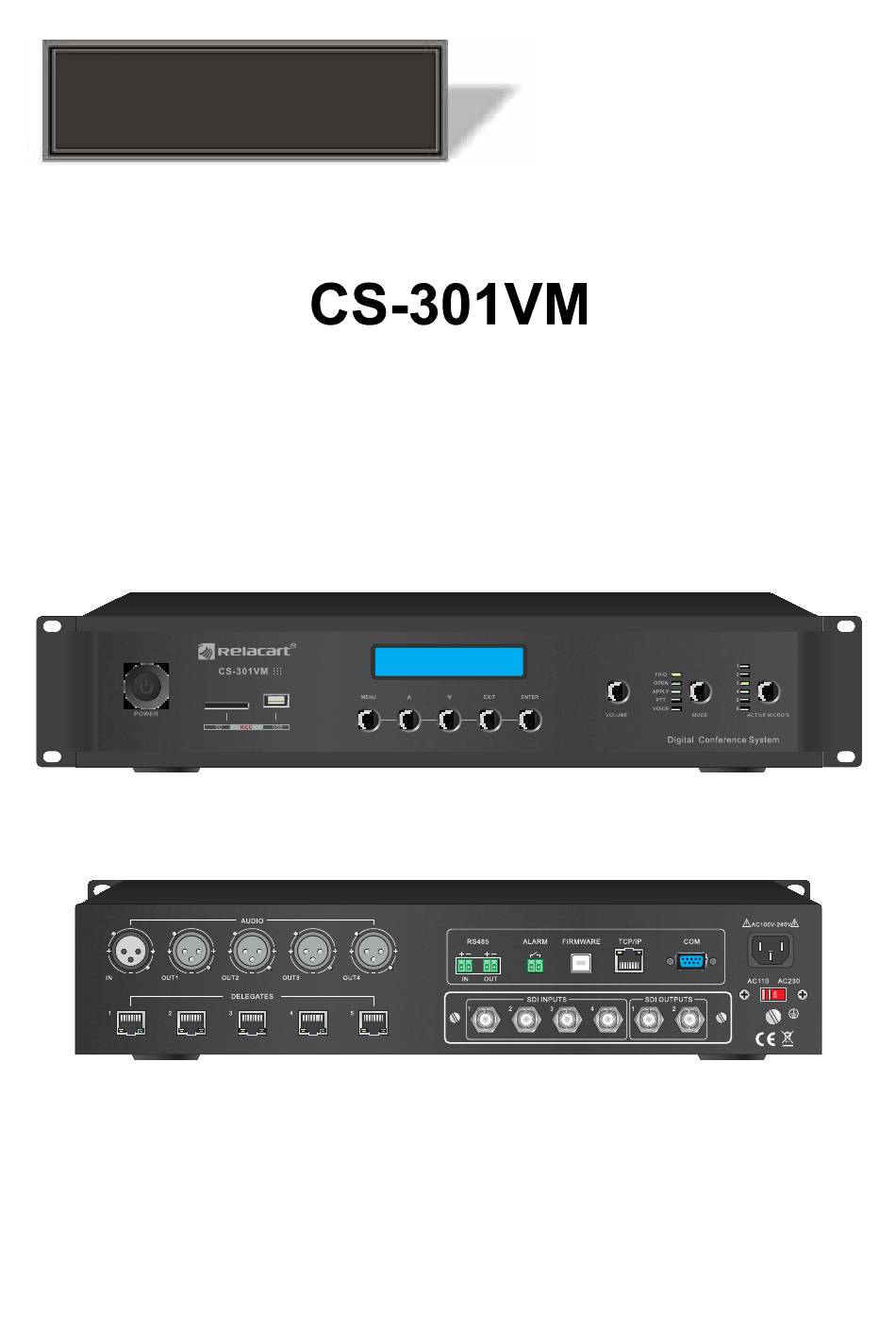

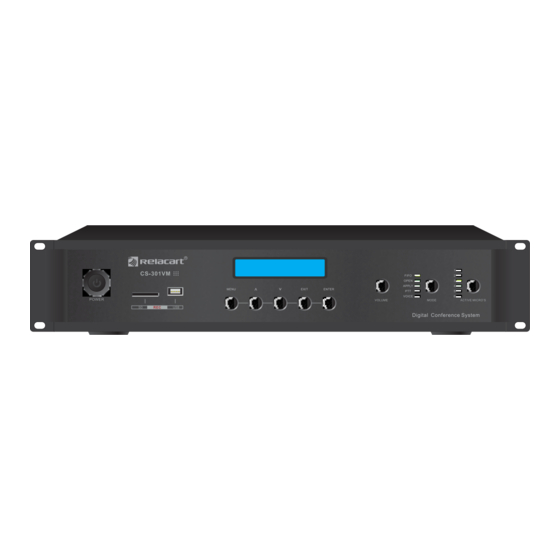

Digital Conference System 2. Panel description 2.1 Front panel description 1) POWER switch 2) The SD card and the USB flash drive card slot insert the memory card to store the recording content. 3) Function key a. MENU: After the initialization of the interface, press this button to return to the main menu interface. -
Page 7: Rear Panel Instructions
Digital Conference System 2.2 Rear panel instructions ① For connecting the conference unit ② Audio interface (XLR) a. Audio signal input and background music interface b. Audio signal input interface, output background music or microphone sound. ③ SDI video signal input connector ④... -
Page 8: Connection
Digital Conference System 3. Connection 3.1 System connection diagram... -
Page 9: Connect With Conference Unit
Digital Conference System 3.2 Connect with conference unit CS-301VM conference main controller has 5 channels of output interface, the conference unit comes with two RJ45 interfaces, the central controller and the conference unit connection, just use twisted-pair cable to connect the RJ45 interface of the first conference unit and the central controller output interface. -
Page 10: Connect With Camera
Protocol:Conference central controller Baud Rate: 9600, Support Camera Protocol: PELCOD_D / P Protocol. CS-301VM conference central controller support camera tracking function, adjust the camera ID, baud rate and protocol, and then the correct connection as shown below, you can use the upper computer software or keyboard to adjust the camera tracking position. -
Page 11: Connect With Alarm Device
Conference Central Controller Baud Rate: 9600 3.5 Connect with alarm device CS-301VM conference central controller support alarm linkage function, when the alarm port access + 5V voltage signal, all the conference unit microphone is turned off. LCD display "ALARM", we cannot do operation on the conference unit;... -
Page 12: Connect With Pc Console
Digital Conference System 3.6 Connect with PC console In addition to be controlled by the central controller (CS-301VM), the conference system can be also controlled by the corresponding upper computer software. Through the TCP / IP port or RS232 serial port to choose... - Page 13 Digital Conference System Mute Chairman Open Priority priority setting Construction Unit status Number of speakers Voting result voting result is setting public speaking time The speech Regular reminder time limit setting statements Custom mode first in first out open Camera Camera tracking Standard mode tracking...
-
Page 14: Boot Initialization
Digital Conference System 4.1 Boot initialization Press the power switch to supply power to the conference central controller, then the conference central controller LCD display shows the boot initialization information, as shown: Full Digital conference System Initializing ... After initialization, LCD screen appears "main menu" "Mic No." "speech mode"... -
Page 15: Main Menu
Digital Conference System 1) Press the up and down keys to switch to "Speech mode" 2) Press "Enter" to enter the speech mode setting 3) Press the up and down keys to switch speaking mode, optional speaking mode: Answer in race, queue, apply to speak, press to speak, voice activated. -
Page 16: Chairman Priority Setting
Digital Conference System 1.Prtority Setting Main Menu 2.Unit Status · Press "Menu" key to enter the main menu. · Press "Enter" key to enter the setting interface of the corresponding menu item, press this key to confirm the selection. · Press ∧ (up) ∨ (down) key to switch among the various menu items; when setting the speaking capacity, the capacity value can be adjusted;... -
Page 17: Unit Status
Digital Conference System Note: Mute: Press the Chairman's priority key to mute the microphone of the other delegate unit (the lamp blinks in green); after the priority key is released, the microphone will resume to be on and the delegate unit can speak. -
Page 18: Camera Tracking Settings
Digital Conference System 2) Press the up and down keys to switch between "On" and "Off". Switch to "OFF" and press "Enter" to return to the main menu and switch to "On" to enter the following interface. Speaking Time Countdown Warning 00:00 3) Press the up and down keys to switch the setting item. - Page 19 Digital Conference System Custom mode: From the interface below, press up and down keys to switch to "Custom Mode", press "Enter" key to enter the following interface: Custom Mode · The system default custom tracking setting is "No". Custom tracking provides customers with a freely developed platform to connect the third- party control equipment to the "RS485 OUT"...
-
Page 20: Recording Setting
Digital Conference System 5.5 Recording setting In the main menu interface, press the up and down keys to switch the menu item, select "6. Recording Settings", press "Enter" key to enter the following interface: Storage · Record Setting Open A) Store settings Press up and down keys to switch between "open recording"... -
Page 21: System Setting
Digital Conference System Use the up and down keys to switch between "Start" and "Stop" and press "Enter" to confirm the selection. When inserting a storage device, the storage capacity and remaining recording time of the device will automatically pop up. The display will quit automatically after about 30s, and return to the previous display interface. -
Page 22: Volume Setting
Digital Conference System 3.English · Language 4.Pycckuu System menu display language options: Chinese, English. Press the up and down keys to switch, press the "Enter" key to select the mode, the system default language selection is "English". 5.6.2 Volume setting Press up and down keys to switch to "2. - Page 23 Digital Conference System 3) Background volume: The background volume is the volume of the background music output. The adjustment range is between -20dB ~ 0dB. Press the up and down keys to enter the "Music volume" and press the "Enter" key to enter the following interface: -20dB Output VOL...
-
Page 24: Voice Mode
Digital Conference System 5) Unit volume The unit volume is the output volume of the built-in speaker of the conference unit. The adjustment range is between -30dB and 0dB. Press up and down keys to enter "unit volume", press "Enter" key to enter the following interface: -30dB Unit Volume... -
Page 25: System Parameters
Digital Conference System Current Address Disp Addr 2) After entering the setting address state, all the indicator light on the conference unit flashes, press any button except the chairman unit priority key, the indicator light is off, the LCD screen shows "address is set", the conference unit address is set successfully, The control panel LCD displays the address of the currently set conference unit. - Page 26 Digital Conference System About: Press Up and Down keys to switch between "Factory Setting" and "About", switch to "About" and press "Enter" to enter the following interface： Full Digital Conference System Machine Type D-3002 Software Vx.x.x Hardware Vx.x You can check the machine type, software version and hardware version.
-
Page 27: Cs-301Vm Conference Central Controller Parameters
Digital Conference System 6.CS-301VM Conference central controller parameters CS-301VM Voltage 110-240AC Maximum 360W 50/60Hz output power Sampling 32KHz Frequency 20Hz-20KHz frequency response 〉80dB Signal to Total harmonic <0.05% noise ratio distortion >1kΩ XLR output 12dBV XLR output level impedance Static power... -
Page 28: Common Faults And Maintenance
Digital Conference System 7.Common faults and maintenance 1) When the panel keys cannot be operated, the central controller may be online, disconnect the central controller and the PC console, then restart the central controller. 2) Cannot connect with PC console through serial port cable or network cable a) There is a possibility that the input cable is disconnected or the connection is poor. -
Page 29: Safety Instructions
Digital Conference System 8. Safety instructions 1. Please read this safety precaution before installing and using the equipment 2. Please keep your safe operation guide for reference later 3. Observe the "Warnings" section in all equipment operating instructions 4. Cleaning equipment: Before cleaning the equipment, please turn off the power, disconnect the connected system unit, please use a dry, soft cloth to clean 5. - Page 30 Digital Conference System CAUTION: To reduce the risk of electric shock,DO NOT open covers,no user serviceable partsinside.Refer servicing to qualified servicepersonnel only. The lightning marker is a reminder that the uninsulated dangerous voltage that appears in the user's device can cause an electric shock The exclamation mark in this triangle is a reminder that the user should operate and maintain the operation and...
-
Page 31: After-Sales Service
Digital Conference System 9. After-sales service (1) Abnormal conditions appeared in your conference system, please follow the maintenance of the manual to check the common faults. Warranty caused by the transport costs borne by the customer. (2) Please call our after-sales service department, and inform the following: Your product model and name;...
