Summary of Contents for RELACART CS-200

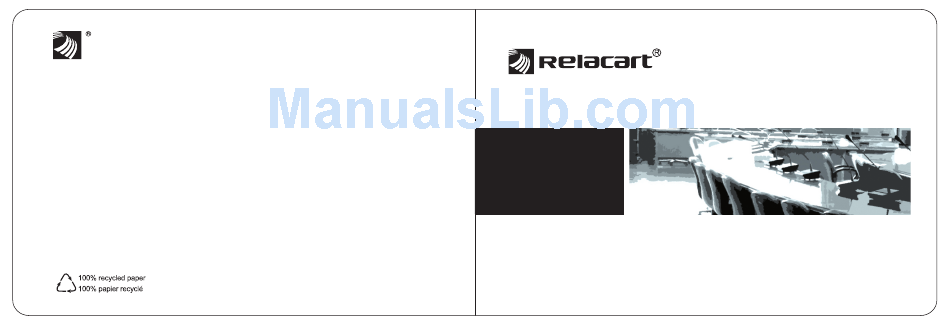

- Page 1 CS-200 conferencing discussion system Operating Instructions...
-
Page 2: Table Of Contents
Table of Contents Thank you for choosing Relacart's conferencing Discussion System. 1.Safety Precautions… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …... -
Page 3: General Description
General Description CS-200 conference system with easy installation and mounted, is an ideal choice for a variety CS-200C Chairman Unit of audio discussion conference applications, such as boardrooms, conference halls, houses · of worship,universities and all type of public institutions. It has strong ability to provide multi- Delicate and fashion design, easy to use. -
Page 4: Features
Features 1.Central Controller Unit CS-200M Front Panel Rear Panel AUTO ACTIVE MICS ①Power Input: IEC type connector for 90V/240V 50/60Hz 20W without user adjustment. ①Line input level ②4 channels microphone input: each channel can be connected up to 20 speaking units. ②Line output level ③Unbalanced Output Jack: 1/4”(6.3mm) phone jack. -
Page 5: Chairman Unit Cs-200C
2.Chairman Unit CS-200C [Top] ①Microphone in-use indicator: Lights when the microphone is turned on (for speech) and flashes when the battery level is low. ②Microphone: User either standard long 420mm or longer dedicated microphone. ③Power indicator: Lights when the power of the central controller is switched ON. ④Monitor speaker: Speech input from the other Chairman or Delegate units and the Central units is output from this speaker. - Page 6 3.Chairman Unit CS-200D [Rear] [Top] ⑦Microphone connection jack: Connect the microphone to the central controller. [Right and Left side] ①Microphone in-use indicator: Lights when the microphone is turned on (for speech) and flashes when the battery level is low. ②Microphone: User either standard long 420mm or longer dedicated microphone. ③Power indicator: Lights when the power of the central controller is switched ON.
-
Page 7: System Connection Examples... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... P12
⑦Microphone connection jack: Connect the microphone to the central controller. Speaker Power Amplifier Speaker [Right and Left side] CS-200 ⑧ Headphone jack: Connect a headphone to this jack (mini-jack). Connecting the headphone cuts off the output from the monitor speaker. ⑨... -
Page 8: Specifications
Specifications CS-200M CS-200C /CS-200D Electricity Electricity Electric Voltage for Power: AC110-240V 50/60Hz Current consumption 65W Frequency response 85Hz-15KHz Chairman/delegate unit connector Round DIN-8P (x4) Current Consumption Max:85mA Tel coupler connector Round DIN-8P (x1) Power Consumption 2X300mW Audio input RCA (x2) Microphone Input Super-Cardioid microphone Audio output RCA (x2) Earphone Output 3.5mm earphone jack...
