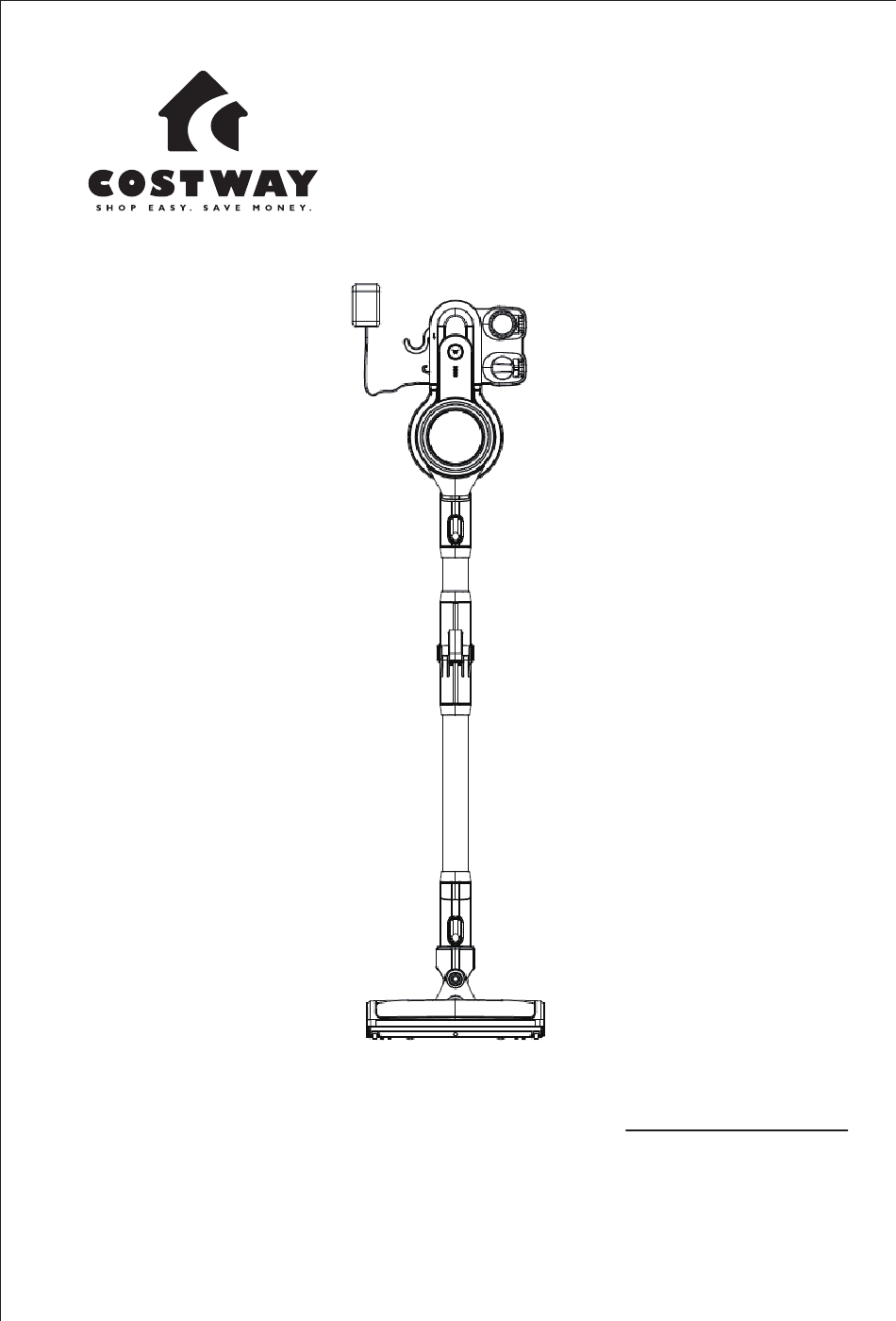

- Page 1 USER'S MANUAL Vacuum Cleaner GX10006US...
- Page 2 1. Important Safeguards IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTRUE REFERENCE. 1.1 This appliance has been designed for domestic dry vacuum cleaning only. Do not pick up liquids or use on wet surfaces for fear of damage to the appliance. 1.2 Never immerse the charger or unit in water to avoid danger.
- Page 3 1.12 The appliance only can be used by children or persons with reduced physical capabilities if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. 1.13 Misuse or use of any accessory or attachment other than manufacture’s recommended, may present a risk of personal injury.
- Page 4 Charger Main Unit Charger Stand HEPA Filter Small Brush Filter Screen Cover Flat Crevice Nozzle Dust Cup Carpet Brush Flodable Tube Battery Pack 3.Product Assembly For the convenience of transportation and storage, main unit, carpet brush, flodable tube, charger stand, small brush, flat crevice nozzle are packaged separately.
- Page 5 flodable tube and main unit assembly When the flodable tube and the carpet brush are assembled,introduce the top end of the flodable tube into the main unit until it clicks into place.
- Page 6 Charger stand assembly Place the charger stand on the selected wall area. And then mount the charger stand to the wall with 4 pieces of M4*20 taper screws. The small brush and flat crevice nozzle can also be hung onto the charger stand when not in use. Handstick Vacuum Cleaner 1.Press the On/off button to turn the device on.
- Page 7 2.Press the power push button to select the desired power level:low or high.It will automatically operate in high power mode.The power level can be adjusted at any moment by pressing this button. Note 1.When battery is fully charged,the battery indicator will light 2.When battery is low,the battery indicator will flash.
- Page 8 3.Press the On/off button again to turn the device off.
- Page 9 Handheld Vacuum Cleaner Once the main unit has been disassembled from the foldable tube, the device can be used handheld. 1.Press the connector release button to disassemble the foldable tube from the main unit. 2.Press the On/off button to turn the device on. 3.Press the power push button to select the desired power level.It will automatically operate in high power mode.The power level can be adjusted at any moment by pressing this...
- Page 10 Accessories The device includes different accessories that allow cleaning different types of surfaces,objects and dirt.Some of them are suitable for the handstick vacuum cleaner and others are preferably used with the handheld one. Carpet Brush Assemble this brush to the handstick vacuum cleaner. This brush can be used to clean carpet.
- Page 11 Accessory For Corners This accessory has been specifically designed for cleaning corners, crevices, floor base, ledges etc.
- Page 12 Foldable Tube Press the release key to bend the aluminum tube. 4. Battery Charging It is important to charge it when the battery is low.While charging,the battery indicator will flash blue.The charging time is 3.5-5.5 hours approx. 1. When hung from the wall bracket,connect the cord to the power supply and allow the device to charge.
- Page 13 5. Cleaning & Maintenance 1.Do not use abrasive scouring pads,powders or cleaners to clean the product. 2.Use a soft, damp and clean cloth to clean the product’s outer housing. 3.Do not let water enter into the vacuum cleaner. 4.Keep the appliance in a cool,dry place and out of reach from children.
- Page 14 Open the cover and empty it.If necessary,shake it gently to remove all the dust.To clean it,use water or soap if necessary to remove dust. 2.The one touch easy-clean dust cup of the vacuum cleaner is fast, convenient and hygienic.(dust disposal: Hold the vacuum cleaner above a dust bin.
- Page 15 Recommendation: It is suggested to clean the dust cup after each use. Filters It is suggested to clean the filters regularly to ensure maximum efficiency.They can be cleaned with warm water.Dry them thoroughly before installing them back in the device. To take filters out: 1.Open the dust cup following the instructions on the before section.
- Page 16 5.Reassemble all the components back in their place. Carpet Brush Recommendation: It is important to clean the brush regularly to avoid hair and other foreign objects from tangling and to prevent blockages. 1.Press the brush release button on the bottom part of the suction base and remove the brush.
-
Page 17: Environment-Friendly Disposal
6.Technical Specification Product Model GX10006US Working Voltage DC 21.6V Rated Power 110W JOD-S-270050A1 Battery Charger Model /HCX1501-2700500U Battery Charger Input 100-240V/50/60Hz 27V/500mA Battery Charger Output Electrical Brush Rated Power 3.5－5.5 h Charging Period ENVIRONMENT-FRIENDLY DISPOSAL You can help protect the environment! - Page 18 JAPAN SPAIN AUSTRALIA With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu bieten! Avec votre évaluation inspirante, COSTWAY continuera à...
