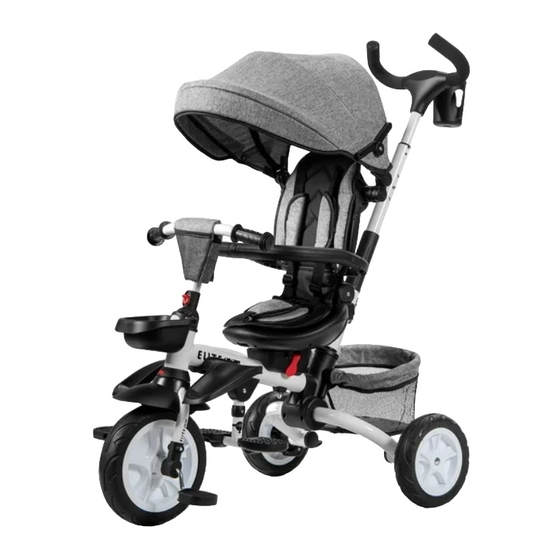

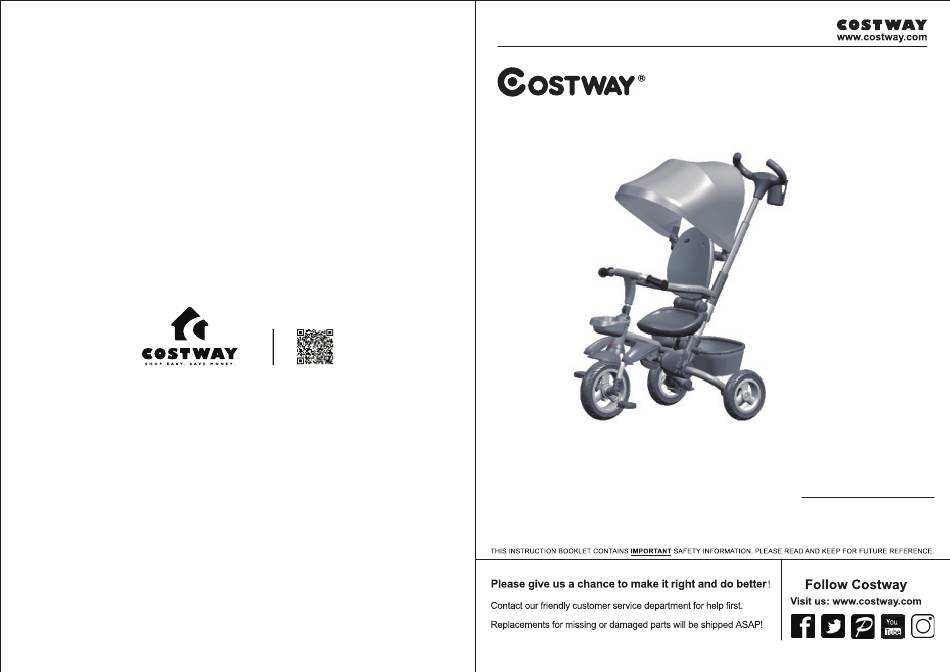

- Page 1 USER’S MANUAL Baby Tricycle TY327814...
- Page 2 Applicable Age: 12-50 Months Executive Standard: GB 14747-2006 Warning: This manual contains important information and must be properly preserved. Non-vehicle, please do not drive on the road. Use it under the care of the guardian. Educate children about safety before using. Exploded Drawing And Components List 10.Awning 9.Cup holder...
- Page 3 8.Push rod 4.Pedal fixed knob 7.Rear storage basket 1.Frame 5.Brake pedal (left + right) 9.Cup holder 2.Front wheel assembly Figure 5 Figure 6 11.Front basket 3. Rest pedal 10.Awning 1. Unfold the rear wheel frame 6.Rear wheel assembly Open the rear wheel frame in the direction of the arrow in Figure 1. Take care to ensure that the rear wheel frame is completely caught in the folding handle.
- Page 4 7. Install the rear storage basket 4.Backrest angle adjustment As shown in Figure 6, insert the rear basket 7 along the dotted line to the end. Adjust the angle of the backrest by pinching the folding handle behind the backrest.
- Page 5 Warning: 1.Please read the manual carefully before installation and use. Keep it properly for future reference. It will tell you the correct installation procedures and operation methods to avoid damage to this product or your child due to incorrect operation methods. 2.This product may have potential sharp edges or sharp points or small parts before assembly, so it must be installed and checked by an adult before use.
