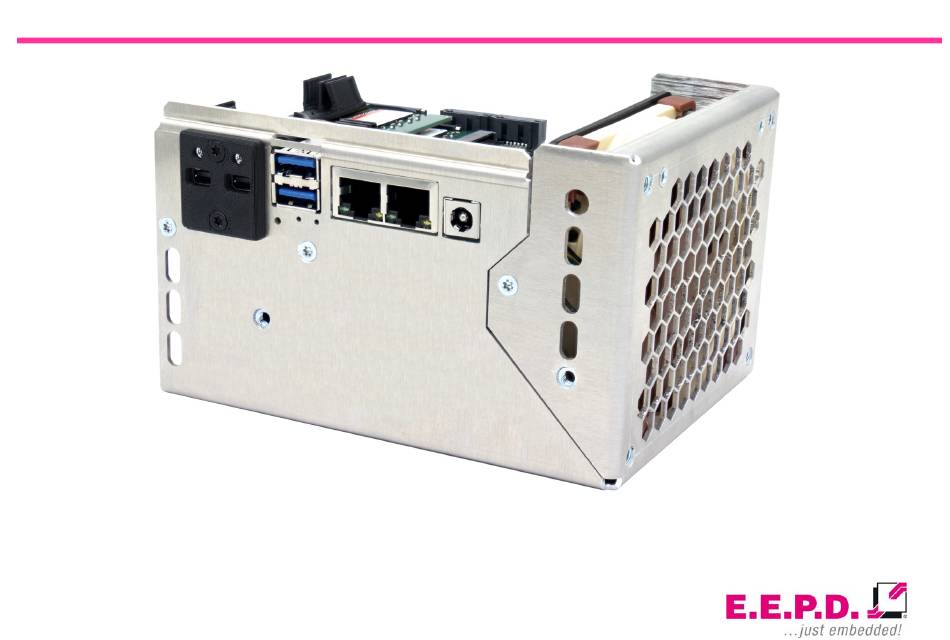

- Page 1 PROFIVE® NUCE_C 54 W – Hardware Reference Manual – P – Rev. 1 Copyright ©2020|2021E.E.P.D. GmbH. All rights reserved.
-
Page 2: General Notes
Fax: +49 8136 2282 – 109 for any loss or damage of any nature resulting from the usage of or from Web: https://www.eepd.de reliance upon it. E-Mail: sales@eepd.de We are thankful for all suggestions or improvements at any time. - Page 3 PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Copyright Notice Disclaimer © Copyright 2020|2021 E.E.P.D. GmbH. ALL RIGHTS RESERVED! This document is provided for the general information of the customer. It E.E.P.D. GmbH copyrights this document. You may not reproduce, transmit, describes the general functionality of the board and is not considered as transcribe, store in a retrieval system, or translate into any language, in any assured characteristics.
- Page 4 PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 FCC and CE Disclaimer THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES This product cannot be used as a stand-alone product! OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, Therefore, it has to be integrated together with other products like power TO ANY CUSTOMER, CONSUMER, END USER, PURCHASER, OR...
- Page 5 At the end of the lifetime please dispose and/or recycle the components of the device accordingly. Technical Support For technical information about hardware and software please contact: support@eepd.de E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved.
-
Page 6: Table Of Contents
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 SATA Power Connector ............30 Table of Contents eDP Connector – OEM/ODM only..........31 General Notes ....................1 Power Button, Power and SATA LEDs ........32 Used Symbols ....................7 Reset Connector .............. - Page 7 PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Classified Index ..................111 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7...
-
Page 8: Used Symbols
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Used Symbols The yellow ESD sign draws your attention that static sensitive The red danger sign warns you when a wrong or missing action parts of the component could be destroyed. Unpack shielded dramatically endangers your life or health. -
Page 9: Product Description
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Feature Overview Product Description Power Supply In the first chapter you will get a glance of all the integrated features. For Designed for min. 10.8 V to max. 26.4 V (DC) single power supply, 10 A fused further information and a brief description of all possible changes and EMI filtering extensions please refer to the corresponding chapter. - Page 10 PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 USB Support Audio 7 USB ports from the SoC: MIC IN, stereo HP OUT on 3.5 mm headphone Jack 1 Dual-USB 3.1 Gen2 (10 Gb/s), Type A at the front side, Stereo Line IN, stereo Line OUT on internal Molex connector support for USB 2.0 and 3.1, max.
-
Page 11: Environmental Specification
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Environmental Specification Max. Operating Temperature 0 °C to +60 °C ambient, when adequate heatsink/cooling is provided. Other operating temperature ranges upon request. Max. Storage Temperature -40 °C to +85 °C Max. -
Page 12: System Overview
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 System Overview This chapter describes the main hardware components of the NUCEX board. E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Fig. 1: System Overview Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. -
Page 13: Assembly
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Assembly The board must be mounted in a stable case. The mechanical mounting points according to chapter 3.1 must be used. The available sockets and connector for system build-up are specified in chapter 4. -
Page 14: Standard Cooling Solution
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Standard cooling solution Front View Rear View Fig. 2: Front View – standard cooling solution Fig. 3: Rear View – standard cooling solution E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 15: Fig. 4: Side View Left - Standard Cooling Solution
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Side View Fig. 4: Side View left – standard cooling solution Fig. 5: Side View right – standard cooling solution E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 16: Fig. 6: Dimensions Front Side - Standard Cooling Solution
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Dimensions – standard cooling solution Fig. 6: Dimensions front side – standard cooling solution Fig. 7: Dimensions back side – standard cooling solution E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 17: Fig. 8: Dimensions Left Side - Standard Cooling Solution
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Fig. 10: Dimensions bottom side – standard cooling solution Fig. 8: Dimensions left side – standard cooling solution Fig. 9: Dimensions right side – standard cooling solution E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 18: Custom Housing
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Custom housing For OEM/ODM customers only. Front View Rear View Fig. 11: Front View – custom housing Fig. 12: Rear View – custom housing E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 19: Fig. 13: Side View - Custom Housing
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Side View Dimensions for custom housing Fig. 14: Dimensions front side – custom housing Fig. 13: Side View – custom housing Fig. 15: Dimensions back side – custom housing E.E.P.D. -
Page 20: Fig. 16: Dimensions Left Side - Custom Housing
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Fig. 16: Dimensions left side – custom housing Fig. 18: Dimensions top side – custom housing Fig. 17: Dimensions right side – custom housing E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 21: Feature Details
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Feature Details The following schedule contains all the necessary information to connect the board to your peripheral equipment. On the left side of the page, you will see the position on the board (red mark) and on the right side a magnified image of the explained item. -
Page 22: Mini-Dp Connectors
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Mini-DP Connectors Important Note: There are two kinds of DisplayPort cables: Cables for direct connection to a MiniDP monitor with Pin 20 on both ends of the cable connected. -
Page 23: Dual-Usb 3.1 Gen2 Port
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Dual-USB 3.1 Gen2 Port Gigabit Ethernet Dual-Port The Dual-Ethernet socket uses the Intel® 2.5Gigabit Ethernet Controller Intel® i225 ETH1 supports wake-on-LAN. USB 3.1 Gen2 type ports providing max. 900 mA per port. Fig. -
Page 24: Power Connector
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Power Connector For stable operation: Please ensure a system power supply of min. 120 W. Power source must be capable to respond to fast load changes! Supply voltage (PVIN) min. 10.8 V / max. 26.4 V (DC) Fig. -
Page 25: Ddr4 Ram Sodimm Sockets
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 DDR4 SODIMM Sockets Assembly: First slide RAM module into the RAM socket. Then press the module in direction to the board till you hear it snap. Fig. 27: DDR4 SODIMM Socket Detail Fig. -
Page 26: Battery Connector
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Battery Connector Counterpart – plug: MOLEX Pico Blade 0510210200 Signal BATT Tab. 2: Battery Connector Fig. 29: Molex Battery Connector Detail Fig. 30: Molex Battery Connector Schematic E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 27: Audio Connector
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Audio Connector Counterpart – plug: MOLEX Pico Blade 0510211200 Fig. 31: Molex Audio Connector Detail Signal JD_LINE_IN Fig. 32: Molex Audio Connector Schematic LINE_IN_L LINE_IN_R GND_AUDIO For optimum audio performance: N.C. -
Page 28: M.2 Sockets
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 M.2 Sockets M.2 Socket Key E, 22mm x 30mm, PCIe-x1 and USB2 M.2 Socket Key M, 22mm x 42mm, SATA or PCIe-x4 Fig. 34: M.2 Key E Connector Detail Fig. -
Page 29: Rear Usb-C Port
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Rear USB-C Port Audio Jack 3.5 mm Audio Jack provides mono microphone IN and stereo headphone OUT. Support for USB 2.0 and USB 3.1 Gen2 (10 Gb/s). Port provides max. 1.5 A. Fig. -
Page 30: Jumpersetting For Edp Backlight - Oem/Odm Only
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Jumpersetting for eDP Backlight – OEM/ODM only Fig. 39: STL3X1 Detail Signal PVIN -> 10.8V – 26.4V* VDD_BKL VCC_A -> 5V +/- 5% Tab. 4: STL3X1 Fig. 40: STL3X1 Schematic *depends on power in voltage E.E.P.D. -
Page 31: Sata Data Connector
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 SATA Data Connector SATA Power Connector Provides 1.5 A. Fig. 41: SATA Data Connector Detail Fig. 43: Molex SATA Power Connector Detail Fig. 42: SATA Data Connector Schematic Fig. -
Page 32: Edp Connector - Oem/Odm Only
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 eDP Connector – OEM/ODM only Signal Signal N.C. eDP_TX3_N eDP_TX3_P eDP_HPD eDP_TX2_N eDP_TX2_P eDP_TX1_N Fig. 45: eDP Connector Detail eDP_TX1_P eDP_BKLEN eDP_BKLCTL eDP_TX0_N N.C. eDP_TX0_P N.C. VDD_BKL*² Fig. 46: eDP Connector Schematic eDP_AUX_P VDD_BKL*²... -
Page 33: Power Button, Power And Sata Leds
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Power Button, Power and SATA LEDs Reset Connector Press power button once to start up. Press power button to shut down into S3/S4 (Standby/Hibernate; depending on OS setting). Hold power button (>... -
Page 34: Power Button Connector
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Power Button Connector Press power button once to start up. Press power button to shut down into S3/S4 (Standby/Hibernate; depending on OS setting). Hold power button (> 4 sec.) to shut down into S5 (OFF). Counterpart –... -
Page 35: Fan Connectors
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 FAN Connectors SoC FAN Connector Fig. 54: Molex FAN Connector Schematic Counterpart – plug: MOLEX Pico Blade 0510210400 Fig. 52: Molex SoC FAN Connector Detail Signal SSD FAN Connector VDD_FAN * FAN_TACHO FAN_PWM... -
Page 36: Rs232/485 Connectors
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 RS232/485 Connectors Counterpart – plug: MOLEX Pico Blade 0510211000 RS232 cable ordering number: W-RS232M1B RS485 cable ordering number: W-RSXXXM1A Signal Fig. 55: Molex RS232/485 Connector Detail DCD_m DSR_m Fig. -
Page 37: Feature Connector
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Feature Connector Counterpart – plug: Status LED and GPIO Connector. MOLEX Pico Blade 0510211200 Signal 3.3V +/- 5% P12V_FAN / N.C. * GPIO0 *² GPIO1 *² GPIO2 *² GPIO3 *²... -
Page 38: Usb Internal Connector
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 USB Internal Connector Counterpart – plug: MOLEX Pico Blade 0510210800 Signal VCC_USB2_6_INT -> 5V +/- 5% fused, 900mA USB2_6_INT_N USB2_6_INT_P Fig. 59: Molex USB internal Connector Detail VCC_USB2_7_INT -> 5V +/- 5% fused, 900mA USB2_7_INT_N Fig. -
Page 39: Bios
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS The BIOS ROM has a built-in Setup program that allows users to modify the basic system configurations. This type of information is stored in battery-backed CMOS RAM, so that Setup information is retained when the power is turned off. The following description shows a snapshot of the BIOS setup. -
Page 40: Main Menu
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Main Menu Once you enter the Setup Utility, the Main Menu will appear on the screen. Fig. 61: Main Menu 1 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 41: Fig. 62: Main Menu 2
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Fig. 62: Main Menu 2 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 42: Tab. 13: Main Menu
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description Select the current default language used by the Language <English>* InsydeH2O. This is the help for the hour, minute, second field. System Time No options Valid range is from 0 to 23, 0 to 59, 0 to 59. -
Page 43: Advanced Menu
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Advanced Menu Fig. 63: Advanced Menu E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 44: Tab. 14: Advanced Menu
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description PCI Express Configurations No options PCI Express Configurations Boot Configuration No options Configures Boot Settings. Peripheral Configuration No options Configures the peripheral devices. Select the IDE controller and hard disk drive type IDE Configuration No options installed in your system... -
Page 45: Fig. 64: Pci Express Configurations
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 PCI Express Configurations Fig. 64: PCI Express Configurations E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 46: Tab. 15: Pci Express Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled> <Performance> <Balanced-High> PSPP Policy PCIe speed power policy <Balanced-Low>* <Power Saving> <Auto> Tab. 15: PCI Express Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 47: Fig. 65: Boot Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Boot Configuration Fig. 65: Boot Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 48: Tab. 16: Boot Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Off> Numlock Selects Power-on state for Numlock <On>* Tab. 16: Boot Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. -
Page 49: Fig. 66: Peripheral Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Peripheral Configuration Fig. 66: Peripheral Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 50: Tab. 17: Peripheral Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled>* Enable/Disable TPM physical presence. Need to Trust Platform Module <Enable discrete TPM> reboot when set from disable to enable before <Enable firmware TPM> selecting TPM Operation. -
Page 51: Fig. 67: Ide Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 IDE Configuration Fig. 67: IDE Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 52: Tab. 18: Ide Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled> AUTO: Auto detect the SATA controller. SATA <Auto>* DISABLED: Disable the SATA controller <IDE> SATA Configure as Set SATA Configure Type <AHCI>* Sata Controller No options Enable/Disable SATA Controller Serial ATA Port 0 [Not Installed]... -
Page 53: Fig. 68: Sata Controller
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 SATA-Controller Fig. 68: SATA Controller E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 54: Tab. 19: Sata Controller 0
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled> SATA Port 0 SATA Port 0 Enable/Disable <Enabled>* <Disabled> SATA Port 1 SATA Port 1 Enable/Disable <Enabled>* <Disabled> SATA Port 0 SATA Port 0 Enable/Disable <Enabled>* Tab. -
Page 55: Fig. 69: Usb Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 USB Configuration Fig. 69: USB Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 56: Tab. 20: Usb Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description Enable/Disable – VCC of USB Jacks No options Enable/Disable – USB VCC Tab. 20: USB Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 57: Fig. 70: Usb Ports
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Enable/Disable – VCC of USB Jacks Fig. 70: USB Ports E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 58: Tab. 21: Usb Ports
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description In order to not exclude yourself from using input <Disabled> USB 3.1 Rear VCC device in OS, at least one USB port should be <Enabled>* enabled at all times! In order to not exclude yourself from using input... -
Page 59: Fig. 71: Chipset Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Chipset Configuration Fig. 71: Chipset Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 60: Tab. 22: Chipset Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <32> <64>* <96> <128> PCI Latency Timer PCI Latency Timer <160> <192> <224> <248> Tab. 22: Chipset Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 61: Fig. 72: Acpi Table
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 ACPI Table Fig. 72: ACPI Table E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 62: Tab. 23: Acpi Table
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description High Precision Event Timer is supported in Windows Vista or above. HPET controller should <Disabled> HPET - HPET Support not been seen in Windows XP no matter <Enabled>* enable/disable in SCU. -
Page 63: Fig. 73: Cpu Related Setting
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 CPU Related setting Fig. 73: CPU related setting E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 64: Tab. 24: Cpu Related Setting
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled>* SVM support Enable/Disable SVM support <Enabled> Tab. 24: CPU Related setting E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. -
Page 65: Fig. 74: Nuce Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 NUCE options – Watchdog Fig. 74: NUCE options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 66: Tab. 25: Nuce Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled>* PIC Watchdog Enable/Disable the PIC watchdog <Enabled> Adjust value [30-254] Seconds before PIC watchdog times out. Watchdog Timeout (s) Default value [40] Range 30-254 seconds. Tab. -
Page 67: Fig. 75: Sio Sch3223
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 SIO SCH3223 Fig. 75: SIO SCH3223 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 68: Tab. 26: Sio Sch3223
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description UART Port 1 Configuration No options UART Configuration UART Port 2 Configuration No options UART Configuration Tab. 26: SIO SCH3223 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 69: Fig. 76: Uart Port 1 Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 UART Port 1 Configuration Fig. 76: UART Port 1 Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 70: Tab. 27: Uart Port 1 Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description Configure UART port using options: <Disabled> UART Port 1 [Disabled] Disable device <Enabled>* [Enabled] Enable device and use below settings <3F8h>* <2F8h> <3E8h> <2E8h> Base I/O Address System I/O base resources <338h>... -
Page 71: Fig. 77: Uart Port 2 Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 UART Port 2 Configuration Fig. 77: UART Port 2 Configuration E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 72: Tab. 28: Uart Port 2 Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description Configure UART port using options: <Disabled> UART Port 2 [Disabled] Disable device <Enabled>* [Enabled] Enable device and use below settings <3F8h> <2F8h>* <3E8h> <2E8h> Base I/O Address System I/O base resources <338h>... -
Page 73: Security Menu
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Security Menu Fig. 78: Security Menu E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 74: Tab. 29: Security Menu 1
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Not Detected> Current TPM Device <TPM 1.2> Current TPM Device: TPM1.2, or TPM2.0. <TPM 2.0>* Install or Change the password and the length of Set Supervisor Password None password must be greater than one character. -
Page 75: Power Menu
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Power Menu Fig. 79: Power Menu E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 76: Tab. 31: Power Menu
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled>* Auto wake on S5, By Day of Month or Fixed time of Auto Wake on S5 <By Every Day> every day <By Day of Month> Tab. -
Page 77: Boot Menu
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Boot Menu Fig. 80: Boot Menu 1 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 78: Fig. 82: Boot Menu 2
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Fig. 81: Boot Menu 2 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... - Page 79 PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Dual Boot Type> Select boot type to Dual type, Legacy type or UEFI Boot Type <Legacy Boot Type> type <UEFI Boot Type>* Allows InsydeH2O to skip certain tests while <Enabled>* Quick Boot booting.
- Page 80 PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Determine EFI device first or legacy device first. If <Disabled> EFI Device First enable, it is EFI device first. If disable, it is Legacy <Enabled>* device first. <Enabled>* If enabled the system firmware does not initialize UEFI OS Fast Boot <Disabled>...
-
Page 81: Fig. 83: Efi
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Fig. 82: EFI E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 82: Tab. 33: Efi
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description [ ]* EFI USB Device (SanDisk) [ X ] [ ]* Internal EFI Shell [ X ] Tab. 32: EFI E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 83: Amd Pbs Menu
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 AMD PBS Menu Fig. 83: AMD PBS Option E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 84: Tab. 34: Amd Pbs Option
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description AMD Firmware Version No options Show all of AMD Firmware Version <Force PCIE> M.2 Key M SATA/PCIE Selection usage: SATA, M.2 Key M SATA/PCIE Selection <Force SATA>... -
Page 85: Fig. 85: Amd Firmware Version 1
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 AMD Firmware Version Fig. 84: AMD Firmware Version 1 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 86: Fig. 86: Amd Firmware Version 2
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Fig. 85: AMD Firmware Version 2 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 87: Amd Cbs Menu
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 AMD CBS Menu Fig. 86: AMD CBS E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 88: Tab. 35: Amd Cbs
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description CPU Common Options No options CPU Common Options NBIO Common Options No options NBIO Common Options FCH Common Options No options FCH Common Options Tab. -
Page 89: Fig. 88: Cpu Common Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 CPU Common Options Fig. 87: CPU Common Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 90: Tab. 36: Cpu Common Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Disabled>* Core Performance Boost Disable CPB <Auto> Adjust value [50-100] CPU Thermal Throttling Temperature CPU Thermal Throttling Temperature Limit (50-100[‘C]) Default value [100] Tab. 35: CPU Common Options E.E.P.D. -
Page 91: Fig. 89: Nbio Common Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 NBIO Common Options Fig. 88: NBIO Common Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 92: Tab. 37: Nbio Common Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description GFX Configuration No options GFX Configuration SMU Common Options No options SMU Common Options Tab. 36: NBIO Common Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 93: Fig. 90: Gfx Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 GFX Configuration Under this setting, the allocation of RAM memory to GPU memor can be changed: iGPU Configuration <UMA_SPECIFIED> UMA Frame buffer size 2G. Fig. 89: GFX Configuration E.E.P.D. -
Page 94: Tab. 38: Gfx Configuration
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Auto>* <iGPU Disabled> iGPU Configuration <UMA_SPECIFIED> UMA Mode <UMA_AUTO> <UMA_GAME_OPTIMIZED> <Legacy> UMA Legacy Version <Non-Legacy> UMA Version UMA Non Legacy Version <Hybrid Secure> Hybrid Secure <Auto>* <Disabled>... -
Page 95: Fig. 91:Smu Common Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 SMU Common Options Fig. 90:SMU Common Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 96: Tab. 39: Smu Common Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description CPU and Auxiliary Fan Control No options CPU and Auxiliary Fan Control Warning: Select System Configuration may cause <15W POR Configuration> the system to hang, as some System Configuration System Configuration <18W POR Configuration>... -
Page 97: Fig. 92: Cpu And Auxiliary Fan Control
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 CPU and Auxiliary Fan Control Fig. 91: CPU and Auxiliary Fan Control E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 98: Tab. 40: Cpu And Auxiliary Fan Control
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description User can set: <Optimized Cooling>* Optimized Cooling <Silent Mode> Silent Mode Less noise CPU Fan Control <Maximum Cooling> Maximum Cooling Always on <No Cooling>... -
Page 99: Fig. 93: Fch Common Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 FCH Common Options Fig. 92: FCH Common Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 100: Tab. 41: Fch Common Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description USB Configuration Options No options USB Configuration Options Ac Power Loss Options No options Ac Power Loss Options Tab. 40: FCH Common Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 101: Fig. 94: Usb Configuration Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 USB Configuration Options Fig. 93: USB Configuration Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 102: Tab. 42: Usb Configuration Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Enabled> XHCI0 controller enable <Disabled> Enable or disable USB3 controller. <Auto>* <Enabled> XHCI1 controller enable <Disabled> Enable or disable USB3 controller. <Auto>* Tab. 41: USB Configuration Options E.E.P.D. -
Page 103: Fig. 95: Ac Power Loss Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Ac Power Loss Options Fig. 94: Ac Power Loss Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 104: Tab. 43: Ac Power Loss Options
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description <Always Off> <Always On> Ac Loss Control <Reserved> Select Ac Loss Control Method <Previous>* <Auto> Tab. 42: Ac Power Loss Options E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. -
Page 105: Exit Menu
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Exit Menu Fig. 95: Exit Menu E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2020|2021 E.E.P.D. GmbH. All rights reserved. 10/2021 Revision 1.7... -
Page 106: Tab. 44: Exit Menu
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 BIOS Settings Options Description Exit Saving Changes Exit system setup and save your changes. Save Change Without Exit Save your changes and without exiting system. Exit system setup and without saving your Exit Discarding Changes changes. -
Page 107: Revision History
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Revision History Date Version Changes 26.02.2021 First release 08.04.2021 BIOS Update 13.04.2021 BIOS Update 16.04.2021 Some corrections and updates 01.06.2021 BIOS Update 30.06.2021 BIOS Update and some corrections 31.08.2021 BIOS Update and splitting in 25W and 54W version 20.10.2021... -
Page 108: Index Of Figures
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Fig. 30: Molex Battery Connector Schematic ..........25 Index of Figures Fig. 31: Molex Audio Connector Detail ............26 Fig. 32: Molex Audio Connector Schematic..........26 Fig. 1: System Overview ................11 Fig. - Page 109 PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Fig. 62: Main Menu 2 ..................40 Fig. 95: Ac Power Loss Options ..............102 Fig. 63: Advanced Menu ................42 Fig. 96: Exit Menu ..................104 Fig. 64: PCI Express Configurations ............44 Fig.
-
Page 110: Index Of Tables
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Tab. 31: Power Menu..................75 Index of Tables Tab. 32: Boot Menu ..................79 Tab. 33: EFI ....................81 Tab. 1: Power Connector ................23 Tab. 34: AMD PBS Option ................83 Tab. -
Page 111: Terminology
PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Terminology Bluetooth BT………………………………………………………………………………………….. CPU………………………………………………………………………………………... Central Processing Unit or processor DC………………………………………………………………………………………….. Direct Current Fourth generation „Double Data Rate“ memory technology DDR4………………………………………………………………………………………. DP………………………………………………………………………………………….. Display port EMI…………………………………………………………………………………………. ElectroMagnetic Interference Gigabit Ethernet…………………………………………………………………………. Ethernet connection with a frame transfer speed up to 1000 Mbit/s GND…………………………………………………………………………………………... - Page 112 PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 Classified Index –A– –G– Advanced Menu .................... 42 Gigabit Ethernet Dual-Port ................22 AMD CBS Menu ................... 86 –J– AMD PBS Menu .................... 82 Assembly ...................... 12 Jumpersetting for eDP Backlight ..............29 Audio Connector ...................
- Page 113 PROFIVE® NUCE_C 54 W Hardware Reference Manual – P – Revision 1 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © E.E.P.D. GmbH. All rights reserved.
