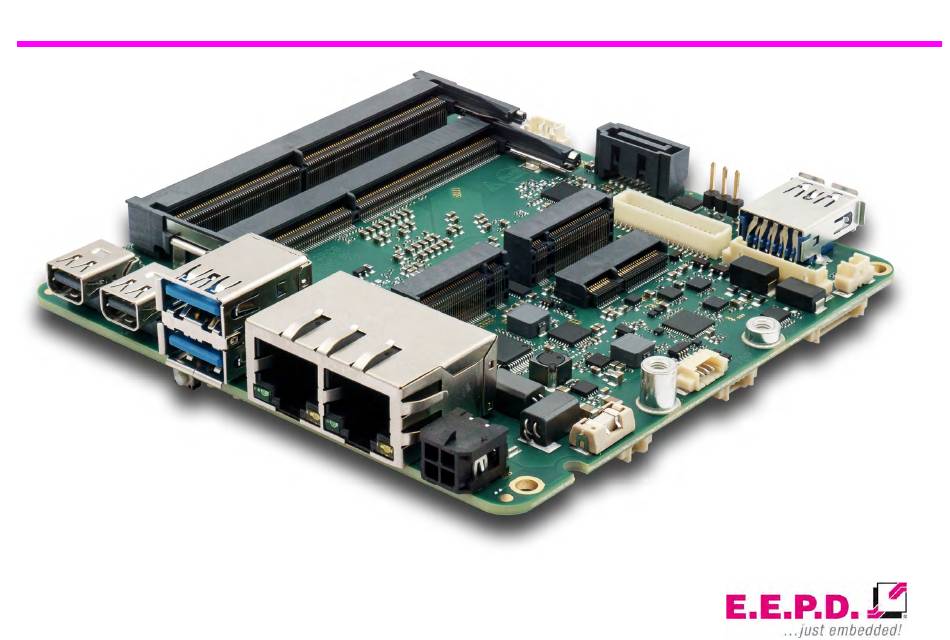

- Page 1 PROFIVE® NUCV|NUCR – Hardware Reference Manual – P – Rev. 3 Copyright ©2019|2020 E.E.P.D. GmbH. All rights reserved.
-
Page 2: General Notes
Fax.: +49 8136 2282 – 109 reliance upon it. Web: https://www.eepd.de We are thankful for all suggestions or improvements at any time. E.E.P.D. GmbH reserves the right to make changes in the products or specifications, or both, at any time without notice. - Page 3 PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Copyright Notice Disclaimer © Copyright 2019|2020 E.E.P.D. GmbH. ALL RIGHTS RESERVED! This document is provided for the general information of the customer. It E.E.P.D. GmbH copyrights this document. You may not reproduce, transmit, describes the general functionality of the board and is not considered as transcribe, store in a retrieval system, or translate into any language, in any assured characteristics.
- Page 4 PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 FCC and CE Disclaimer THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES This product cannot be used as a stand-alone product! OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, Therefore it has to be integrated together with other products like power TO ANY CUSTOMER, CONSUMER, END USER, PURCHASER, OR...
- Page 5 PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Packaging The product is in a protective package to avoid damage during transport. This protective package should be environmental friendly recycled after use. Disposal of Device At the end of the lifetime please dispose and/or recycle the components of the device accordingly.
-
Page 6: Table Of Contents
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4.10 SATA Data Connector ..............24 Table of Contents 4.11 SATA Power Connector ..............24 General Notes ....................1 4.12 LVDS Connector ................25 Used Symbols ....................6 4.13 LC-Display Backlight Connector ............27 Product Description ................. -
Page 7: Used Symbols
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Used Symbols The yellow ESD sign draws your attention that static The red danger sign warns you when a wrong or missing sensitive parts of the component could be destroyed. action dramatically endangers your life or health. -
Page 8: Product Description
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Feature Overview 1 Product Description Power Supply In the first chapter you will get a glance of all the integrated features. For further information and a brief description of all possible changes and Designed for min. - Page 9 PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 AMD V1000 processor series: Max. 32 GB dual channel DDR4 SODIMM, up to 3200 MT/s Storage Support AMD R1000 processor series(except R1102G): Max. 32 GB dual channel 1 MicroSD card socket at the rear side DDR4 SODIMM, up to 2400 MT/s.
- Page 10 PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Temperature monitoring Watchdog Power button input Reset button input Feature connector (GPIOs / Power LED / Status LED) Power LED onboard Status LED onboard LVDS panel backlight RTC battery connector E.E.P.D.
-
Page 11: Environmental Specification
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Environmental Specification Max. Operating Temperature 0 °C to +60 °C ambient, when adequate heatsink/cooling is provided. NUCVE with V1404B only: -40 °C to +85 °C ambient, when adequate heatsink/cooling/memory/SSD and all other accessories are provided to support the extended temperature range. -
Page 12: System Overview
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 2 System Overview This chapter describes the main hardware components of the NUCVX board. Fig. 1: System Overview E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2019|2020 E.E.P.D. GmbH. All rights reserved. 20/2020 Revision 3.2... -
Page 13: Assembly
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 3 Assembly The board must be mounted in a stable case. The mechanical mounting points according to chapter 3.1 must be used. The available sockets and connector for system build-up are specified in chapter 4. -
Page 14: Fig. 2: Top View
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Top View Bottom View Fig. 2: Top View Fig. 4: Bottom View Front View Rear View Fig. 3: Front View Fig. 5: Rear View E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2019|2020 E.E.P.D. -
Page 15: Mechanical Mounting
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Mechanical Mounting Please use the 4 prepared mounting points (red outline) to fasten the base board in order to prevent short circuits. Use 15.24 mm (0.6 inches) distance bolts for a stable mounting of the board. -
Page 16: Dimensions
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Dimensions 3.2.2 Dimensions of the CPU 3.2.1 Dimensions of the board Fig. 8: Dimensions – CPU 3.2.3 Dimensions of the mounting points Fig. 7: Dimensions – Board Fig. 9: Dimensions – Mounting Points E.E.P.D. -
Page 17: Feature Details
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4 Feature Details The following schedule contains all the necessary information to connect the board to your peripheral equipment. On the left side of the page you will see the position on the board (red mark) and on the right side a magnified image of the explained item. -
Page 18: Mini-Dp Connectors
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Mini-DP Connectors Important Note: There are two kinds of DisplayPort cables: Cables for direct connection to a MiniDP monitor with Pin 20 on both ends of the cable connected. Cables for use with dongles (e. -
Page 19: Dual-Usb 3.0 Port
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Dual-USB 3.0 Port Gigabit Ethernet Dual-Port The Dual-Ethernet socket uses the Intel® Gigabit Ethernet Controller Intel® i210 USB 3.0 type ports providing 900 mA. Fig. 14: Ethernet Dual-Port Detail Fig. 12: Dual-USB 3.0 Port Detail Fig. -
Page 20: Power Connector
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Power Connector For stable operation: Please ensure a system power supply of min. 60 W. E.E.P.D. recommends a system power supply of 90 W. Power source must be capable to respond to fast Fig. -
Page 21: Ddr4 Ram Sodimm Sockets
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 DDR4 RAM SODIMM Sockets Assembly: First slide RAM module into the RAM socket. Then press the module in direction to the board till you hear it snap. Fig. 18: DDR4 RAM SODIMM Socket Detail Fig. -
Page 22: Audio Connector
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Audio Connector Counterpart – plug: MOLEX Pico Blade 0510211200 Fig. 20: Molex Audio Connector Detail Signal JD_LINE_IN LINE_IN_L Fig. 21: Molex Audio Connector Schematic LINE_IN_R GND_AUDIO MIC_IN GND_AUDIO JD_LINE_OUT LINE_OUT_L LINE_OUT_R GND_AUDIO HP_OUT_L... -
Page 23: Sockets
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 M.2 Sockets 4.7.3 M.2 Socket Key B for Modem 4.7.1 M.2 Socket Key M for SSD Fig. 24: M.2 Key B Connector Detail Fig. 22: M.2 Key M Connector Detail 4.7.2 M.2 Socket Key E for WLAN / BT Fig. -
Page 24: Rear Usb Port
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Rear USB Port Battery Connector USB 3.0 type port providing 900 mA. Fig. 27: Battery Connector Detail Fig. 25: USB 3.0 Port Detail Fig. 28: Battery Connector Schematic Counterpart – plug: Fig. -
Page 25: Sata Data Connector
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4.10 SATA Data Connector 4.11 SATA Power Connector Fig. 29: SATA Data Connector Detail Fig. 31: Molex SATA Power Connector Detail Fig. 32: Molex SATA Power Connector Schematic Fig. 30: SATA Data Connector Schematic Counterpart –... -
Page 26: Lvds Connector
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4.12 LVDS Connector Counterpart – plug: JST SHDR-40V-S-B AMD V1000 processor series based boards only. Fig. 34: LVDS Data Connector Schematic AMD R1000 processor series boards: This option is not available for standard boards, only available for ODM. -
Page 27: Tab. 5: Stl3X1
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 VDD_LCD P3V3 Tab. 5: STL3X1 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2019|2020 E.E.P.D. GmbH. All rights reserved. 20/2020 Revision 3.2... -
Page 28: Lc-Display Backlight Connector
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4.13 LC-Display Backlight Connector AMD V1000 processor series based boards only. Fig. 38: Molex LC-Display Backlight Connector Detail AMD R1000 processor series boards: This option is not available for standard boards, only available for ODM. - Page 29 PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2019|2020 E.E.P.D. GmbH. All rights reserved. 20/2020 Revision 3.2...
-
Page 30: Feature Connector
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4.14 Feature Connector Status LED and GPIO Connector. Counterpart – plug: MOLEX Pico Blade 0510211000 Signal P3V3 Reserved Fig. 39: Molex Feature Connector Detail Reserved PWR_LED_ANODE PWR_LED_CATHODE STATUS_LED_ANODE Fig. 40: Molex Feature Connector Schematic STATUS_LED_CATHODE FEATURE_CONN_GPIO0 FEATURE_CONN_GPIO1... -
Page 31: Rs232/485 Connector
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4.15 RS232/485 Connector Counterpart – plug: MOLEX Pico Blade 0510211000 Signal Signal RS232 Signal RS485/FDX RS485/HDX Fig. 41: Molex RS232/485 Connector Detail Windows 10 only RS485-TX_N RS485-RX/TX_N RXD0 RS485-TX_P RS485-RX/TX_P Fig. -
Page 32: Rs232 Connector
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4.16 RS232 Connector Counterpart – plug: MOLEX Pico Blade 0510210600 Signal RXD1 RTS1_m Fig. 43: Molex RS232 Connector Detail TXD1 CTS1_m Tab. 9: Molex RS232 Connector Fig. 44: Molex RS232 Connector Schematic E.E.P.D. -
Page 33: Microsd Card Slot
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4.17 MicroSD Card Slot 4.18 MicroSIM Card Slot Fig. 45: MicroSD Card Slot Detail Fig. 46: MicroSIM Card Socket Detail E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2019|2020 E.E.P.D. GmbH. All rights reserved. 20/2020 Revision 3.2... -
Page 34: Usb Internal Connector
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4.19 USB Internal Connector AMD V1000 processor series based boards only. AMD R1000 processor series boards: This option is not available. Counterpart – plug: MOLEX Pico Blade 0510210900 Signal VCC_USBSS_4_INT USB2_4_INT_N Fig. - Page 35 PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2019|2020 E.E.P.D. GmbH. All rights reserved. 20/2020 Revision 3.2...
-
Page 36: Fan Connectors
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4.20 FAN Connectors 4.20.1 SoC FAN Connector Fig. 51: Molex FAN Connector Schematic Counterpart – plug: MOLEX Pico Blade 0510210400 Fig. 49: Molex SoC FAN Connector Detail 4.20.2 SSD FAN Connector Signal FAN_TACHO FAN_PWM... -
Page 37: Power Button, Power And Sata Leds
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4.21 Power Button, Power and SATA LEDs 4.22 Power Button Connector Press power button once to start up. Press power button once to start up. Press power button to shut down into S3/S4. Press power button to shut down into S3/S4. -
Page 38: Reset Connector
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 4.23 Reset Connector Counterpart – plug: MOLEX Pico Blade 0510210200 Signal SYS_RST_uC_IN_m Fig. 55: Molex Reset Connector Detail Tab. 13: Molex Reset Connector Fig. 56: Molex Reset Connector Schematic E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright ©2019|2020 E.E.P.D. -
Page 39: Revision History
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Revision History Date Version Changes 25.03.2019 First release 15.10.2019 New manual design 25.02.2020 Update HW Rev. 2 05.03.2020 Public release Update HW Rev. 3 with 05.03.2020 R1000 support added Powerbutton connector 16.04.2020 update Power... -
Page 40: Index Of Figures
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Fig. 31: Molex SATA Power Connector Detail ..........24 Index of Figures Fig. 32: Molex SATA Power Connector Schematic ........24 Fig. 33: LVDS Data Connector Detail ............25 Fig. 1: System Overview ................11 Fig. -
Page 41: Index Of Tables
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Index of Tables Tab. 1: Power Connector ................19 Tab. 2: Audio Connector ................21 Tab. 3: Battery Connector ................23 Tab. 4: Molex SATA Power Connector ............24 Tab. 5: STL3X1 ..................... 26 Tab. -
Page 42: Terminology
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Terminology BT………………………………………………………………………………………….. Bluetooth CPU………………………………………………………………………………………... Central Processing Unit or processor DC………………………………………………………………………………………….. Direct Current DDR4………………………………………………………………………………………. Fourth generation „Double Data Rate“ memory technology DP………………………………………………………………………………………….. Display port EMI…………………………………………………………………………………………. ElectroMagnetic Interference Gigabit Ethernet…………………………………………………………………………. Ethernet connection with a frame transfer speed up to 1000 Mbit/s GND…………………………………………………………………………………………... -
Page 43: Classified Index
PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Classified Index LVDS Connector ................... 24 –A– –M– Assembly ...................... 11 Audio Connector ................... 20 M.2 Sockets ....................21 Mechanical Mounting ..................13 –B– MicroSD Card Slot ..................29 MicroSIM Card Slot ..................29 Battery Connector .................. - Page 44 PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Your Notes E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © E.E.P.D. GmbH. All rights reserved.
- Page 45 PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 Your Notes E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © E.E.P.D. GmbH. All rights reserved.
- Page 46 PROFIVE® NUCV|NUCR Hardware Reference Manual – P – Revision 3 E.E.P.D. GmbH | Gewerbering 3 | 85258 Weichs Copyright © E.E.P.D. GmbH. All rights reserved.
