Courtyard 187019 Quick Start Manual

10' x 10' tiki aim gazebo

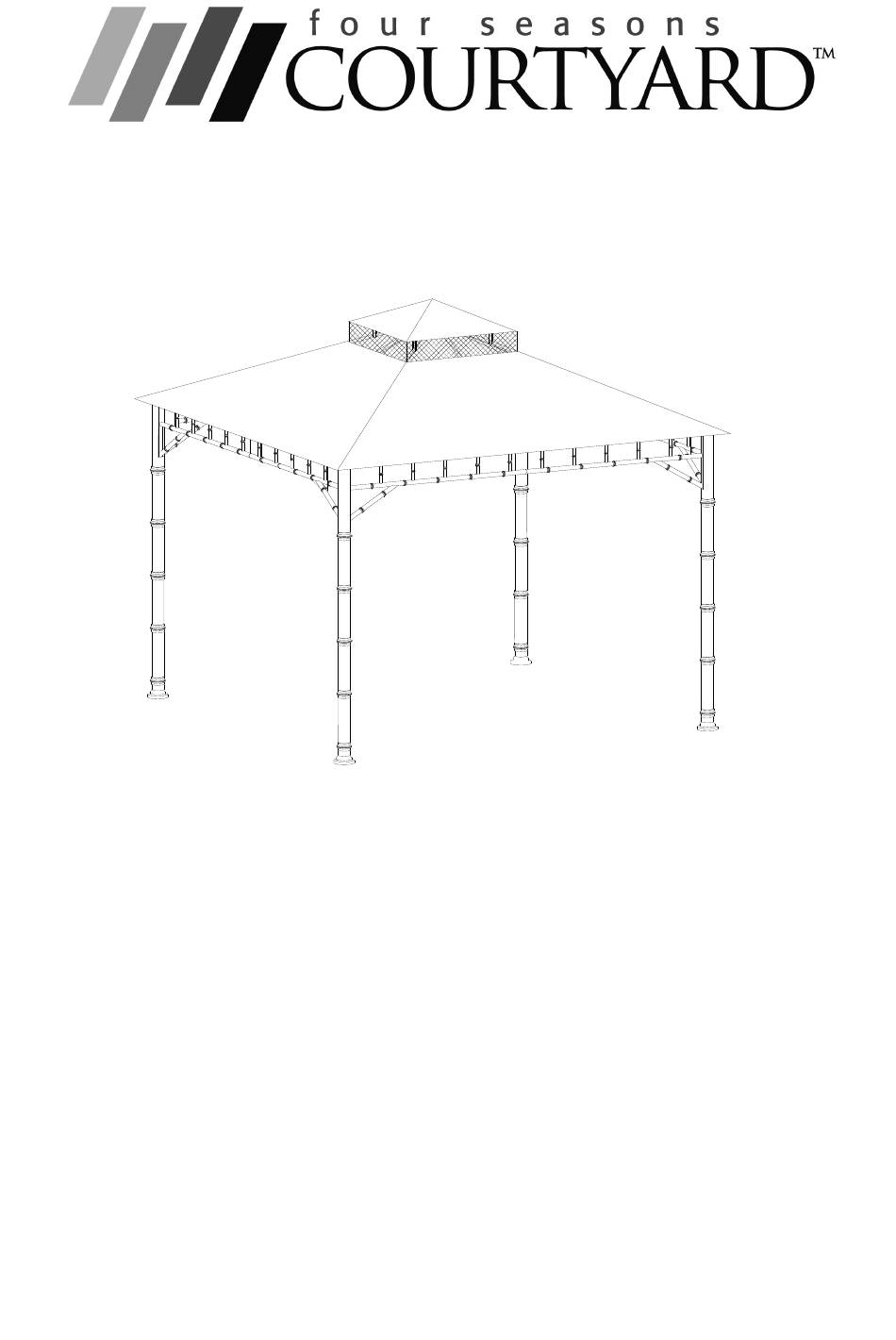

10' X 10' Tiki AIM Gazebo

WARNING:

● Keep all children and pets away from assembly area. Children and pets should be

supervised when they are in the area of the Gazebo construction.

● Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house,

overhanging branches, laundry line, or electrical wires.

● Some parts may container sharp edges. When assembling and using this product, basic

safety precautions should always be followed to reduce the risk of personal injury and

damage to the product. Please read all instructions before assembly and use

● Check all bolts for tightness before use, and periodically check and tighten bolts as

necessary.

● Gazebo is designed for wind speeds of up to 30 miles per hour. Customer should

disassemble the gazebos when there is a chance of wind speeds higher than 30 miles per

hour.

● Please take down the gazebo during strong wind. The manufacturer or retailer is not liable

for any loss of the product or other items due to the failure to take down the gazebo during

strong wind.

TV NO.:187019

Table of Contents

Do you have a question about the 187019 and is the answer not in the manual?

Page 1 10’ X 10’ Tiki AIM Gazebo TV NO.:187019 WARNING: ● Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the Gazebo construction. ● Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house, overhanging branches, laundry line, or electrical wires.
Page 2 Parts List Left screen Right screen Post Upper tube Lower tube Beam Big connector Small connector Small beam Hook Small canopy Big canopy Knob...
Page 3 Fig.1: Insert the right screen (B) into the left screen (A). Fig.2: Insert the connecting flap of left screen (A) and right screen (B) into the “U” shape of post (C). Then using knob (N) to secure the assembled screens to the post (C).
Page 4 Fig.3: Insert the lower tube (E) into the upper tube (D). Fig.4: Insert the assembled tubes and beam (F) into the big connector (G). And assemble the hook (J) to the big connector (G). Fig.5: Insert the lower tube into the post (C). Fig.6: Insert the beam (F) into the left screen (B) and attach the big canopy (L) to the assembled top.
