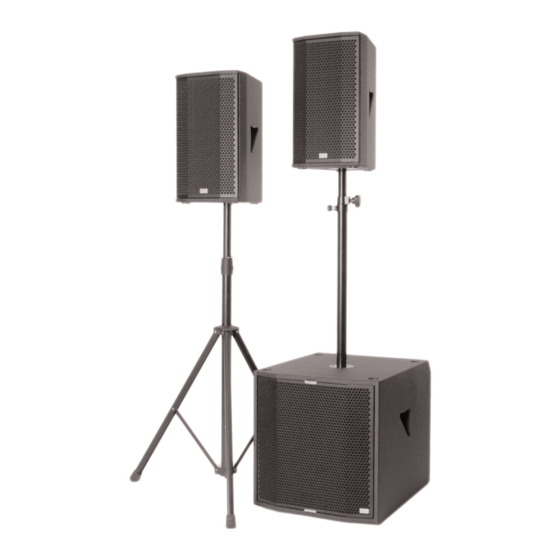

Manual SAT 3
1 Welcome
We are pleased to welcome you as a new KS Audio product owner. We wish you much fun and success with the
revolutionary and innovative, SAT 3 system. The KS Audio aim has always been to supply the most advanced product
possible for the end user.
KS Audio has evolved because of the end user: the professional sound engineer, musician, producer and rental owner.
Our products are designed to give you a mature tool that will enable everyone to reach their goals faster and with the
highest possible quality. KS Audio end users, through their actual experience, have contributed to each new stage of
development and optimization and thus, we welcome your comments and suggestions as well. Thank you in advance.
Now, to the manual..........
Many words are not our thing. At KS Audio we believe that the SAT 3 will be always easy to use to achieve a great
sound, even without reading the manual. However, at KS Audio we do want you to be fully informed about your new
purchase, and perhaps about new things that will further enlighten your understanding of the meaning of:
"KS, The Art of Sound".
We trust you will find all the information you need and we will be happy to answer any further questions you may
have in the future. The detail in this manual will help you understand the product fully and thus, add to your full
enjoyment of our "Art of Sound".
KS Beschallungstechnik GmbH - Westendstr. 1 - 67310 Hettenleidelheim - Germany - www.ks-audio.de
05/09
KS Audio USA - 1062 Cephas Drive - Clearwater, FL 33765 - USA - www.ksaudiousa.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SAT 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KS DIGITAL SAT 3

  • Page 1 Now, to the manual..Many words are not our thing. At KS Audio we believe that the SAT 3 will be always easy to use to achieve a great sound, even without reading the manual. However, at KS Audio we do want you to be fully informed about your new purchase, and perhaps about new things that will further enlighten your understanding of the meaning of: “KS, The Art of Sound”.
  • Page 2 This rack unit is fitted into the upper rear of the sub cabinet. KS Audio invented an expression : “ Plug ‘n Play”, This expression refers very much to the simplicity of the new SAT 3 system.
  • Page 3 As a result, one C 10 speaker per side covers the equivalent area of 2 or more other speakers per side, however, the SAT 3 can drive 2 C 10 speakers per side...
  • Page 4 The Art of Sound Handcrafted and engineered in Germany 2.1.5 High Frequency C 10 Compression Driver The HF driver in the C 10 currently represents the ideal balance between high strength and high efficiency with a minimal distortion factor. A single 2” coil with a Mylar ring membrane and a specially designed Phase Plug projects sound through a 1”...
  • Page 5 The Art of Sound Handcrafted and Engineered in Germany vertical polar patterns conventional C 10 horizontal polar patterns conventional C 10 2.1.9 Dispersion HF / MF Dispersion….. Loudspeakers have a typical dispersion which is more or less focused over a broad frequency spectrum.
  • Page 6 2.2 Amplification 2.2.1 Power Amplifiers The SAT 3 is a fully self-powered system comprising of 6 individual PWM ( see page 15 for details) MOSFET amplifiers. 2 amplifiers are bridged (tied) together to drive the 18” sub bass driver. 2 amplifiers are bridged (tied) together and held in reserve for when an additional sub bass driver is connected.
  • Page 7 2.4 Balanced Audio Input Stage The Sat 3 system XLR audio inputs are electronically balanced to 10 K ohms. with phase referred to a movement out to the front of the sub bass driver membrane, at 100Hz, is pin 2 + (hot) pin 3 - (cold).
  • Page 8 The Art of Sound Handcrafted and engineered in Germany 2.8 Cross Over Filters The main cross over filter of 120 Hz between sub bass driver and the two C 10 top boxes is carried out by digital FIR filtering within the DSP controller, whereas, the cross over filters of 1,200 Hz in the passive top boxes between the low-mid and high drivers are analog and provide a linearity or "soft"...
  • Page 9 Handcrafted and Engineered in Germany 3.0 Remote The SAT 3 system can be operated without the need of training, and all the basic parameters on the controller panel are available for immediate real time adjustment. However, to take advantage of the many operating features found in the digital controller system, KS Audio supplies the Remote 3 software program to access and adjust all the parameters involved with the controller operations.
  • Page 10 Adding additional top boxes to increase power and audience coverage. When you know your SAT 3 system is not powerful enough in it's basic size for the space to be covered then an option is, to use several top boxes. Combined together in a cluster they can cover a gymnasium by 360 degrees.
  • Page 11 Function: Press and hold black push buttons "mono" for 3 seconds until the yellow LED indicates the stereo operation. Each SAT 3 system has been tuned to it's best performance at the KS Audio factory in Germany. Therefore, the SAT 3 system is a real "plug n' play"...
  • Page 12 (1/4) of any low frequency wavelength. Please note: The Sat 3 Sub/Woofer Level LED's display shows a "0dB" level, and at this setting the sound pressure is dispersed into a "half room" dimension; this meaning, there is only "1" reflective and thus, interfering major surface,...
  • Page 13: Control System

    The Art of Sound Handcrafted and Engineered in Germany 5 Specifications 5.1 SAT 3 System Frequency Range 38 - 18,000Hz +/-3dB Sound pressure level 134dB cont Power 3000 Wrms, distributed Connectors signal in XLR F to top speakers Speakon to aux sub...
  • Page 14 C 10 Top box 10” + 1” Top unpowered 5.7 Software Host PC Windows Connection USB 2.0, for multiple SAT 3 systems Controls Volume, Level Woofer, Delay parametric filters, shelving filters Displays grapfic display of all parameters curves, levels, operating temperature...
  • Page 15 The Art of Sound Handcrafted and Engineered in Germany 6 Transportation KS Audio products are tools for daily use and are correspondingly robustly manufactured. You should, however, be aware of these aspects of note: As with all types of electronic devices, condensation and moisture must be avoided i.e. when the speaker comes from a hot and humid truck and is brought into a cold venue, give the system as much time as possible to cool down.
