Wiring Instructions - M-system Mini-M M2XRP2 Instruction Manual

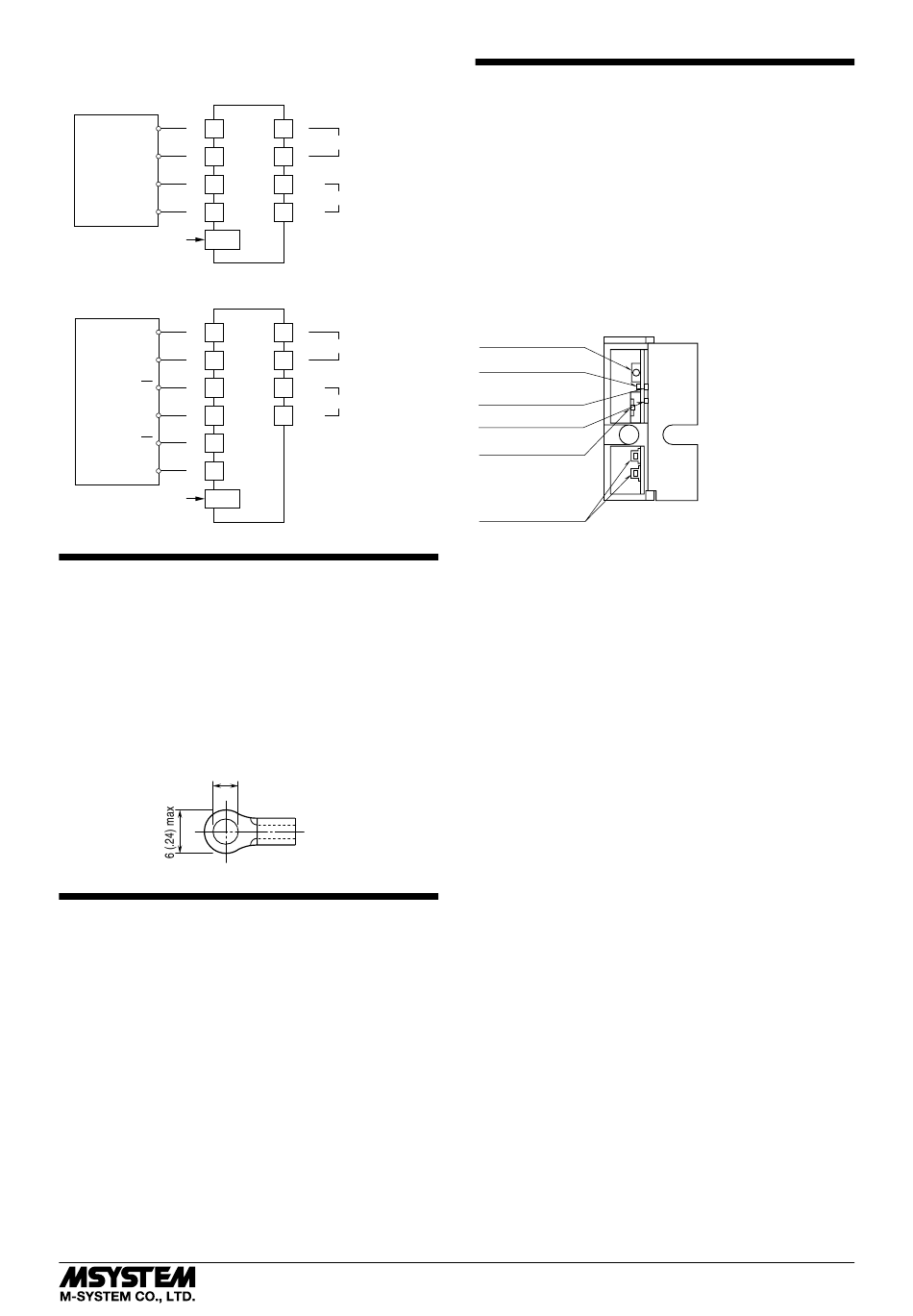

■ CONNECTION DIAGRAM
■ OPEN COLLECTOR, VOLTAGE PULSE INPUT
ROTARY
+ 1
A
ENCODER
– 2
COM
+ 5
B
+ 4
PWR
JACK
CONFIGURATOR
■ RS-422 LINE DRIVER PULSE INPUT
ROTARY
– 6
COM
ENCODER
+ 1
A
– 2
A
+ 4
B
–
5
B
+ 3
PWR
JACK
CONFIGURATOR

WIRING INSTRUCTIONS

■ SCREW TERMINAL
Torque: 0.8 N·m
■ SOLDERLESS TERMINAL
Refer to the drawing below for recommended ring tongue
terminal size. Spade tongue type is also applicable.
Applicable wire size: 0.25 to 1.65 mm
Recommended manufacturer: Japan Solderless Terminal
MFG.Co.Ltd, Nichifu Co.,ltd
3.3 (.13) max
CHECKING
1) Terminal wiring: Check that all cables are correctly con-
nected according to the connection diagram.
2) Check DIP switch setting.
3) Power input voltage: Check voltage across the terminal
10 – 11 with a multimeter.
4) Input: Check that the input voltage is within 0 – 100% of
full-scale.
5) Output: Check that the load resistance meets the de-
scribed specifications.
6) Status indicator LED: Check that it blinks in the normal
patterns.
7 +
OUTPUT
8 –
10
U(+)
POWER
11
V(–)
7 +
OUTPUT
8 –
10
U(+)
POWER
11
V(–)
(AWG 22 to 16)
2
mm (inch)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
ZERO/SPAN ADJUSTMENTS
This unit is calibrated at the factory to meet the ordered
specifications, therefore you usually do not need any cali-
bration.
For matching the signal to a receiving instrument or in case
of regular calibration, fine zero and span adjustments can
be done to ±5% by pressing UP/DOWN switches enabled
with the zero/span selector switch. Calibrated values are
stored in the non-volatile memory, which will not be lost
even when you turn off power supply to the unit.
Zero and span are respectively set to 0% and 100% at the
factory.
■ FRONT VIEW (with cover open)
Configurator Jack
Input Monitor LED, PL1
Input Monitor LED, PL2
Status Indicator LED
Zero/Span Selector
Top: SPAN
Middle: OFF
Bottom: ZERO
UP/DOWN Switches
The front cover cannot be opened to 180 deg.
when flush with neighboring units.
Zero/Span Selector
ZERO: UP/DOWN switches usable for zero adjustment.
OFF: UP/DOWN switches unavailable.
SPAN: UP/DOWN switches usable for span adjustment.
UP/DOWN Switches
UP: Pressing UP increases adjusted values.
DOWN: Pressing DOWN decreases adjusted values.
■ HOW TO CALIBRATE THE ZERO
Slide the Zero/Span Selector to the bottom position and
press UP or DOWN switch. Incrementing speed will be
doubled when you keep pressing a switch.
■ HOW TO CALIBRATE THE SPAN
Slide the Zero/Span Selector to the top position and press
UP or DOWN switch. Incrementing speed will be doubled
when you keep pressing a switch.
■ HOW TO RESET
After you calibrated manually with these switches, you
can reset them to its ex-factory state by pressing both UP/
DOWN switches at once.
■ ADJUSTMENT PROCEDURE
Use a signal source and measuring instruments of sufficient
accuracy level. Turn the power supply on and warm up for
more than 20 minutes.
1) ZERO: Apply 0% input. Slide the Zero/Span Selector to
the bottom position. Press UP or DOWN switch and ad-
just output to 0%.
2) SPAN: Apply 100% input. Slide the Zero/Span Selector
to the top position. Press UP or DOWN switch and adjust
output to 100%.
3) Check ZERO adjustment again with 0% input.
4) The ZERO and SPAN adjustments are processed in a dig-
ital processor, and therefore they do not interact. Howev-
er, if ZERO value is changed, repeat the above procedure
1) – 3).
M2XRP2
■ LEFT SIDE VIEW (with cover rem
EM-5059 Rev.8 P. 3 / 5
