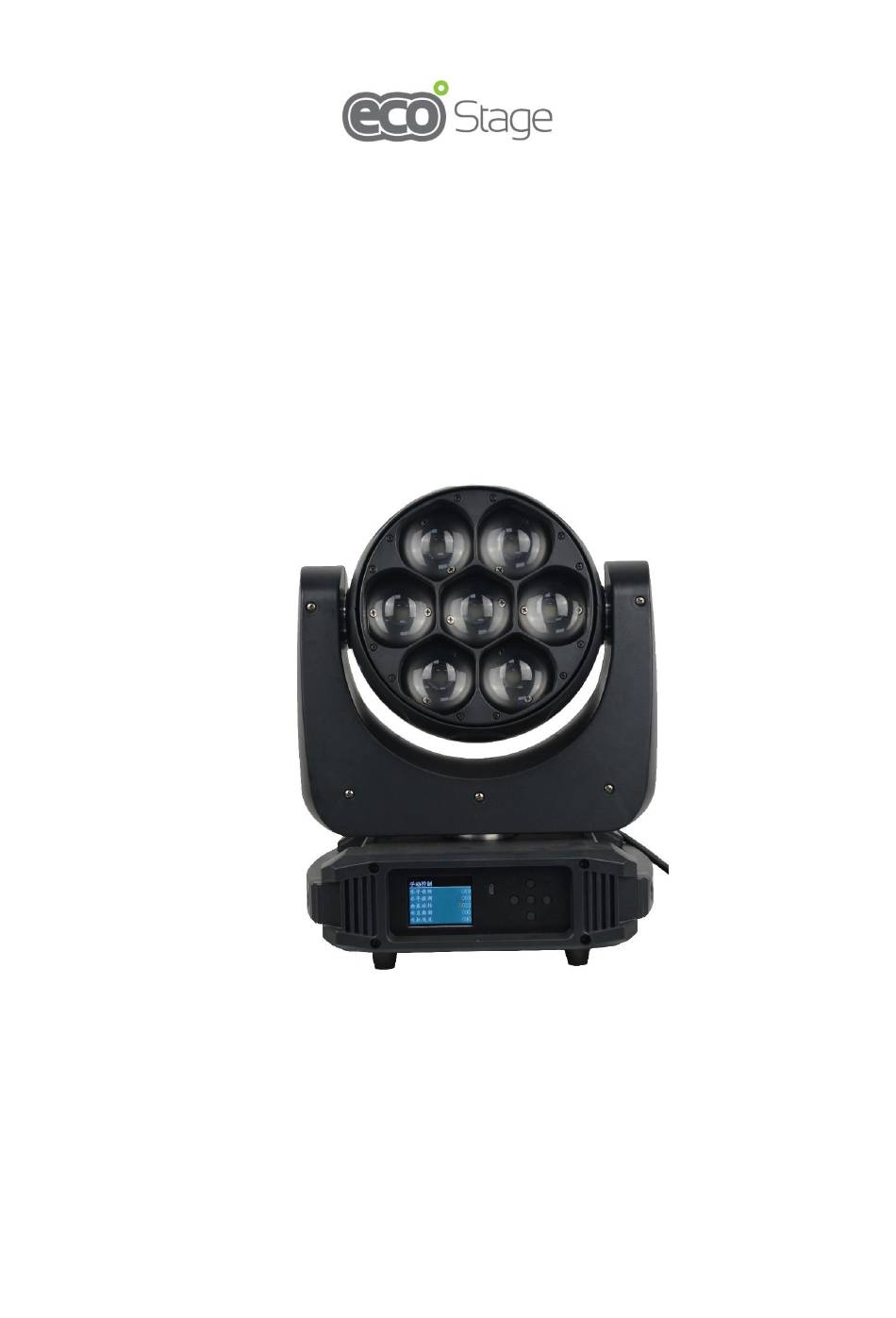

- Page 1 V-740 Zoom MOVING HEAD LED USER MANUAL 09-7444222 " מ בע ם י נ פ ל ו א ו ן ו ר ט א ת ת ו רכ ע מ ר ו א דנ sales@danor.com www.danor.com...
-
Page 2: Important Safety
IMPORTANT SAFETY 1, Read the instruction of this manual carefully. 2, Keep this instruction in safety place. 3, Heed all of the warnings. 4, Follow all of the instructions. 5,When the installation of this device, please respect your country safety regulations. 6, Don’t use this device close to the water or high humidity places, clean only with dry cloth. -
Page 3: Technical Data
OVERVIEW LED7*40W is a led moving head light that is the latest development of the smart, efficient products with led lamp source, professional shape combined with the advanced technology of today’s stage lighting products with international advanced electronic control technology and excellent user-friendly industrial design. -
Page 4: Installation
INSTALLATION This product is only suitable for professional use, and does not apply to security for other purposes, this product is designed for indoor use, it is IP20 protection class, led lamps should be kept dry to avoid moisture, overheating or dusty environment, Prevent lamps get in contact with water or any other liquid, the use of this product should pay attention to : fire, heat, electric shock, ultraviolet radiation, the lamp to explode or shedding caused serious of fatal injury, be sure that when you install the unit in a truss system, all the truss clamps are well close and... - Page 5 Prevent burning or fire 1. The fixture can be mounted directly on the surface of ordinary combustible material. 2. Do not short-circuit temperature protection switch or fuse, use the specified type of fuse. 3. The equipment must be installed away from inflammable and explosive materials. 4.
- Page 6 ATTENTION: One product just can accept one input and one output. LED7*40W DMX cables includes 3 contact pins: Pin 1: Ground Pin 2: Connect it to the negative pin Pin 3: Connect it to the positive pin The DMX cable must use the professional shielded twisted pair cable, standard loudspeaker cable is not reliable to control the long-range data,24AWG is suitable for more than 300 meters long-distance signal transmission and must add DMX512 signal amplifier, don’t use two output to separate the connection, if you separate a continuous connection you will need to use a DMX...
- Page 7 CONTROL MENU TABLE Level menu primary menu secondary menu parameter Parameter Dmx Addr 001 - 512 Ch Mode STD/HIS Run Mode DMX/Host Fix Set Pan Inv Close/Open Tilt Inv Close/Open 0 - 255 Pan Fine 0 - 255 Tilt 0 - 255 Manual Tilt Fine 0 - 255...
-
Page 8: Dmx Channel List
Zoom 0 - 255 0 - 255 Green 0 - 255 Blue 0 - 255 White 0 - 255 Reset Cance/Run FixReset Factory Cance/Run Language EN/CH Display DispFlip Open/Close DispMode Show/60s DMX CHANNEL LIST 12 Channel Mode 0-255 Pan Fine 0-255 Tilt 0-255... - Page 9 17 Channel Mode Pan Rotation 0-255 Pan Fine Pan Fine 0-255 Tilt Tilt Rotation 0-255 Tilt Fine Tilt Fine 0-255 P/T Speed P/T Speed 0-255 LED OFF - LED ON 0-255 Green LED OFF - LED ON 0-255 Blue LED OFF - LED ON 0-255 White LED OFF - LED ON...
- Page 10 Flame Red Bastard Amber 172-173 Deep Orange 168-171 Pale Gold 162-167 Apricot 157-161 Bright Blue 151-156 Primary Green 149-150 Special lavender 147-148 Pale Lavender Deep Golden Amber Medium Blue 142-144 Bright Pink 138-141 Mauve 136-137 Dark Green 134-135 Leaf Green 131-133 Dark Blue 129-130...
- Page 11 Sunrise Red 35-44 Dark Amber 32-34 Gold Amber Medium Amber Fire Surprise Peach 27-28 Straw Tint 23-26 Medium Yellow 20-22 Black White 5000 K White 3700 K White 7000 K Magenta Yellow Cyan Blue Green Macro color OFF Zoom NARROW BEAM - WIDE BEAM 0-255 Pan Rotation 0-127...
-
Page 12: Troubleshooting
TROUBLESHOOTING This short guide is meant to help and try to solve simple problems, if they continue and the device can’t operate, don’t try to repair it by yourself, return the device to your dealer. If a problem occurs, carry out the follow steps in sequence until find solve the problem, the unit operates properly, don’t continue with next steps, if the effect does not operate properly, refer servicing to a technician.
