- Page 1 TDN 07103-00253 February 16, 2015 Corporate Headquarters: 21405 B Street Long Beach, MS 39560 Phone: (228) 575-3100 Fax: (228) 575-3101 COPYRIGHT NOTICE © 2015 Triton. All Rights Reserved. TRITON logo is a registered trademark of Triton Systems of Delaware, LLC...

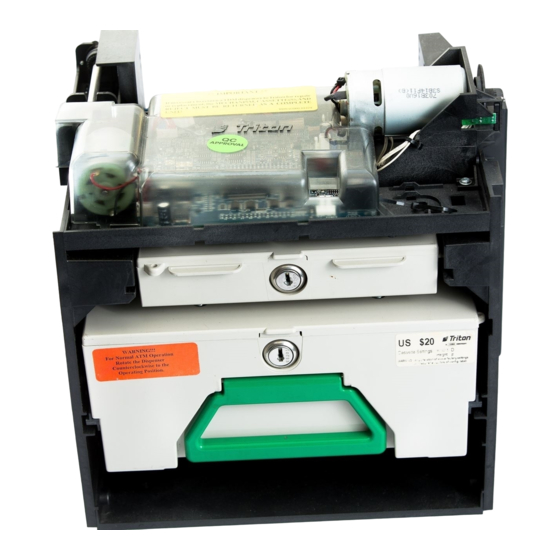

- Page 2 TDM 100 PACKAGING INSTRUCTIONS Introduction This document describes how to package a TDM 100 Dispenser. Cassette Carton (16in X 12in X 8in) Foam Block Bottom Foam Dispenser Carton (18inX18inX15in) Top Pad w/Foam Packaging tape Tools Required Bubble wrap KIT P/N:...
- Page 3 TDM 100 PACKAGING INSTRUCTIONS 1. Assemble both the dispenser carton and the cassette carton by folding the small flaps in and the long flaps over them with the part numbers facing out. Seal with tape. (Figure 1) Figure 1 Reject...
- Page 4 TDM 100 PACKAGING INSTRUCTIONS 4. Line the cassette carton with bubble wrap. Place the cassette and reject bin inside. (Figure 4) Fill in extra space with bubble wrap. Figure 4 5. Close the carton and seal with tape. (Figure Figure 5...
- Page 5 TDM 100 PACKAGING INSTRUCTIONS Belt cover Place the dispenser into the foam bottom with the belt cover fitting into the small notch. (Figure 7) Figure 7 8. Insert the foam block in front of the dispenser. (Figure 8) Foam block Figure 8 9.
- Page 6 TDM 100 PACKAGING INSTRUCTIONS 10. Lower the top foam down so it fits snug around the top of the dispenser. (Figure 10) Figure 10 11. Close the dispenser carton and seal with tape. (Figure 11) Figure 11 11. Close the dispenser carton and seal with tape.
