Roughneck 42610 Owner's Manual

8-gallon air-operated oil changer
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

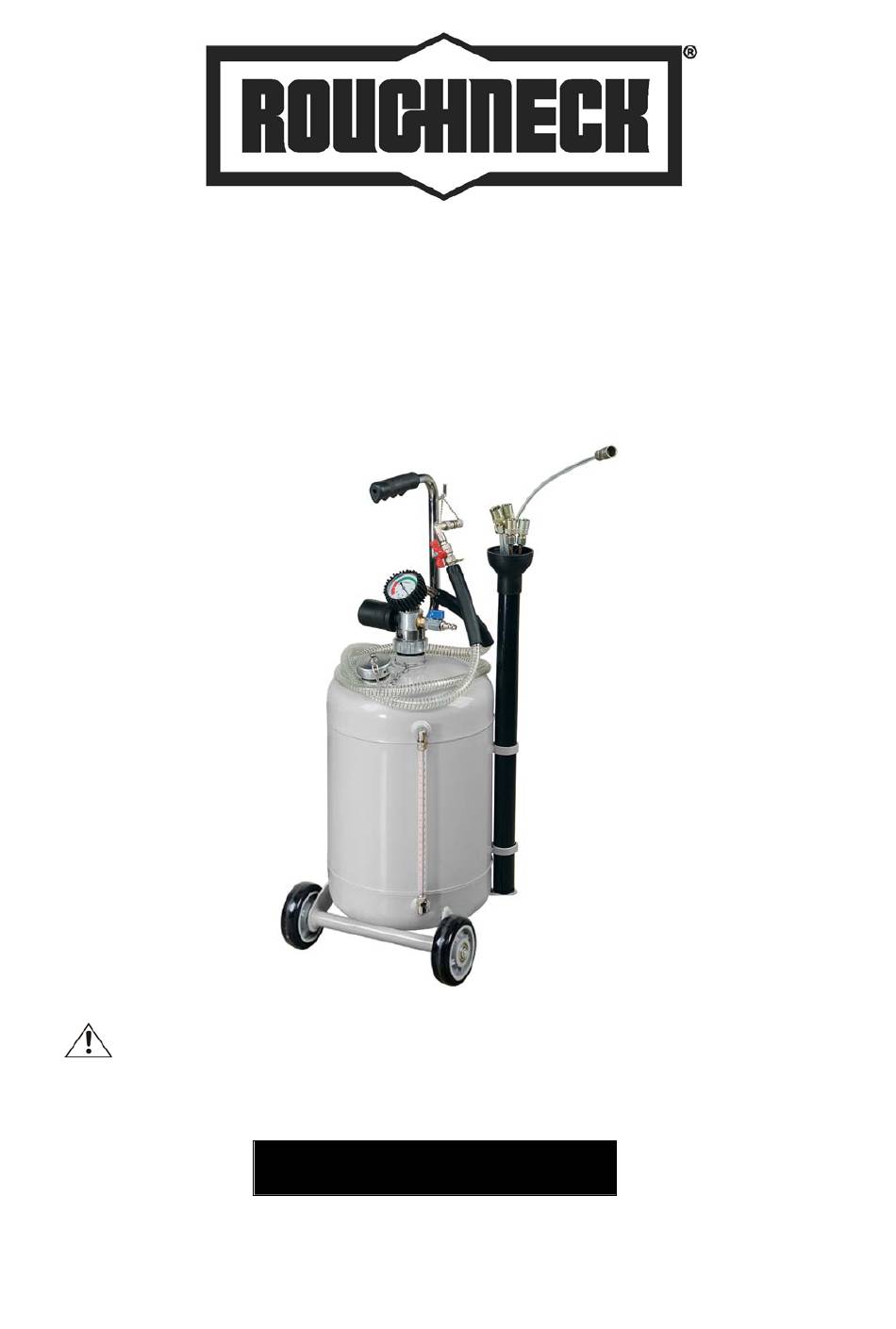

8-GALLON AIR-OPERATED OIL CHANGER
WARNING: Read carefully and understand all INSTRUCTIONS before
operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Thank you very much for choosing a Roughneck® Product! For future reference, please complete the
owner's record below:
OWNER'S MANUAL
Item# 42610

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42610 and is the answer not in the manual?

Questions and answers

Related Manuals for Roughneck 42610

Summary of Contents for Roughneck 42610

  • Page 1 WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 42610 Thank you very much for choosing a Roughneck® Product! For future reference, please complete the owner’s record below:...
  • Page 2 Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. This machine is designed for certain applications only. The distributor cannot be responsible for issues arising from modification.
  • Page 3 While extracting high temperature oils, keep hands and face protected. • Only use the device for the purpose for which it has been designed. • Do not modify any component of the equipment. Only use original spare parts. • ATTENTION! Some cars have a built-in oil suction probe.
  • Page 4 Fig.②: Connect compressed air 100psi (7bar) to quick coupler D, Open the ball Valve C. Air will flow out from the muffler E. When the arrow of the vacuum gauge approaches the red field, after 70-80 seconds, close the ball valve C, then shut off the compressed air. The aspiration oil is now ready for use. OIL EXTRACTION Oils should always be removed when they are hot (158–176°F).
  • Page 5 EMPTYING THE ASPIRATION OIL Remove the cap B and manually drain the oil. First open suction valve A. CAUTION! Do not completely overturn the reservoir. The drained fluids should not come into contact with the oil changer’s Venturi valve. If this happens, unscrew the muffler and blow it out with compressed air.
  • Page 6 TUBE WITH LABEL PROTECT SET COMPLETE SUCTION HOSE ELBOW PROTECT SET PROBES CONTAINER CHAIN GASKET BALL VALVE PRESSURE PLUG ELBOW ADAPTER ROUND HEAD SCREWS LINKER COMPLETE MUFFLER O-RING 13.2X1.8 ASPIRATOR STUFF VALVE BADY O-RING 6.9X1.8 O-RING 9.5X2.65 CHAIN PROBE Ф 5X700 FLEXIBLE STEEL BALL PROBE Ф...
