Summary of Contents for d&b audiotechnik R90

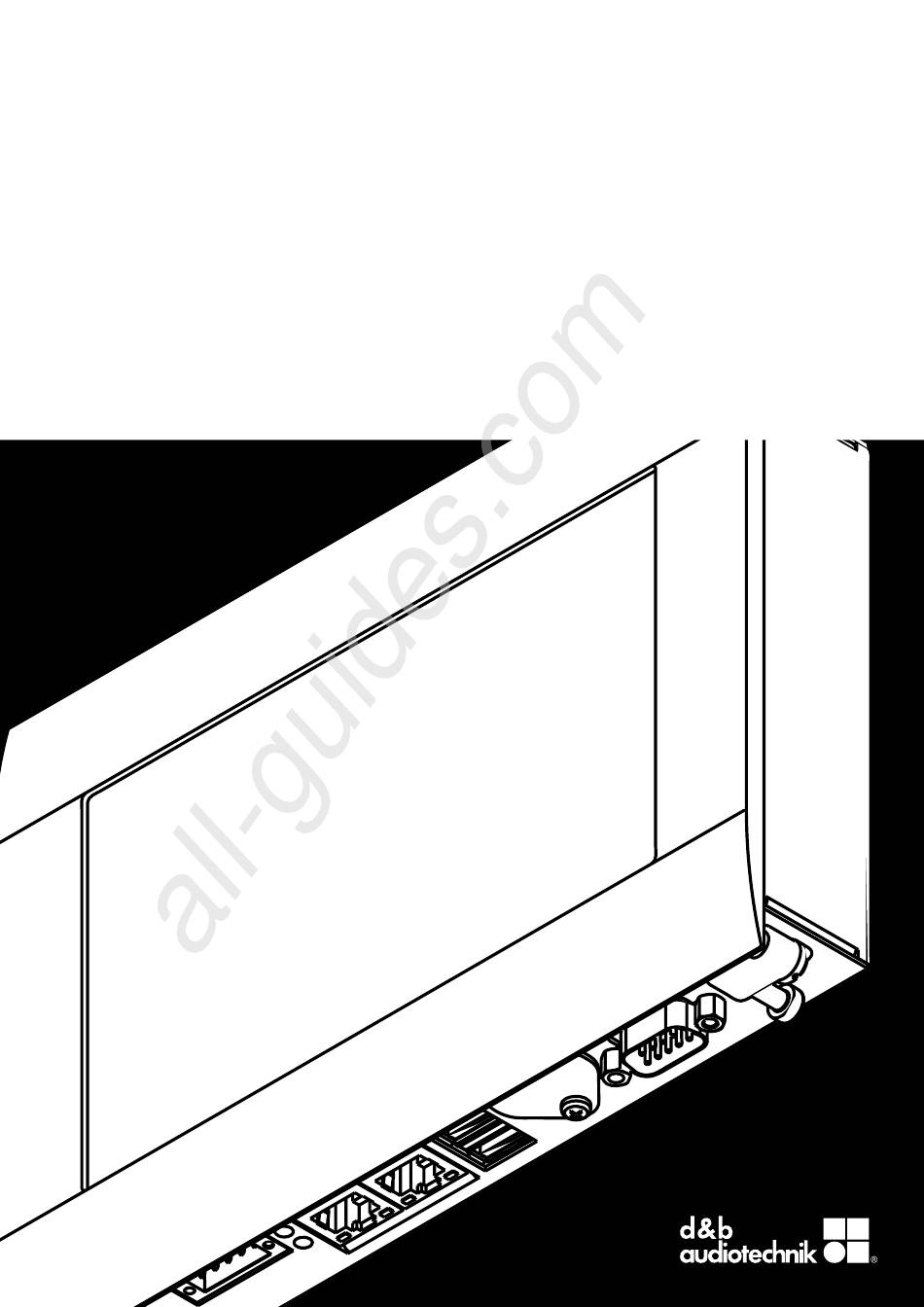

- Page 1 All manuals and user guides at all-guides.com Manual 1.2 en...
- Page 2 All manuals and user guides at all-guides.com General information R90 Manual Version: 1.2 en, 11/2019, D2403.EN .01 Copyright © 2019 by d&b audiotechnik GmbH & Co. KG; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Contents Contents R90 Touchscreen remote control........4 1.1 Scope of supply................4 1.2 Intended use................4 1.3 Technical specifications.............. 4 R90 Hardware..............5 2.1 Power supply................5 2.2 Fitting the power supply cable........... 5 2.3 LAN .................... -
Page 4: R90 Touchscreen Remote Control
D2403.EN .01 R90 Manual 1.2 Intended use The R90 Touchscreen remote control is a dedicated solution to control any d&b audio installation. It is intended as an additional remote control device to recall AmpPresets and provide quick access to basic functions such as global power, mute, level and grouping, without using the d&b R1 Remote control software. -
Page 5: R90 Hardware
2.1 Power supply To operate the R90, an exernal 24 VDC power supply capable of delivering a minimum of 12 W (500 mA) is required. To supply power to the device use the power socket [X101]. -
Page 6: Lan
2.4 USB Two USB 2.0 ports are provided ([X104]/[X105]) to allow either firmware updates via a USB stick (see also Þ R90 Software - Settings - System config Þ Firmware update on page 8) or to connect an external USB keyboard for data entry (see also Þ... -
Page 7: R90 Software
R90 Software R90 Software 3.1 Software Terms of Use The software installed on the R90 shall only be used to the extent intended/documented. d&b shall not be liable for any damage resulting from any other or non-conforming use. You may not decompile, copy, alter or enhance the software installed on the R90 or its source code in any form. -
Page 8: Settings
All manuals and user guides at all-guides.com R90 Software 3.3 Settings 3.3.1 Login Once the device has booted, selecting «Settings» at the bottom right of the touchscreen opens the R90 log in screen. By factory default, the login data is: User name: Admin Password: Admin Selecting the «View»... -
Page 9: Project Setup
R90, entered within System config Þ «Network settings», are displayed. AmpPresets Before presets can be set on the R90, they must first be created in R1 or on the amplifier. For more information about creating AmpPresets, see the amplifier manual which can be downloaded from the related product page at www.dbaudio.com. - Page 10 2. Enter a «Group name». Assign amplifier channels to a group 3. In the «Amplifier selection», select an amplifier. 4. In the «Channels amplifier» box, select all required channels. 5. Select «Apply» to save your settings. d&b R90 Manual 1.2 en...
-
Page 11: System Time & Date
To load a project, proceed as follows: 1. Place the project folder in the root folder of your USB drive. 2. Plug in your USB drive to the R90. 3. Select «Scan» ↳ The «Load Project» dialog update and list all available projects.. -
Page 12: Factory Reset
3. Select «Reset» to reset user settings and project configurations to default. Note: When you have selected one of the reset option, the Factory reset system will restart automatically. After a full reset («Reset»), you can log in using the default login data. d&b R90 Manual 1.2 en... -
Page 13: R90 Web Remote Interface
In addition, the R90 provides an integrated Web Remote interface which allows full access using a standard web browser. Provided the IP settings of the R90 are set within System config Þ «Network settings», to access the R90 via web remote, please proceed as follows: 1. -
Page 14: R90 Error Messages
As soon as an error occurs, a corresponding error message will be issued on the «Home» screen. In the «Menu bar», an «Error list» button will become accessible. By selecting this button a detailed «Error list» will be generated. d&b R90 Manual 1.2 en... - Page 15 All manuals and user guides at all-guides.com...
- Page 16 All manuals and user guides at all-guides.com www.dbaudio.com...
