Light color
Green Power state
Red Error Condition
Orange Logon state
Yellow USB data activity
Light color
When On: Internet speed is at 100M
Green
When flashing: Data transmitting/receiving
On: Internet correspond speed is 10M
Yellow
Flash: Data transmitting/receiving
WebCAM - user manual

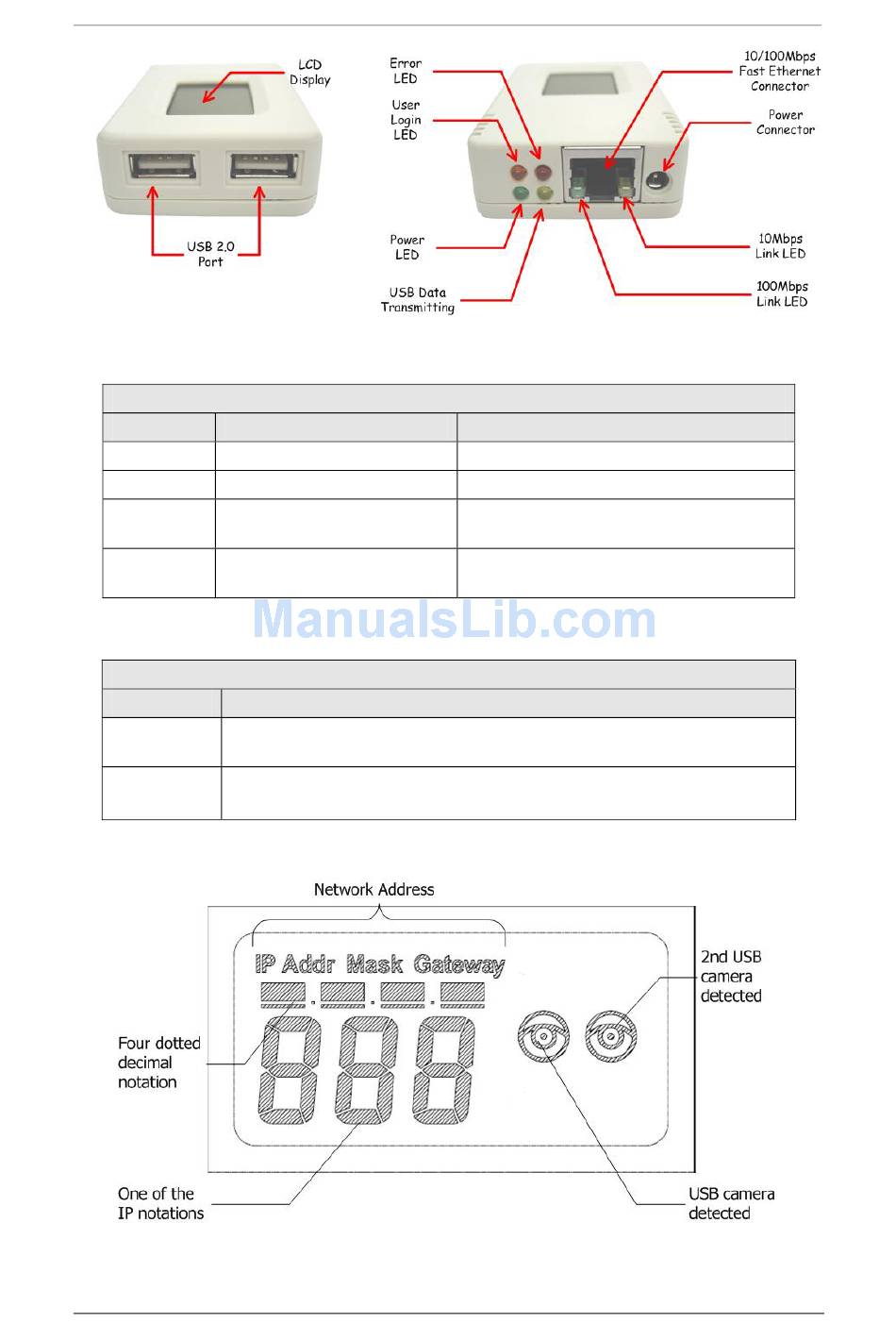

Fig.2 WebCAM Front and Back view
LED Status Indicators on WebCAM
Signal definition
Fig.3 WebCAM Status LED Indicator
Light indicators on WebCAM LAN Port LED
Condition description
Fig.4 WebCAM LAN LED Indicators
Fig.5 WebCAM LCD displayed info
Chapter 1: Introduction
Condition description
On: Normal power
Flashing: Error condition occurred
On: When there is user logon and
receive the image.
Flashing: When
transmitted / received.
data is being
