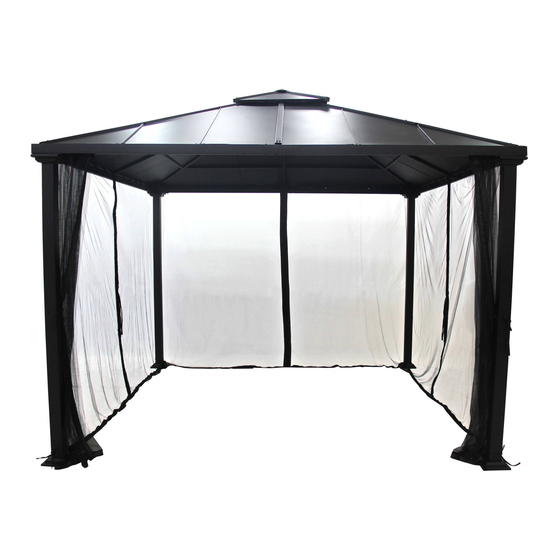

BHG Sullivan Ridge 8' x 8' hard top gazebo
ASSEMBLY INSTRUCTIONS
ITEM# BH14-093-099-11
-
-
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
INTENDED FOR RESIDENTIAL USE ONLY.
Questions, problems, missing parts with this product? Do not return to your
retailer,please call our customer service department 9:00 a.m. to 5:00 p.m.
Eastern Standard Time Monday through Friday Phone # 1-800-457-4652
or
contact us at www.numarkcustomerservice.com
DON'T RETURN TO STORE
1
Advertisement
Related Manuals for BHG BH14-093-099-11
Summary of Contents for BHG BH14-093-099-11
- Page 1 BHG Sullivan Ridge 8' x 8' hard top gazebo ASSEMBLY INSTRUCTIONS ITEM# BH14-093-099-11 ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE INTENDED FOR RESIDENTIAL USE ONLY. Questions, problems, missing parts with this product? Do not return to your retailer,please call our customer service department 9:00 a.m. to 5:00 p.m.
-
Page 2: Warnings And Cautions
WARNINGS AND CAUTIONS ＊It is essential to place the gazebo on level ground and not less than 6 feet from any obstruction such as fences, garages, the house, overhanging branches, laundry lines, or electrical wires. Assembly by at least eight adults is recommended. ＊... - Page 3 Remove all components from the polybag and unwrap all package materials. Please count the components, there are: Part Description Quantity Top Beam Top Beam Short Canopy Frame Bar Long Canopy Frame Bar Connection Ring Connection Bar Connection Bar Canopy Frame Top Center Piece Small Canopy Frame Connection bar...
- Page 4 Quantity Description Part Large Upper Roof Cover Large Upper Roof Cover Large Upper Roof Cover Short Beam Cover Long Beam Cover Leg Post Base Plate Leg Post Top Plate L-shaped Steel Plate DON’T RETURN TO STORE...
- Page 5 DON’T RETURN TO STORE...
- Page 6 ACCESSERY Part Description Quantity 76+2 Spare M6x15L Bolt 24+1 Spare M6x20L Bolt 8+1 Spare M6x30L Bolt 20+1 Spare M6x36L Bolt 12+1 Spare M6x50L Bolt M8x45L Bolt Small Metal Washer 12+1 Spare M6 Nut M6x12 Countersink 8+1 Spare Screw 8+1 Spare Lock Washer Lawn Stake Allen Wrench...
- Page 7 Step 1 R7 x 12 R1 x 12 M6x15L Bolt M6 Small Metal Washer Do not attach this hole at this step Please don’t tighten the bolts fully at this step . Step 2 R1 x 4 R7 x 4 M6 Small Metal Washer M6x15L Bolt Tighten all bolts of steps above.
- Page 8 Step 3 R8 x 4 R7 x 16 R2 x 8 R5 x4 M6x20L Bolt M6 Nut M6 Small Metal Washer M6x50L Bolt Please don’t tighten the bolts fully at this step. Step 4 R2 x 8 R7 x 16 R8 x 4 R5 x 4 M6 Nut...
- Page 9 Step 5 R8 x 4 R5 x 4 R7 x 8 M6 Nut M6x50L Bolt M6 Small Metal Washer Insert to connecting bar (E1,E2) to the opening of the short canopy frame bar (B). Tighten all bolts of steps above. R3 x8 R7 x 8 Step 6...
- Page 10 Step 7 R6 x 1 M8x45L Bolt Tighten the bolt of this step. Step 8 R15 x 4 R7 x 16 R1 x 20 M6x15L Bolt M6 Small Metal Washer M6 Large Metal Washer Please don’t tighten the bolts at this step. Note: Top label facing upside. DON’T RETURN TO STORE...
- Page 11 Step 9 R15 x 4 R1 x 16 R7 x 12 M6x15L Bolt M6 Large Metal Washer M6 Small Metal Washer Tighten all bolts of this step. Note: Top label facing upside. Step 10 R4 x8 R7 x 8 M6 Small Metal Washer M6x36L Bolt Please don’t tighten the bolts fully at this step.
- Page 12 Step 11 R7 x 12 R4 x 12 M6x36L Bolt M6 Small Metal Washer Tighten all bolts of steps above. Step 12 R9 x 8 M6x12 Countersink Screw Tighten all bolts of this step. DON’T RETURN TO STORE...
- Page 13 Step 13 R2 x 8 R7 x 8 R10 x 8 Lock Washer M6x20L Bolt M6 Small Metal Washer For the sake of security ,at least four people is recommend to lift the top and at least four people to hold the leg post．...
- Page 14 Step 15 R7 x 8 R1 x 8 M6x15L Bolt M6 Small Metal Washer Tighten all bolts of this step. Step 16 R11 x 16 Lawn Stake DON’T RETURN TO STORE...
- Page 15 Step 17 ／ Hang the mosqutio net (N) to the top beam (A1,A2). Securely tighten all bolts and nuts. Your gazebo is ready for your use. DON’T RETURN TO STORE Printed in China...
