horiba 7541 Quick Start Manual

Instruction Manual

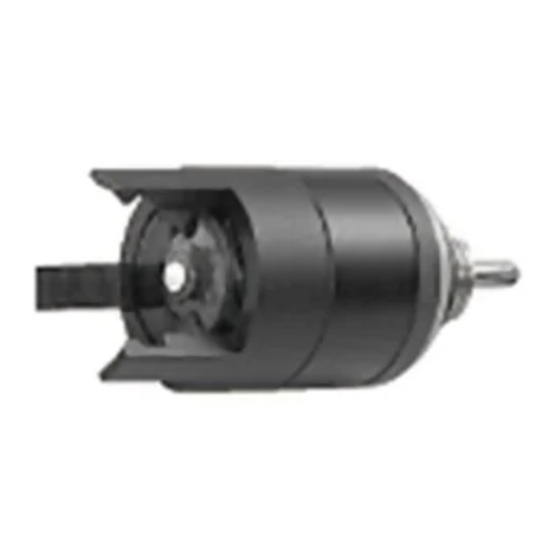

for DO Tip 7541
Thank you for your purchasing a HORIBA DO tip. Read this manual carefully before
using the tip.
Precautions on handling
Be careful not to scratch membrane.
DO tip is covered with extremely thin fragile membrane. Do not damage it by
hitting or pushing DO tip strongly.
Ensure complete waterproofing.
DO tip mounted on sensor body is designed to prevent infiltration of sample by
means of O-ring.
Do not touch the inner solution.
The inner solution is strongly alkaline. If it sticks to your cloth or skin, wash it away
with water sufficiently. The cornea of an eye is weak to alkali. Do not to allow any
droplet of inner solution to contact eyes in particular.
Storage
Connect the short socket before storage.
When storage of independent DO tip is intended, remove DO tip from DO
electrode body.
Be sure to connect DO tip to the short socket, and store it in a cool dark place.
Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451
Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net
Mounting procedure
Take a DO tip out of a pack.
The pack has a notch at its edge.
Tear the pack from there, and take
out DO tip.
Disconnect the short socket.
Attach DO tip to DO electrode body.
DO tip
Keep the short socket after detaching it from DO tip; you will need it for
storing DO tip afterwards.
Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451
Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net
Distributed by: ABQ Industrial LP USA
O-ring
Short socket
DO tip
Electrode body
