Duty RDS™
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Duty RDS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aimpoint Duty RDS

Summary of Contents for Aimpoint Duty RDS

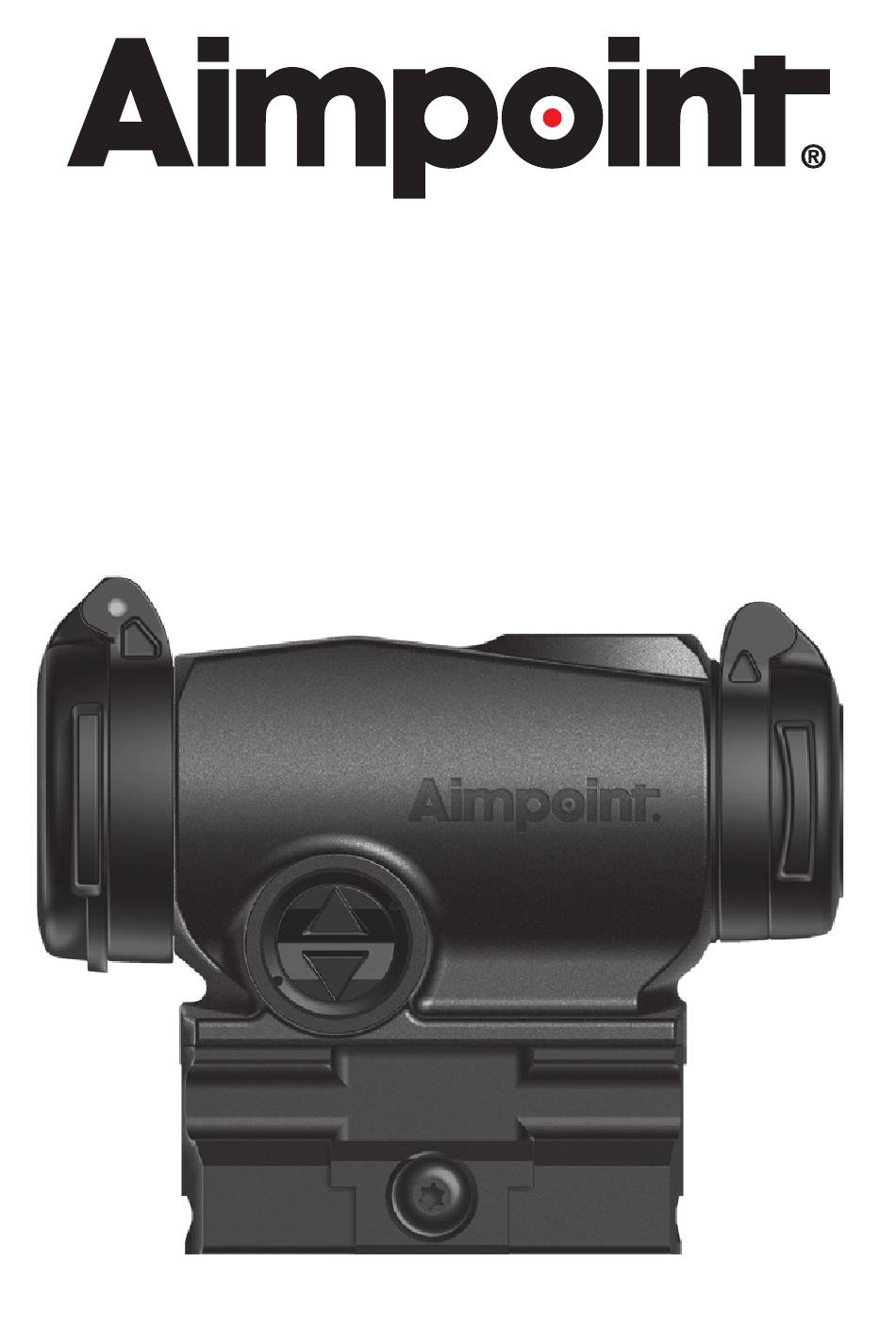

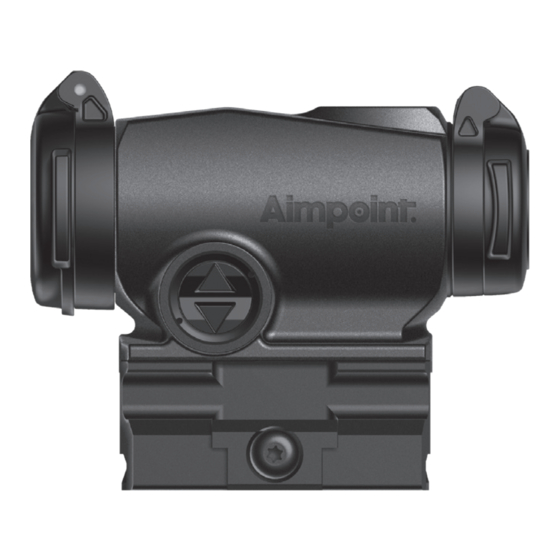

  • Page 1 Duty RDS™ User manual...
  • Page 2 1 PRESENTATION Aimpoint red dot sights are designed for the ”two ® eyes open” method which greatly enhances situational awareness and target acquisition. Thanks to the optical design the red dot follows the movement of the user’s eye while remaining fixed on target, eliminating any need for centering.

  • Page 3: Power Source

    Power source Battery type CR2032 (3.0 V) Lithium Battery life 3 years of use on setting 7 Size (L × W × H) Sight (excl. mount) 68 mm × 37 mm × 43 mm (2.7 in × 1.5 in × 1.7 in) Weight Sight (excl.
  • Page 4 1.2 Overview Fig. 1 Overview 1 Push-buttons 8 Rear flip-up lens cover 2 Front flip-up lens cover 9 A Mount base 30 mm B Mount base 39 mm 3 Torx T10 tool 10 Screws for mount (4 pcs) 4 Battery cap 11 Locking bar 5 Battery (CR2032) 12 Screw for locking bar...

  • Page 5: Operation

    2 OPERATION WARNING: Ensure the weapon is not loaded and the safety selector is in the ”safe” position before attempting to install, remove or perform maintenance. 2.1 Install or replace battery a Unscrew and remove the battery cap (4). b If replacing battery (5), remove depleted battery from the battery compartment by carefully pressing on an edge as shown in Fig 2.
  • Page 6 c Insert battery (5) with the positive end (+) toward the battery cap (4) as seen in Fig. 1. CAUTION: Check that the o-ring on the battery cap (4) is in position and in good condition to ensure there is no water leakage into the battery compartment.
  • Page 7 2.3 Install the sight If the sight is equipped with the mount shown in Fig. 1, follow the described procedure. For installation with other mounts, see accompanying instruction. a Loosen the screw (12) using the Torx T10 tool (3), and clamp the locking bar (11) around the Picatinny rail.
  • Page 8 2.4 Zeroing CAUTION: Do not continue to adjust windage and elevation screws (6) (7) if you encounter resistance. a Adjust the intensity to a comfortable setting for the red dot to contrast clearly against the target. b Fire at least three shots to evaluate points of impact. c Use the Torx T10 tool (3) to turn the adjustment screws.
  • Page 9 Fig. 4 Windage adjustments Fig. 5 Elevation adjustments...

  • Page 10: Extreme Conditions

    3 EXTREME CONDITIONS • Extreme heat (moist or dry): no special procedures required. • Extreme cold: extreme cold might shorten battery life. • Salt air: no special procedures required. • Sea spray, water, mud and snow: ensure the battery cap (3) is tightened before exposing the sight to sea spray, mud, snow or before submerging the sight in water.

  • Page 11: Troubleshooting

    4 TROUBLESHOOTING The red dot does not appear or has disappeared Make sure contact surfaces in the battery compartment are clean and verify that a working battery (CR2032) is installed correctly according to 2.1. If the sight is malfunctioning, notify local dealer/armourer. The sight is impossible to zero If an adjustment screw (6) or (7) is at its limit, check the alignment of mount and barrel.
  • Page 12 7309 Gateway Court Jägershillgatan 15 Manassas, VA 20109, USA SE- 213 75 Malmö, Sweden Phone: +1 703-263-9795 Phone: +46 (0)40 671 50 20 Fax: +1 703-263-9463 Fax: +46 (0)40 21 92 38 e-mail: info@aimpoint.com e-mail: info@aimpoint.se WWW.AIMPOINT.COM © 2021 Aimpoint AB. [16661-2]...
