3XMag-1™ Magnifier
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3XMag-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aimpoint 3XMag-1

Summary of Contents for Aimpoint 3XMag-1

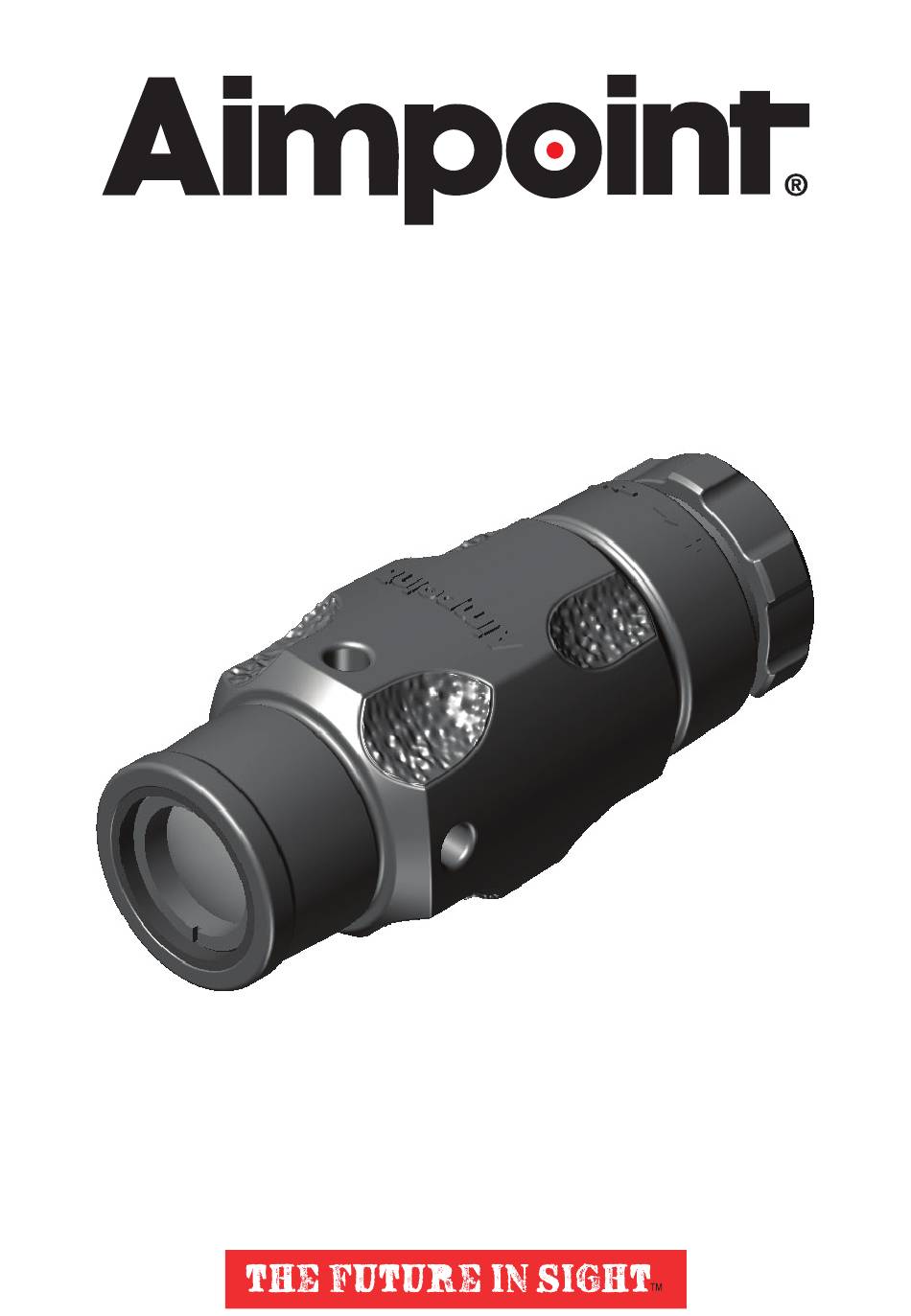

  • Page 1 3XMag-1™ Magnifier User manual...
  • Page 2 The 3XMag-1 can also be used as a handheld 3X monocular. Aimpoint magnifiers utilize the red dot in Aimpoint sights as the aiming reticle, eliminating the need for re-zeroing when shifting between non-magnified and magnified aiming.

  • Page 3: Technical Specifications

    × 1 3/16” × 1 11/16”) 4 5/8” Weight 230 g (8.1 oz) including rubber cover Mechanical interface The 3XMag-1 is provided with a 30 mm diameter tube for mounting Environmental specification Temperature range -40 °C to +55 °C Humidity +40 °C, RH: 95 % Immersion 25 m (82 ft.)

  • Page 4: Operation

    2.1 Installing the Aimpoint 3XMag-1 on a weapon ® The mounting surface (3) of the 3XMag-1 allow for mounting to any 30 mm diameter ring mount when the rubber cover is cut away, see Fig. 2. Fig. 2 Cut away rubber cover 3.
  • Page 5 The height of the mount is correct when the optical axis of the 3XMag-1 and the Aimpoint sight coincide. Select a suitable position for the 3XMag-1 on the weapon base so the eye relief is correct and feels comfortable. Assemble the 3XMag-1 to the chosen mount and install it on the weapon.
  • Page 6 2.2 Centering The 3XMag-1 does not need to be zeroed. However, an Aimpoint sight used together with the 3XMag-1 must be zeroed so the red dot of the sight creates the correct point of impact. The 3XMag-1 has two screws (1) that allow the user to center the red dot of the Aimpoint sight when viewed through the 3XMag-1.

  • Page 7: Extreme Conditions

    2.3 Diopter setting Additionally, on the 3XMag-1 it is possible to adjust the diopter setting by rotating the diopter ring (2) as shown in Fig. 6. Fig. 6 Diopter setting 2. Diopter ring 3 EXTREME CONDITIONS Use in extreme heat or cold, salt air, sea spray, water, mud and snow, dust and sand storms or high altitudes does not require any special procedures.
  • Page 8 7309 Gateway Court SE- 213 75 Malmö, Sweden Manassas, VA 20109, USA Phone +46 (0)40 671 50 20 Phone: +1 703-263-9795 Fax +46 (0)40 21 92 38 Fax: +1 703-263-9463 e-mail info@aimpoint.se e-mail: info@aimpoint.com WWW.AIMPOINT.COM © 2016 Aimpoint AB. [14614-1]...
