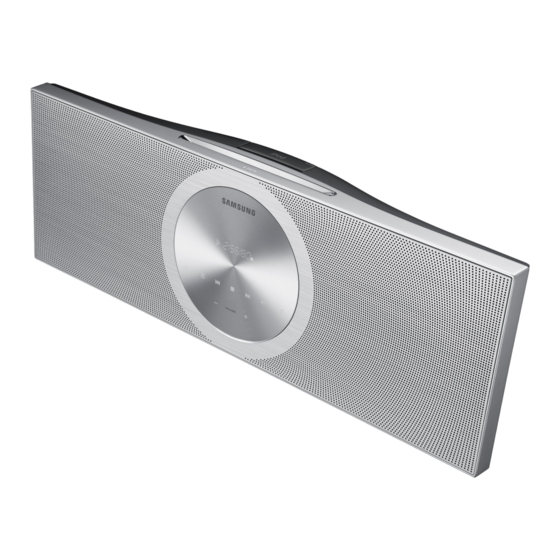

DVD MICRO COMPONENT SYSTEM
MM-D470D-ENG-ZA-0608.indd
MM-D470D-ENG-ZA-0608.indd
Sec1:1
Sec1:1

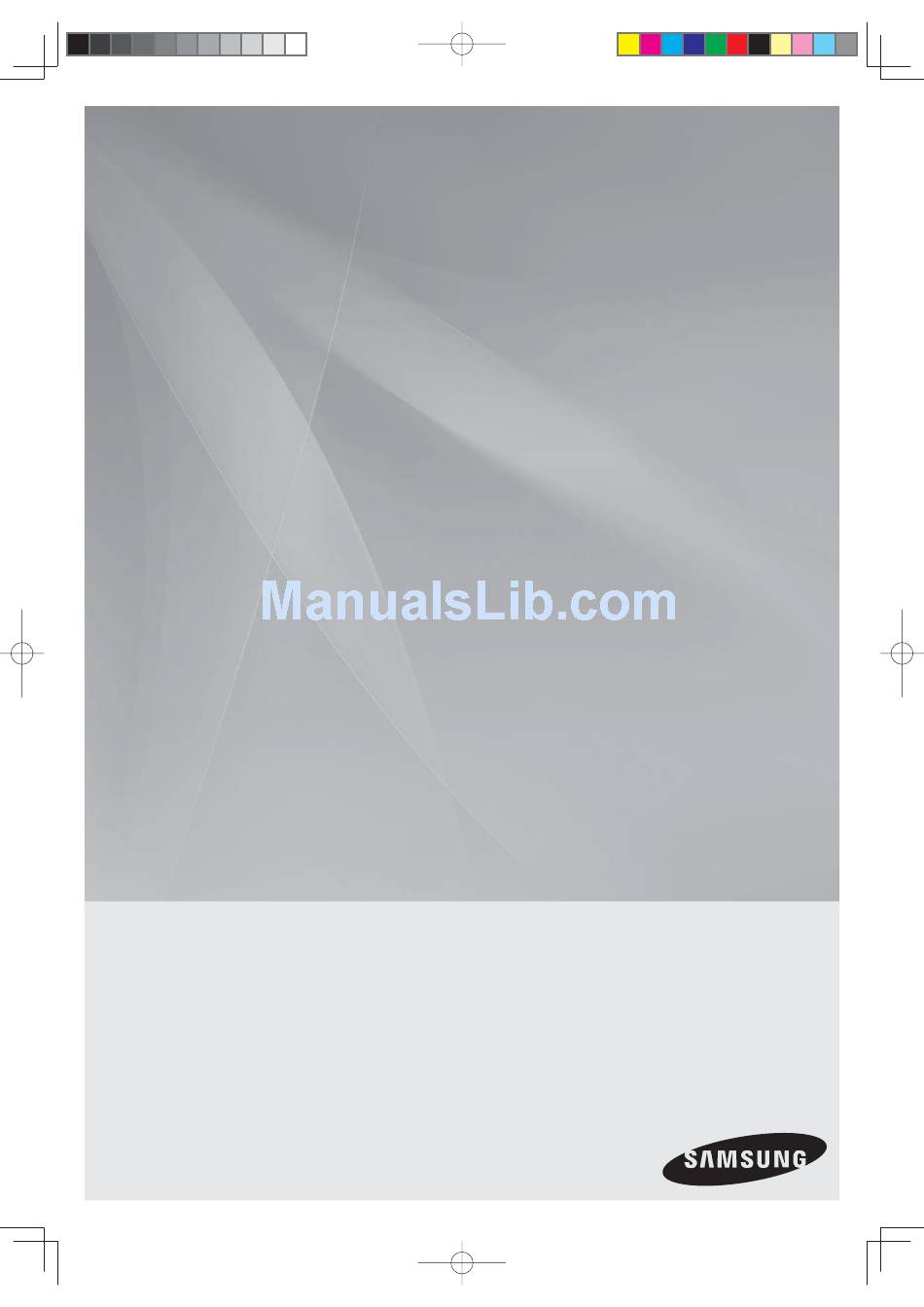

user manual
Imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
MM-D470D
2011-6-24
2011-6-24
8:43:53
8:43:53
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Samsung MM-D470D
Summary of Contents for Samsung MM-D470D
- Page 1 DVD MICRO COMPONENT SYSTEM Thank you for purchasing this Samsung product. MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Sec1:1 Sec1:1 user manual Imagine the possibilities To receive more complete service, please register your product at www.samsung.com/register MM-D470D 2011-6-24 2011-6-24 8:43:53 8:43:53...
-
Page 2: Safety Information
Consult the dealer or an experienced radio/TV technician for help. CAUTION : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user’s authority to operate it. English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Safety Warnings CAUTION RISK OF ELECTRIC SHOCK... -
Page 3: Important Safety Instructions
Check for the supplied accessories below. Video Cable FM Antenna (AH39-40001V) (AH42-00017A) MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd • Ensure that the AC power supply in your house matches with the identifi cation sticker located on the back of your product. •... -
Page 4: Cautions On Handling And Storing Discs
Corporation. Reverse engineering and disassembly are prohibited. • iPod is a trademark of Apple Inc., registered in the U.S. and other countries. Copyright © 2011 Samsung Electronics Co., Ltd. All rights reserved. Copy Protection • Many DVD discs are encoded with copy protection. Because of this, you should only connect your product directly to your TV, not to a VCR. -
Page 5: Table Of Contents
Contents SAFETY INFORMATION GETTING STARTED CONNECTIONS BASIC FUNCTIONS MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Safety Warnings Important Safety Instructions Precautions Accessories Cautions on Handling and Storing Discs License Copyright Copy Protection Features Icons that will be used in manual Disc Types and Characteristics Description... -
Page 6: Advanced Functions
We will provide you with the amount of the administration fee before we make a home visit or begin any work on your product. We recommend you read this manually thoroughly, search for a solution on line at www.samsung. com, or contact Samsung Customer Care at 1-800-SAMSUNG (726-7864) before seeking to repair your product. -
Page 7: Getting Started
BD Wise BD Wise automatically adjusts BD Wise-compliant Samsung products to their optimal settings. This feature is enabled only if BD Wise-compliant Samsung products are connected to each other using an HDMI cable. AUDIO SYNC Function Video may lag behind the audio if the product is connected to a digital TV. -
Page 8: Disc Types And Characteristics
Mexico, South America, Central America, Australia, New Zealand, Pacifi c Islands, Caribbean Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia China English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Disc types that can be played Disc Types & Recorded Mark (Logo) DVD-VIDEO Area... - Page 9 Software updates for incompatible formats are not supported. (Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.) MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd • If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.
- Page 10 Multi slot USB card reader. - The USB card reader may not be supported, depending on the manufacturer. - If you install multiple memory devices into a multi English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd card reader, you may experience problems. Supported fi le Formats Still...
-
Page 11: Description
4. POWER BUTTON 5. FUNCTION BUTTON 6. VOLUME CONTROL BUTTON 7. SKIP/SEARCH FUNCTION BUTTON 8. OPEN/CLOSE BUTTON 9. PLAY/PAUSE BUTTON 10. WINDOW DISPLAY 11. BUILT IN SPEAKER 12. DISC SLOT 13. iPod Dock JACK MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Description English 2011-6-24 2011-6-24 8:44:26 8:44:26... -
Page 12: Rear Panel
Software upgrades using the USB Port must be performed with a USB memory flash stick only. Do not obstruct the ventilation holes. English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd PHONES ONLY FOR SERVICE 4 5 6 7 Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack. -
Page 13: Remote Control
Do not expose the batteries to heat or a fl ame. The remote control can be used up to approximately 23 feet (7 meters) in a straight line. MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Remote control FUNCTION button DVD* button SOUND, C button... -
Page 14: Connections
Turn this product on fi rst before you set the video input source on your TV. See your TV owner's manual for more information on how to select the TV's Video Input source. English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd ONLY FOR SERVICE AUX IN... -
Page 15: Hdmi Function
HDMI FUNCTION HDMI Auto Detection Function If your TV is a Samsung TV and it supports the CEC function, the product's video output will automatically change to HDMI mode if connected with an HDMI cable while the power is on. -
Page 16: Connecting External Components
Connect AUX IN (Audio) on the player to the Audio Out of an external analog component. Press the ) button to select AUX input. You can select AUX by pressing the FUNCTION button on the remote control. English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Connecting External Components PHONES ONLY FOR SERVIC... -
Page 17: Connecting The Fm Antenna
Connect the headphones to the PHONES jack on the rear panel. • When you plug in the headphones, the built-in speaker shuts off. ✎ NOTE Prolonged use of headphones at a high volume may damage your hearing. MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Connecting the FM Antenna Connecting Headphones English 2011-6-24... -
Page 18: Setup
If the Initial Setting screen does not appear, refer to Initial Setting. (see page 21) English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Accessing and Using the Settings Menu The access steps may differ depending on the selected menu. The GUI (Graphical User Interface) in this manual may differ, depending on the fi... -
Page 19: Display
Depending on the type(NTSC or PAL) of main unit you have, the TV display picture may be different. BD Wise (Samsung products only) BD Wise is Samsung's latest inter-connectivity feature. When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set automatically. MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd... -
Page 20: Hdmi Format
300 mSec. Set it to the optimal status. HDMI AUDIO The audio signals transmitted over the HDMI Cable can be toggled On/Off. English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd • On : Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your TV speakers only. -
Page 21: System
Audio and Subtitle, and enter the language code of your country (see page 37). You cannot select OTHERS in the OSD Language menu. ✎ NOTE MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd The selected language will only appear if it is supported on the disc. -
Page 22: Basic Functions
TV. • If the product is left in the screen saver mode for more than 20 minutes, the power will automatically turn off.(except while playing music) English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Audio CD(CD-DA)/MP3/WMA Playback Track01 1/17 0:15 / 3:59 Function DVD/CD... -
Page 23: Jpeg File Playback
The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG fi les and 2048 x 1536 (or 3.0 MPixel) for progressive image fi les. MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Using the Playback Function Forward/Reverse Search Photos, and During playback, press a SEARCH () button. -
Page 24: Using The Disc Menu
NOTE This function is availabel only for the DivX that contains time information. English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Using the Disc Menu You can view the menus for the audio language, subtitle language, profi le, etc. During playback, press and hold the MENU button on the remote control. -
Page 25: Repeat Playback
(Normal Repeat Track Repeat All Random Repeat Section A-B) (Normal Repeat Track Repeat DIR Repeat All Random) MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd A-B Repeat Playback You can repeatedly play back a designated section of a DVD or CD. During the DVD disc or CD playback, press and hold the REPEAT button on the remote control. -
Page 26: Displaying Disc Information
TOOLS menu Title ) : To access the desired title English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd when there is more than one on the disc. For example, if there is more than one movie on a DVD, each movie will be identifi ed as a Title. -
Page 27: Selecting The Subtitle Language
Korean and Chinese) for the fi le name. • DivX subtitle fi les use *.smi, *.sub, or *.srt suffi xes. Subtitle fi les larger than 148 kbytes are not supported. MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Angle Function This function allows you to view the same scene at different angles. -
Page 28: Sound Mode
If no buttons are pressed within 3 seconds, the setting is automatically cancelled and the previous setting is saved. English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd P BASS Your micro-compact system has a bass amplifi cation function called Power Bass.This function makes the sound more powerful and real. -
Page 29: Mute Function
‘ MUTE ’ appears in the display. To switch the sound back on, press the button again or the VOL-, + button. MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Display Function You can view all functions available on the display and adjust the brightness of the display. -
Page 30: Listening To Radio
✎ NOTE This applies only when listening to an FM station. English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Presetting Stations Example : Presetting FM 89.10 in the memory Press the FUNCTION button to select FM. STOP ( ) button on the front panel to Press the select <MANUAL>... -
Page 31: Setting The Clock
TIMER/CLOCK button once. # or $ You can also use buttons in steps 3 and 4. MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Timer Function The timer enables you to switch the system on or off at specifi c times automatically. ... -
Page 32: Sleep Timer Function
To resume the timer, press and hold OFF again. Result: is displayed again. English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Sleep Timer Function You can set the time that the DVD player will shut itself off. Press and hold the ... -
Page 33: Advanced Functions
Remove the USB cable from the USB port slowly. Otherwise, it may cause damage to the USB port. MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Using an iPod (optional) If the system is connected to an iPod,You can play music and video in the iPod using the system. - Page 34 This is what is attached to an MP3 fi le to carry information relevant to the fi le such as the title, artist, album, year, genre and a comment fi eld. English MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd iPod models you can use with this product ...
- Page 35 If the file name is the same as an existing file, FILE EXISTED is displayed on the TV, and the function is cancelled. Tuner/External Source “RECORDING” is displayed. MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd To stop recording, press the The system automatically creates and saves the recording as an MP3 fi le. ...
- Page 36 Refer to the chart below if this unit does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom I cannot eject the disc.
- Page 37 Armenian 1130 Bhutani 1235 Interlingua MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd Check/Remedy • While the “NO DISC” message appears on the display of the product, press and hold the STOP () button on the main unit for longer than 5 seconds with no disc (reset function).
- Page 38 Channel separation Input sensitivity *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. - Design and specifi cations are subject to change without prior notice. - For the power supply and Power Consumption, refer to the label attached to the product.
- Page 39 SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
- Page 40 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Area Contact Center ` North America Canada 1-800-SAMSUNG (726-7864) Mexico 01-800-SAMSUNG (726-7864) U.S.A 1-800-SAMSUNG (726-7864) ` Latin America...
- Page 41 QUESTIONS OR COMMENTS? COUNTRY CALL 1-800-SAMSUNG IN THE US (7267864) MM-D470D-ENG-ZA-0608.indd MM-D470D-ENG-ZA-0608.indd OR VISIT US ONLINE AT Samsung Electronics America, Inc. www.samsung.com/us 85 Challenger Road Ridgefi eld Park, Code No. AH68-02345Y(Rev 0.0) WRITE NJ 07660-2112 2011-6-24 2011-6-24 8:45:50 8:45:50...
