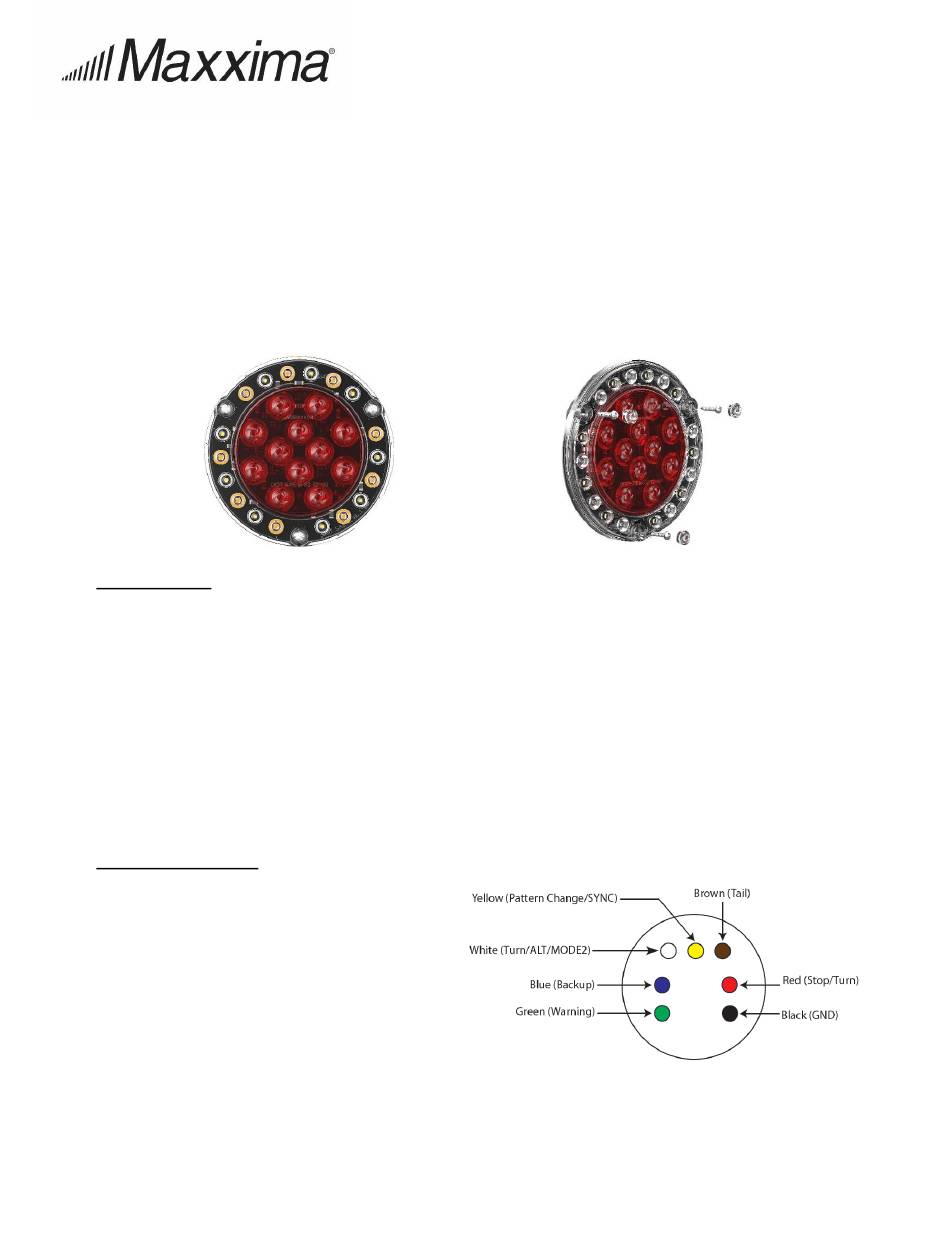

M85427R-YCL
Installation Manual
Maxxima M85427R-YCL 5.5" Round Flange Mount, Combination Stop/Turn/Tail (STT), Backup, Flashing
Warning, and Optional Amber Turn Signal.
1) 4" Round Red 12 LED Stop, Tail, and Optional Red Turn Signal. All DOT FMVSS108 compliant.
2) 9 LED White Back-Up Light. DOT FMVSS108 compliant.
3) Optional 9 LED Amber Turn Signal. DOT FMVSS108 compliant.
4) Flashing Warning Light: Single Color 9 LED or Dual-Color 18 LED. SAE Class 1 Compliant
Specifications:
LEDs
30 (12 Red/9 White/9Amber)
Voltage
12.8VDC
Amp Draw
Tail 20mA, Back-Up 0.2A, Stop 0.2A, Amber Turn 0.1A, Warning 0.4A
5.5" Diameter x 0.5" Depth
Dimensions
3 Hole Flange. Bolt circle diameter: 4.9"
Mounting
9 Leads 18AWG Blunt Cut, 10.0"
Connector
IMPORTANT: Before starting the installation, it is recommended that the light is held in its desired
mounting position temporarily to ensure that the desired location is suitable for placement. Ensure that
proper clearance for the wires and hardware is achieved and that the lights LEDs are unobstructed.
Wiring Designations:
Black
Ground (-)
Brown
Tail (+VDC)
Blue
Back-up (+VDC)
Red
Stop & Turn (+VDC)
White
Optional Amber Turn (+VDC)
Optional Warning 'Mode 2' (-GND)
Green
Flashing Warning (+VDC)
Yellow
Programming (+VDC)
~ 1 Second Next Flash Pattern
~ 3 – 5 Sec. Toggle Color (Single Color Pattern)
~ 7+ Sec. Reset to Pattern # 1
Advertisement
Related Manuals for Maxxima M85427R-YCL
Summary of Contents for Maxxima M85427R-YCL
- Page 1 M85427R-YCL Installation Manual Maxxima M85427R-YCL 5.5" Round Flange Mount, Combination Stop/Turn/Tail (STT), Backup, Flashing Warning, and Optional Amber Turn Signal. 1) 4” Round Red 12 LED Stop, Tail, and Optional Red Turn Signal. All DOT FMVSS108 compliant. 2) 9 LED White Back-Up Light. DOT FMVSS108 compliant.
- Page 2 Wiring Instructions First, determine if the vehicle has a dedicated turn signal wire or uses a common wire for both stop light and turn signal. 4-Wire Stop/Turn/Tail wiring (AMBER TURN SIGNAL) 3-Wire Stop/Turn/Tail wiring (RED TURN SIGNAL) If vehicle has a dedicated Left & Right Turn Signal If vehicle uses a common wire for both stop light and wires, independent of the Stop Light, use the optional turn signal, use the Red Turn Signal by connecting...
- Page 3 Wiring Instructions (continued) Step 8 “Simultaneous Flash” – or – “Alternate Flash” To flash all lamps synchronously, join all yellow wires together. This allows the lights to communicate with each other. To use alternate or “wig-wag” flash, identify lamps in “Group 1” and “Group 2”; Connect White wires in “Group 1”...
- Page 4 Note: Maxxima (a division of Panor Corp.) reserves the right to change any specifications, information and instructions in this manual without notice. Panor Corp. makes no warranty of any kind with regard to this manual, including but not limited to the proper and legal use and the fitness of this product for a particular purpose.
