CLICK PLUS C2-02CPU
The CLICK PLUS C2-02CPU provides the
full power of the CLICK PLUS CPU family,
in a unit optimized for wireless connectivity.
It offers both Wi-Fi and Bluetooth
connection for simple wireless provisioning
and connectivity with the CLICK Mobile
app. The CPU is compatible with the full
line of CLICK PLUS Option Slot modules
and CLICK Stackable modules.
Key Features
ƒ
Real Time Clock/Calendar
ƒ
Battery backup (battery sold separately)
ƒ
micro-B USB port
ƒ
WLAN
ƒ Bluetooth
Copyright© 2020, Automationdirect.com Incorporated/All Rights Reserved Worldwide

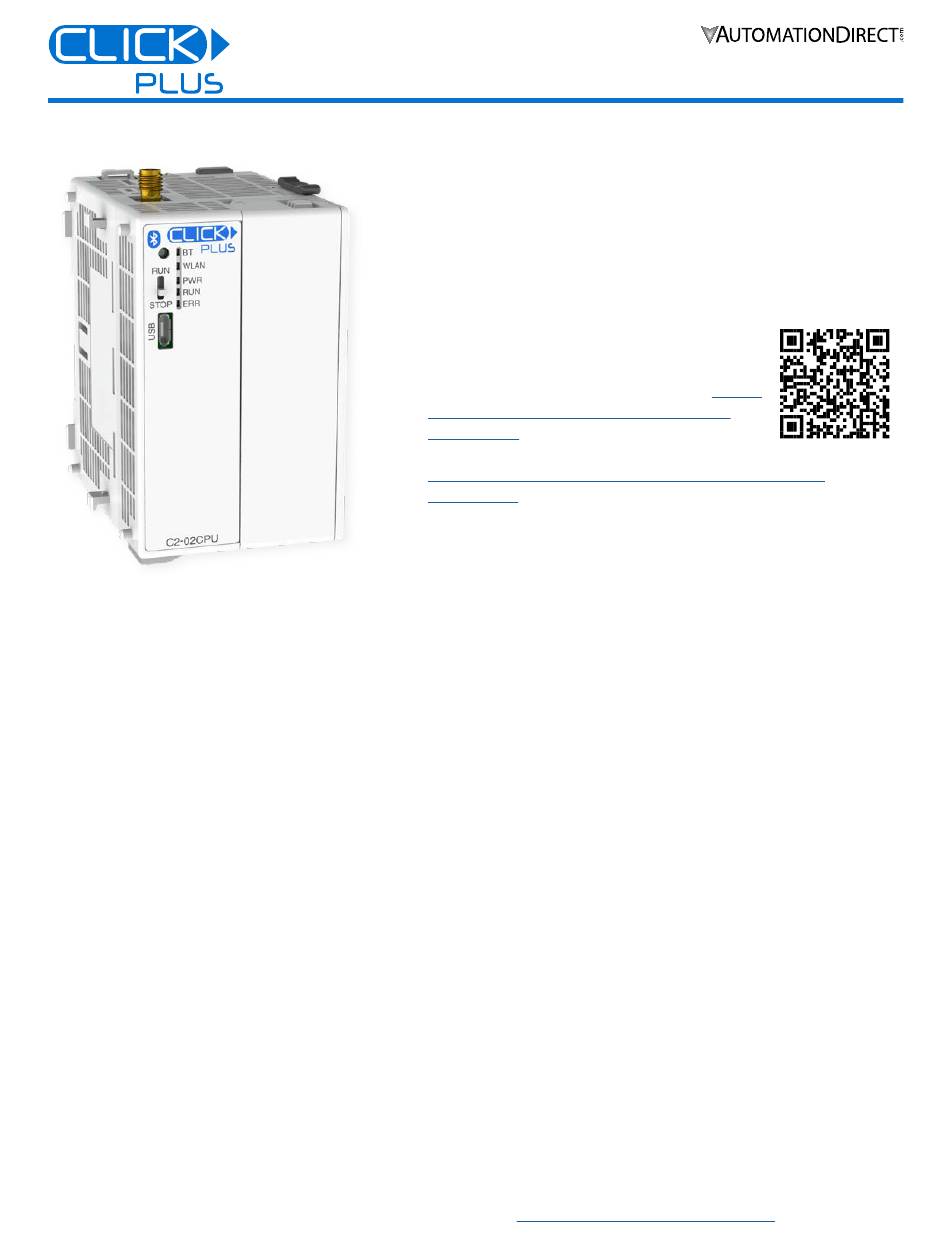

C2-02CPU Quick Start Guide
Shown with optional C2-FILL
slot cover (sold separately)
Before You Begin...
This guide provides a quick overview of installation and setup of your
CLICK PLUS CPU. It assumes some familiarity with the installation
and operation of industrial control equipment.
Please read and understand the information in this guide prior to
installation, operation, or servicing this equipment.
The CLICK PLUS User Manual provides full specifications and more
in-depth information on installation, setup,
programming and operation of the device. The
User Manual (C2-USER-M) is available in PDF
format by scanning this QR code or from
www.automationdirect.com/pn/doc/manual/
C2-USER-M. Extensive online help is also
available from within the CLICK software or at
https://www.automationdirect.com/clickplcs/free-software/
software-help.
What You'll Need
ƒ CLICK PLUS CPU
ƒ
PC, or Android or iOS mobile device (for setup/provisioning)
ƒ
Click Software ver. 3.00 or later (PC) or Click App (mobile device)
ƒ
24VDC power supply (SELV and Limited Energy)
(CLICK power supply C0-00AC or C0-01AC is recommended.)
ƒ
Appropriate enclosure with vertical surface for DIN rail or surface mount
ƒ
M4 screws, spring washers and flat washers if surface mounting
ƒ
Ferrules and crimping tool for wire terminations (recommended)
ƒ An Option Slot cover (part #C2-FILL) is recommended if you are not
planning to use an Option Slot module. (Sold separately.)
ƒ
Basic tools (screwdriver, wire stripper, etc.)
PLEASE REVIEW THE SAFETY WARNINGS ON THE
NEXT PAGE!
