CPU Specifications

User Memory
50MB (Includes program, data and documentation)
Memory Type
Flash and Battery Backed RAM
Retentive Memory
500kB
Scan Time
1.3 ms (1K Boolean, 128 I/O)
External Power
24VDC ±2% @ 5W plus 1.25 W per additional I/O module
Required
See page 6 for Power Supply options
Recommended
Edison S5061-R, Time Delay, 1A Fuse
Fuse (External)
USB IN: Programming, Monitoring, Debug, Firmware
ETHERNET: (10/100Mbps Ethernet) Programming, Monitoring,
Debug, Firmware, Email SMTP Client, Modbus TCP Client
Communications;
(16 Servers) and Server (16 Clients), Ethernet / IP Scanner (32) and
4 Integrated Ports
Adapter (4), Custom Protocol over Ethernet, ProNet.
RS-232: (RJ12, 1200-115.2k Baud) ASCII, Modbus
RS-485: Removable Terminal Included, (1200-115.2k Baud)
ASCII, Modbus RTU
Data Logging
MicroSD card slot
Hardware Limits
240 Hardware I/O Points All 16-point I/O Modules*
of System
Application Functions
Array Functions
Counters/Timers
Instruction Types
Communications
Data Handling
Drum Sequencers
Math Functions
Real Time Clock
±2s per day typical at 25°C
Accuracy
±10s per day maximum at 60°C
*If used with 26W or larger power supply
Sales 800-633-0405
PID
Program Control
String Functions
System Functions
Contacts
Coils

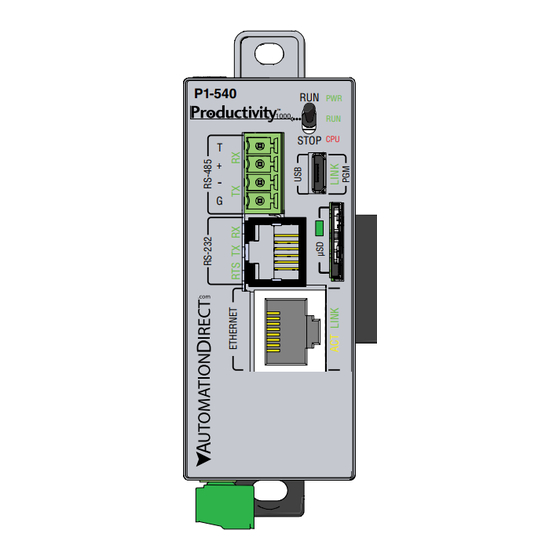

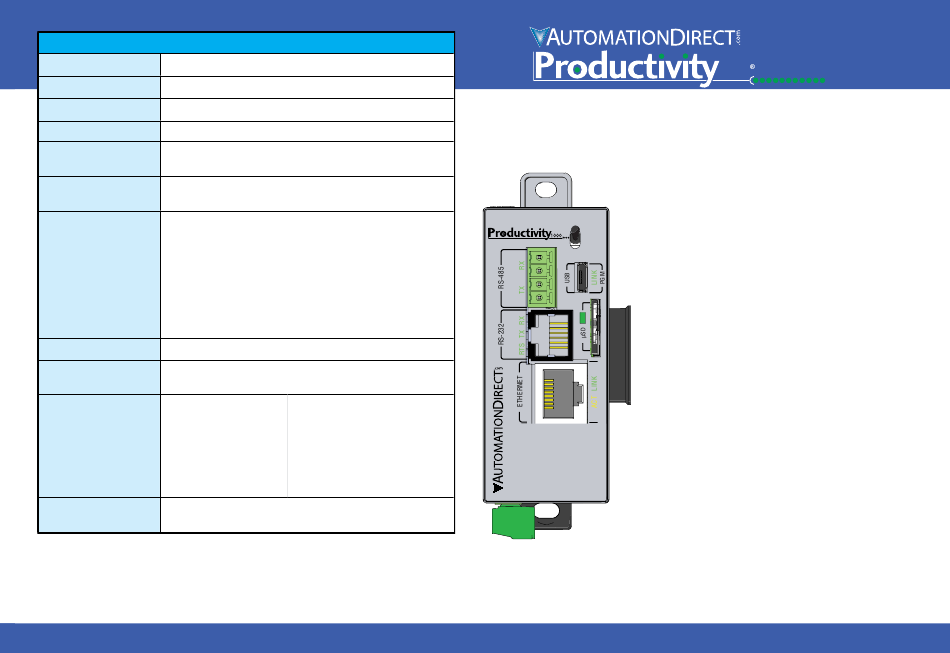

P1-540 CPU
The P1-540 is a high-performance CPU for use with
the Productivity1000 System.
P1-540
RUN
PWR
™
RUN
STOP
CPU
T
+
-
CPU Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 1
G
CPU Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Module Installation Procedure . . . . . . . . . . . . . . . . . 2
Battery Installation Procedure . . . . . . . . . . . . . . . . . 3
Micro SD Specifications . . . . . . . . . . . . . . . . . . . . . 3
Port Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Micro USB Specifications . . . . . . . . . . . . . . . . . . . . 5
CPU Status Indicators . . . . . . . . . . . . . . . . . . . . . . . 6
CPU Stop/Run Switch Specifications . . . . . . . . . . . 6
General Specifications . . . . . . . . . . . . . . . . . . . . . . 8
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
www.productivity1000.com
1000
1
