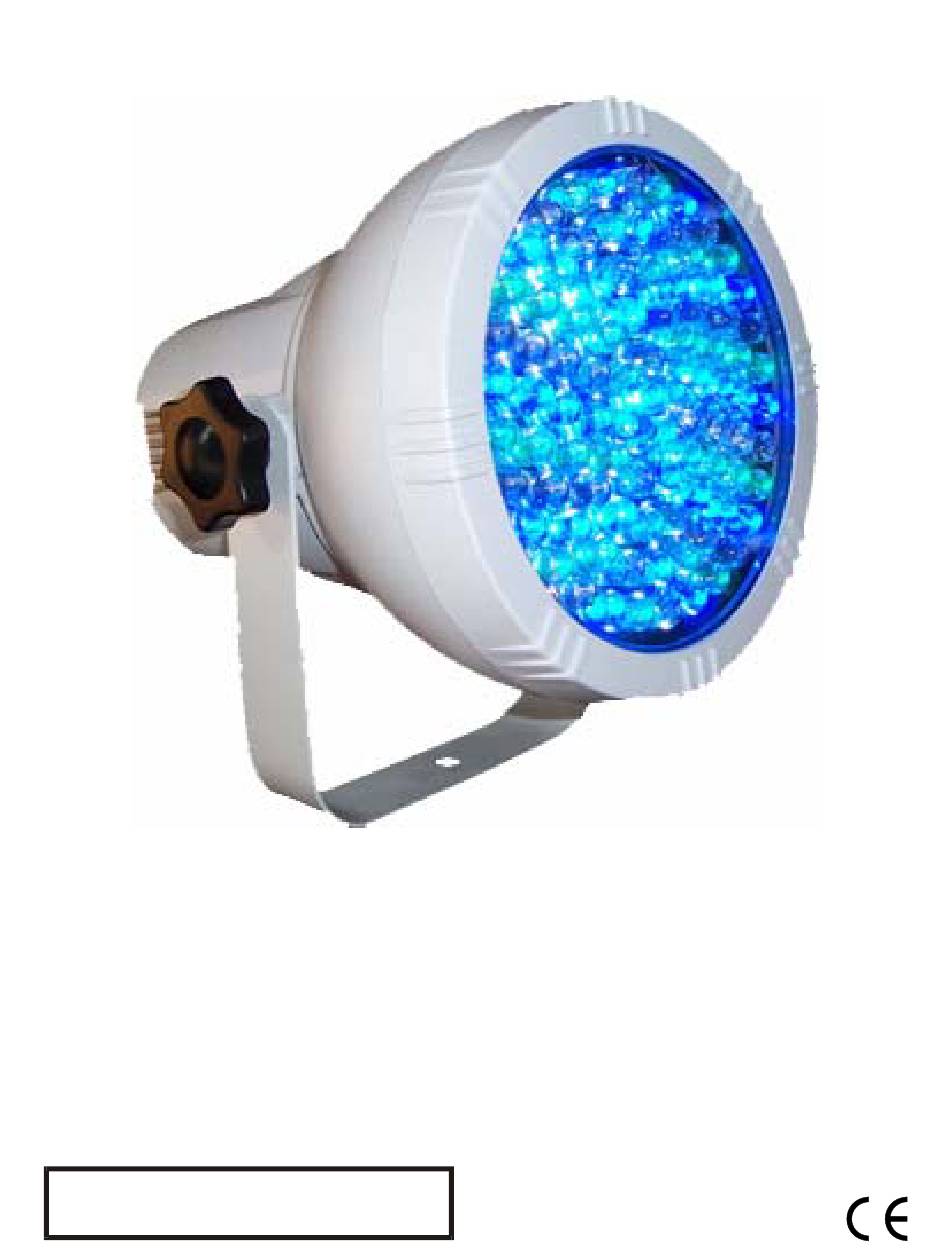

- Page 1 Information specifically for: DL-PAR46RGB/B - Black DL-PAR46RGB/W - White V1.35 This manual contains important information. Please read before operating fixture.
- Page 2 It is the owner’s responsibility to provide invoices for proof of purchase, purchase date and dealer or distributor. If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment.
-
Page 3: Table Of Contents
Table of Contents Specifications ..........................4 Unpacking ...........................5 Power............................5 Mounting .............................5 Stand-alone Control ........................6 Static Mode (R,G,B) ........................6 Strobe Mode ..........................6 Color Fade Mode ........................6 Color Step Mode ........................6 Audio Color Step Mode ......................6 Audio to Intensity Mode......................6 DMX-512 Control.........................7 DMX Data Connection ......................7 Data Terminator ........................7 Adapter 5-to-3 pin ........................7 DMX Start Address ........................8... -
Page 4: Specifications
Specifications Fixture Overview • 102 High Brightness LEDs • Beam Angle – Clear 27° or Frost 32° w/ diffused edge • Light Weight Plastic Housing • Low Power Consumption • Clear and Frost Lenses Included • Indexed 16 Color Macro •... -
Page 5: Unpacking
Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain carton and all packing material for inspection. -
Page 6: Stand-Alone Control
Stand-alone Control When DIP Switch #10 is in the OFF position, the remaining switches can be used to operate the fixture in Stand-alone mode. Stand-alone Modes (Switch #10 in OFF position) Switch Function Notes Static Red Switches 1,2 and/or 3 can be combined Static Green Switches 1,2 and/or 3 can be combined Static Blue... -
Page 7: Dmx-512 Control
DMX-512 Control Fixtures require a "Start Address,” setting the first DMX channel containing data for the fixture (see DMX Background). Before addressing fixtures, consult the manual of the system’s DMX controller to select a desirable addressing scheme. Valid Start Addresses are from 1 to 255 for this fixture. -
Page 8: Dmx Start Address
DMX Start Address DIP Switch Values These units can respond to DMX addresses 1 thru 255. To place the fixture in Switch Value DMX mode, DIP Switch #10 is set ON. Next, set the start address using the other DIP Switches located on the back of the fixture. Each switch has an associated value. -
Page 9: 1 : Master Dimmer
CH 1 : Master Dimmer The Master Dimmer controls the CH 1 – Master Dimmer actual output level while the DMX Value Function relative level of each color is set 0 – 4 Black Out by the R, G or B channels or the 5-255 Intensity - Dark to Full Brightness Color Macro/Scroll Channel. -
Page 10: 6 : Shutter
45-49 50-54 Orange 55-59 Yellow 60-64 Lime 65-69 Lt. Green 70-74 Green 75-79 Teal 80-84 Cyan 85-89 Color Scroll Snap Speed 1 (Fastest) 90-94 Color Scroll Snap Speed 2 95-99 Color Scroll Snap Speed 3 100-104 Color Scroll Snap Speed 4 105-109 Color Scroll Snap Speed 5 110-114... -
Page 11: Maintenance
Maintenance Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance. -
Page 12: Troubleshooting
Troubleshooting Symptom Possible Cause / Solution No Power Check for power on mains Check main fuse and fuse holder Erratic / No response to DMX Check data cables: connection and proper wiring Check DIP Switch settings (#10 set to on) Check Start Address Incorrectly responds to DMX Check Start Address...
