HOMEDEPOT RP90150 Installation Manual

NOTE: The faucet (A) and lift rod (M) are
not included with the product.

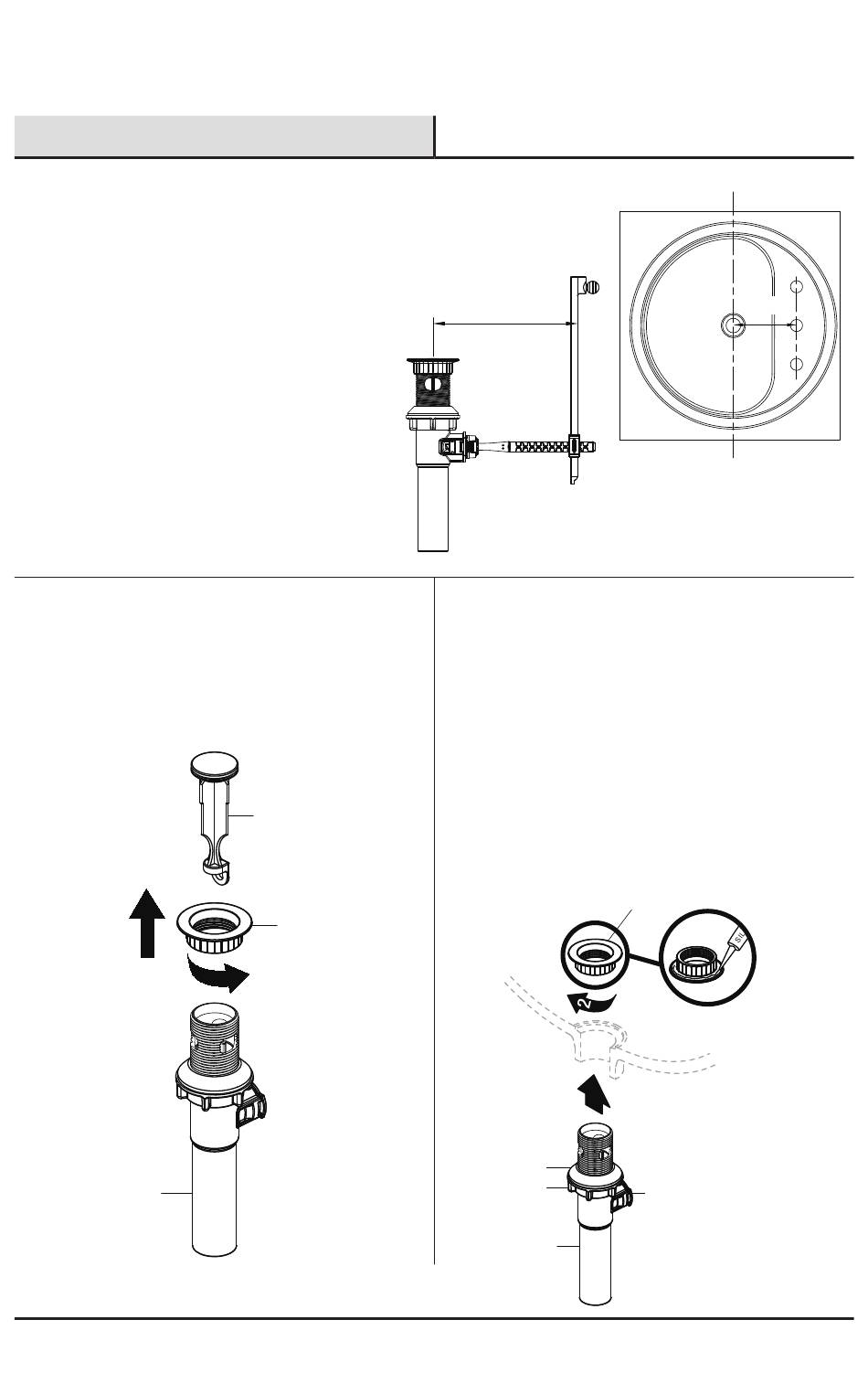

Installation
1
Preparing for installation
□
The length of the horizontal rod provided
is 88 mm to 158 mm (3.46 in. to 6.22 in.).
□
If you need the extended horizontal rod
for the replacement, please call customer
service for the extended horizontal rod.
The extended length of the horizontal rod
is 66.5mm to 197mm (2.2 in. to 7.75 in.).
2
Preparing the pop-up assembly
□
Remove the pop-up stopper (D) and drain
flange (E) from the drain body (H).
H
D
E
88 mm to 158 mm
(3.16 in. to 6.22 in.)
3
Installing the drain body
□
Apply silicone sealant (not included) under the
drain flange (E) and place the drain flange (E)
into the drain hole of the sink.
□
From underneath the sink, screw the drain
body (H) onto the drain flange (E). Ensure that
the opening (1) for the ball rod on the drain
body (H) faces towards the rear of the sink.
□
Tighten the rubber washer (F) and lock nut (G)
on the drain body (H). Hand-tighten only.
1
F
G
H
1
Please contact 1-855-HD-GLACIER for further assistance.
Model#
RP90150
RP90151
RP90152
88 mm to 158 mm
(3.16 in. to 6.22 in.)
