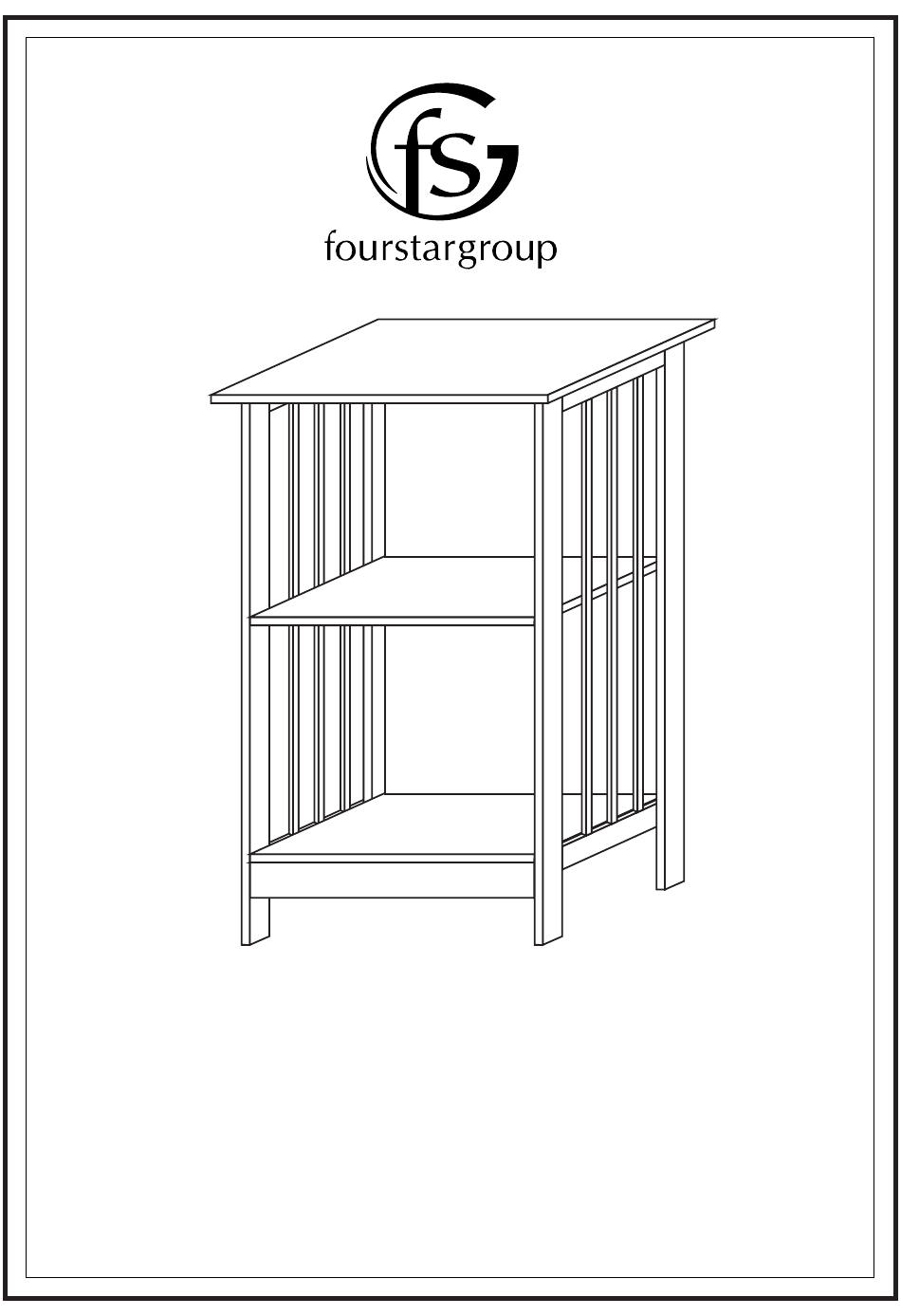

- Page 1 MODEL: 11224541V / MODELO: 11224541V WOODEN 2 TIER BOOKCASE LIBRERO DE MADERA DE 2 ESTANTES...
- Page 2 PARTS AND HARDWARE LISTA DE PARTES Y HARDWARE HARDWARE LIST LISTA DE HARDWARE LEFT SIDE SHELF 1 PC ESTANTE LATERAL IZQUIERDO 1 PZ RIGHT SIDE SHELF 1 PC ESTANTE LATERAL DERECHO 1 PZ MIDDLE PANEL 1 PC PANEL MEDIO 1 PZ BOTTOM PANEL 1 PC PANEL INFERIOR...
- Page 3 STEP 1 STEP 1.1 ATTACH CROSS BAR (G) AND BOTTOM PANEL (D) TO LEFT SIDE SHELF (A) AND RIGHT SIDE SHELF (B) USING WOOD DOWELS (I) AND SCREWS (H), THEN INSERT BACK PANEL (F) AS SHOWN. STEP 1.2 ATTACH MIDDLE PANEL (C) TO LEFT SIDE SHELF (A) AND RIGHT SIDE SHELF (B) USING SCREWS (H), THEN INSERT BACK PANEL (F) AS SHOWN.
- Page 4 STEP 2 ATTACH TOP PANEL (E) TO FINISHED STEP 1 USING SCREWS (H) AS SHOWN. PASO 2 UNA EL PANEL SUPERIOR (E) PARA LA ETAPA 1 TERMINADA CON TORNILLOS (H) COMO SE MUESTRA. 10 LBS WIGHT MAXIMUM: 30LBS (13.6KG) PESO MAXIMO: 30LBS (13.6KG) Esta unidad está...
