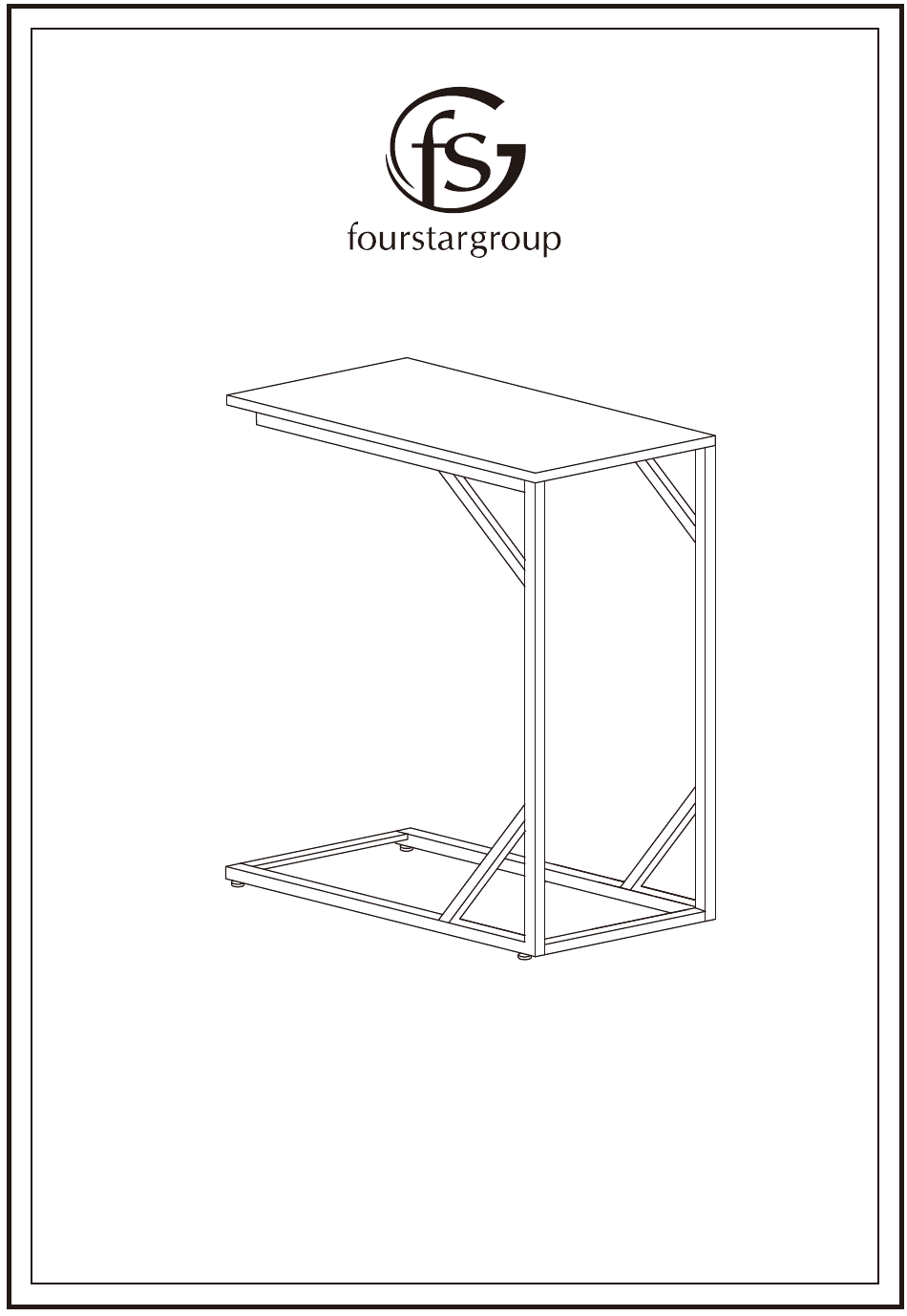

- Page 1 MODEL: 11224575 SOFA SLIDE TABLE...
- Page 2 PARTS LIST AND HARDWARE PARTS LIST SIDE FRAME 2 PCS 2 PCS TOP PANEL 1 PC 8 PCS BOLT 4 PCS GLIDE 1 PC ALLEN WRENCH...
- Page 3 ASSEMBLY INSTRUCTIONS CAUTION: 1. READ THIS INSTRUCTION MANUAL BEFORE ASSEMBLE. 2. ASSEMBLE ON SOFT SURFACE TO PREVENT DAMAGE TO THE PRODUCT FINISH. STEP 1. ATTACH BARS (B) TO SIDE FRAMES (A) USING BOLTS (D) WITH PROVIDED ALLEN WRENCH (F), DO NOT TIGHTEN THE BOLTS. DON'T TIGHTEN ALL BOLTS.
- Page 4 STEP 2. ATTACH TOP PANEL (C) TO STEP (1) FINISHED PART USING BOLTS (D) WITH PROVIDED ALLEN WRENCH (F). TIGHTEN ALL BOLTS AT THIS TIME. THEN SCREW THE GLIDES (E) ONTO THE BOTTOM OF TABLE AS SHOW. TIGHTEN ALL BOLTS. BOTTOM 20 LBS MAXIMUM...
