03 - NTRIP Modem Connection
The NTRIP Modem can be used with an RTK enabled VBOX or other GNSS receiver, connection is made via
the
bottom Hirose
connector.
The baud rate for the serial output of RTCM corrections from the Modem is 115200 kbit/s. To configure this within a
VBOX 3i follow the
instructions
below, if you are using another GNSS receiver, you will need to make sure that
the device is configured to communicate at the same rate.
Antenna
Attach the supplied antenna (ANTMSTUBSMAM) to the SMA connector on the
top of the
unit.

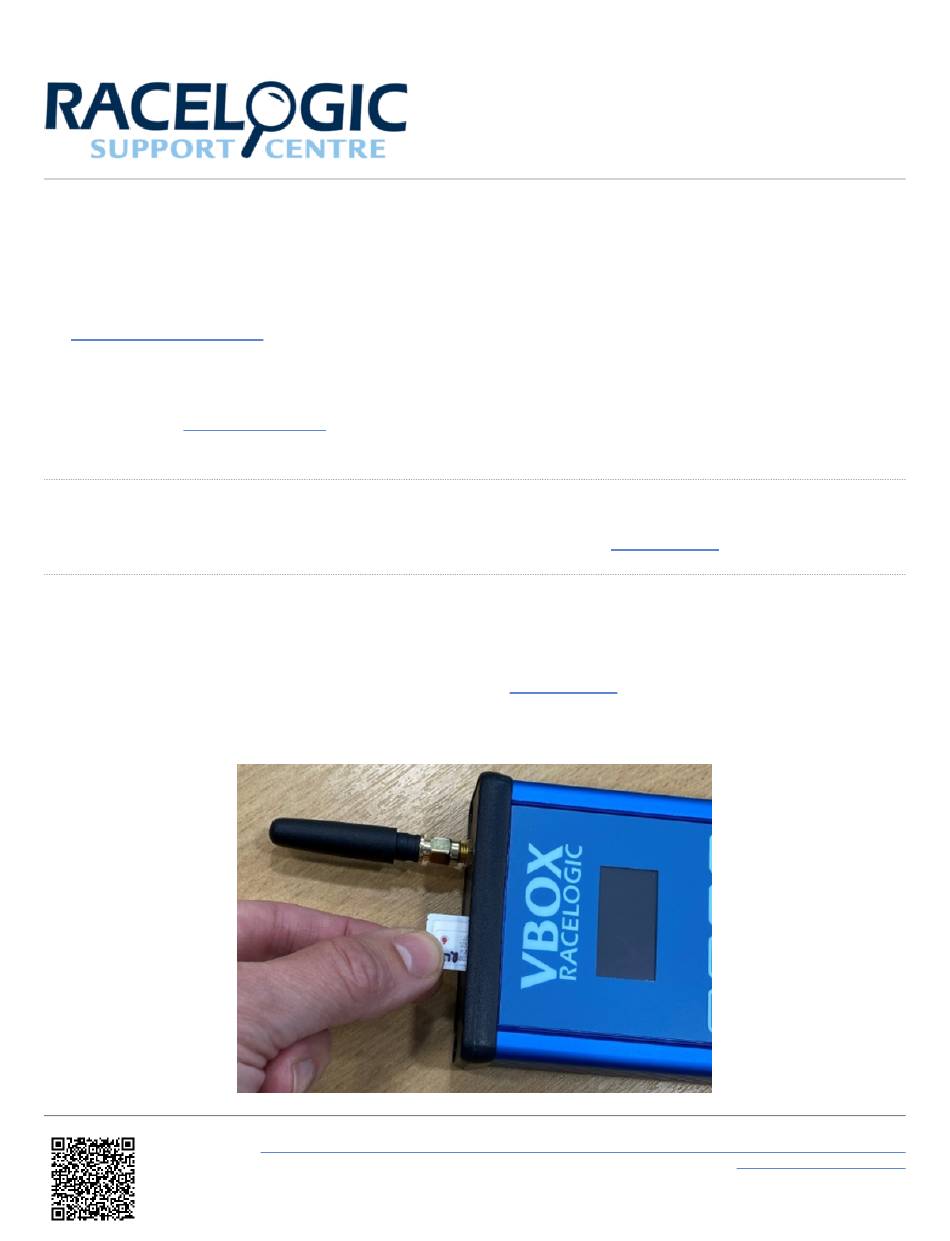

SIM Card
The NTRIP Modem can either use the internal 4G modem via a Standard SIM card or a Wi-Fi connection to acquire the
NTRIP correction messages from the server. If you are intending to use the internal 4G modem, you will need to use
your own data Standard SIM card. Insert this in to the slot on the
top of the
unit, with the logo facing the front screen
side/ contact facing the rear, chamfered edge in first.
https://en.racelogic.support//Product_Info/Telemetry_Systems/NTRIP_Modem/NTRIP_Modem_User_Guide/03_-
_NTRIP_Modem_Connection
1

Advertisement

loading

Related Manuals for Racelogic NTRIP

Summary of Contents for Racelogic NTRIP

  • Page 1 SIM Card The NTRIP Modem can either use the internal 4G modem via a Standard SIM card or a Wi-Fi connection to acquire the NTRIP correction messages from the server. If you are intending to use the internal 4G modem, you will need to use your own data Standard SIM card.

  • Page 2: Hardware Connection

    Connection Connect the supplied RLCAB170 cable from the bottom Hirose connector on the unit to the 'bottom CAN/Serial port' of the VBOX Touch RTK. The VBOX Touch RTK external antenna must be connected to receive NTRIP RTK corrections. https://en.racelogic.support//Product_Info/Telemetry_Systems/NTRIP_Modem/NTRIP_Modem_User_Guide/03_- _NTRIP_Modem_Connection...
  • Page 3 2. Access the 'Serial Port Settings' screen by swiping the the screen left or by using the Forward arrow on the bottom right of the screen. 3. Navigate to 'RTK Input', enable 'NTRIP Mode' and change the DGPS Baud Rate to '115200' by pressing on the corresponding button next to the options.
  • Page 4 'GNSS Selection' within the 'General Settings' screen. More information on this is available here. VBOX 3i RTK Connection Connect the supplied RLCAB170 cable from the bottom Hirose connector on the unit to the 'CAN' port of the VBOX 3i RTK. https://en.racelogic.support//Product_Info/Telemetry_Systems/NTRIP_Modem/NTRIP_Modem_User_Guide/03_- _NTRIP_Modem_Connection...
  • Page 5 Note: A CAN Splitter RLVBACS024 or CAN Hub can be used to facilitate the connection of the NTRIP Modem and VBOX Manager at the same time if required. Configuration VBOX 3i RTK must have the correct DGPS mode enabled in VBOX Setup or VBOX Manager before it is capable of receiving and using the DGPS correction information transmitted by the Network RTK Service Provider.
  • Page 6 VBOX Setup software. 2. Go to the 'GPS' page. 3. Under the DGPS / RTK section, select 'NTRIP' from the available options. 4. Select '115200' in the available options for the RS232 baud rate. 5. Select 'Write to unit'. VBOX Manager 1.
