14140 NE 200th ST. • Woodinville, WA. 98072 • PH: (425) 398-8282 • FX: (425) 398-8383

Procedure: Keypad replacement for the Ioline FlexJet

Tools Required:

Phillips screwdriver

Notices:

Attention! The discharge of static electricity may damage the keypad and components. Use the

included ground strap during all procedures. Keep plastic objects away from the keypad and logic

board assemblies.

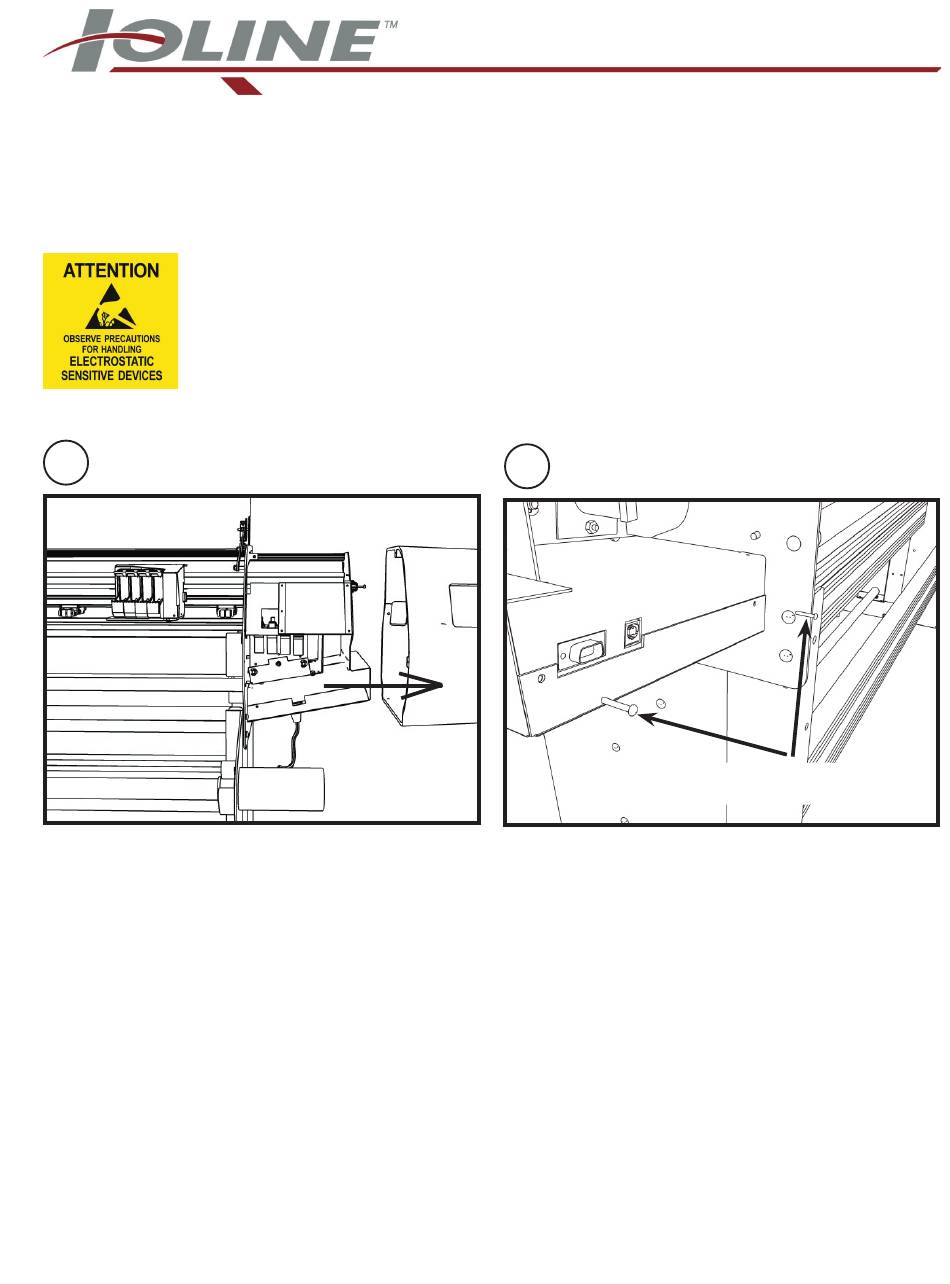

Removing the end cover

A) Turn the FlexJet off and un-plug the power cord

from the back of the machine.

B) Unplug the roll feed motor under the right end

cover.

C) Remove the 5 screws that hold the plastic end

cover on to the right end of the printer. There

are two on the ﬂat surface of the endplate,

one screw in the back, and 2 screws on the

bottom.

D) Pull the cover to the right and off the machine

then set it aside.

Removing the PCB Cover

A) Remove the 4 screws that attach the bottom 'PCB

Cover' on the right side of the machine

B) Unplug the old keypad from the logic board.

C) Leave the bottom cover off for now.

P/N: 109076 R0

Remove PCB cover screws

front and back

Page 1 Removing the PCB Cover Remove PCB cover screws front and back A) Turn the FlexJet off and un-plug the power cord A) Remove the 4 screws that attach the bottom ‘PCB from the back of the machine. Cover’ on the right side of the machine B) Unplug the roll feed motor under the right end cover.
Page 2 14140 NE 200th ST. • Woodinville, WA. 98072 • PH: (425) 398-8282 • FX: (425) 398-8383 Removing the old keypad. Removing the old keypad bracket. Keypad Bracket Remove Nuts Keypad Screws A) Remove the (4) four black phillips screws from the A) Remove the old keypad bracket by removing the keypad and remove the keypad from the machine.
Page 3 B) When you think all the connections are correct plug in and power on the FlexJet to make sure it operates properly. C) When the machine is back to normal operation install all the covers on the machine.
