Technical Bulletin

To remove paper jammed under a drive shaft segment:

1.
Turn off the Ioline 600H/28H, unplug data and power cables.
2.

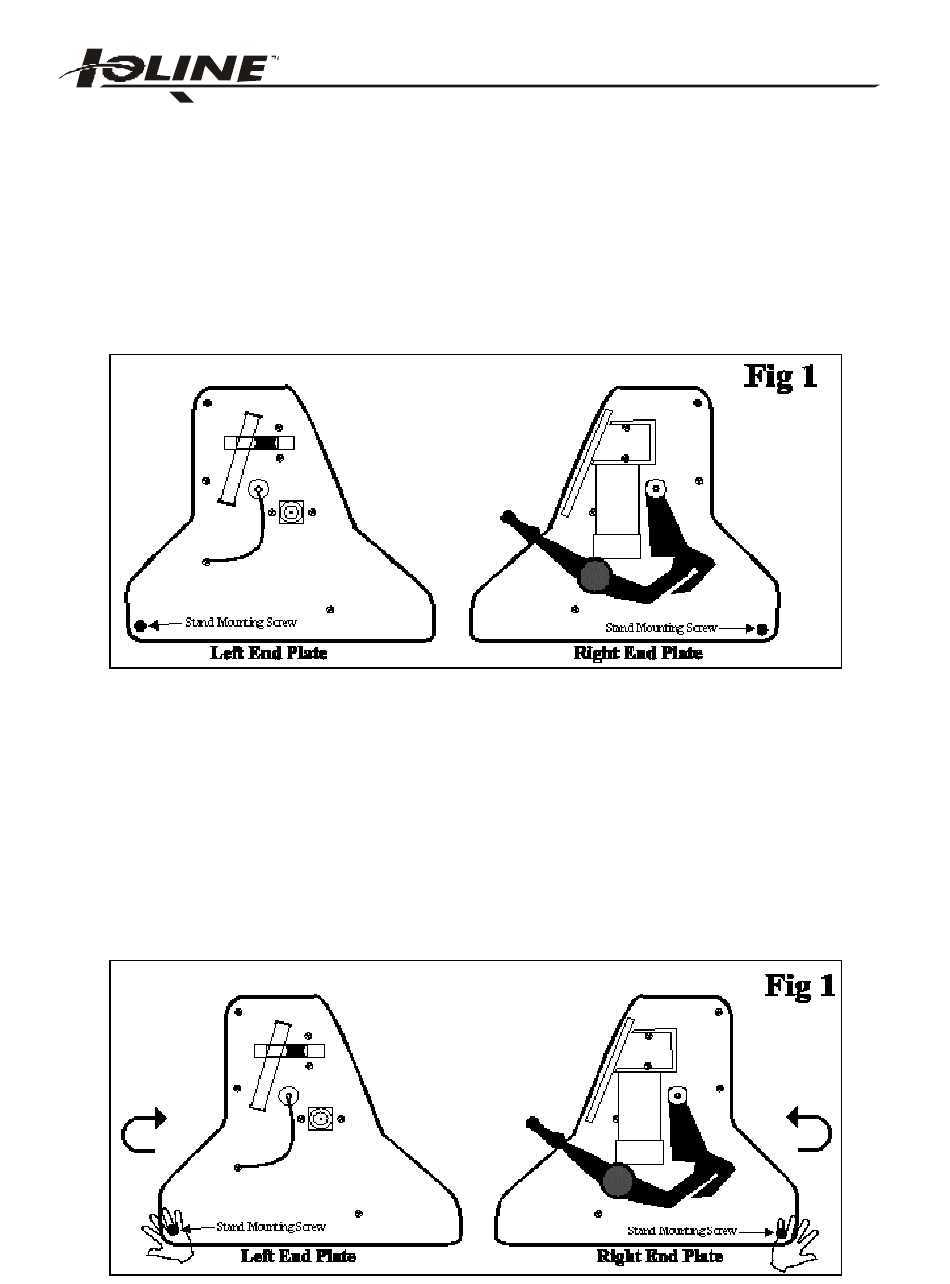

Remove the rear stand mounting screws that fasten the plotter head to the stand
(Fig. 1).
3. Position 2 people at each end of the machine.
4. Have each person grab the end plate near the mounting screw, which you just
removed.
5. Carefully, lift from the bottom and rotate the plotter head towards the front. The
machine should rest forward while on the stand (Fig. 1).
DO NOT LIFT THE MACHINE FROM THE REAR BY THE SILVER BAR! THIS WILL CAUSE
THE BAR TO BEND!
Paper Jam/
Ioline 600H or 28H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 600H and is the answer not in the manual?

Questions and answers

Summary of Contents for Ioline 600H

  • Page 1 Paper Jam/ Ioline 600H or 28H To remove paper jammed under a drive shaft segment: Turn off the Ioline 600H/28H, unplug data and power cables. Remove the rear stand mounting screws that fasten the plotter head to the stand (Fig. 1).
  • Page 2 Remove the logic board, which is located on the keypad side of the machine. Note all cable connections. Locate the gritshaft bearing clip tension screws. Note: These screws are normally tightened with a torque screwdriver. In order to tension the screws properly after the procedure, mark the threads with tape to you know how far to screw them back in.
  • Page 3 Gently rotate the machine back to its normal resting position; be very careful not to drop the machine. Refasten stand-mounting screws. The procedure is now complete.
